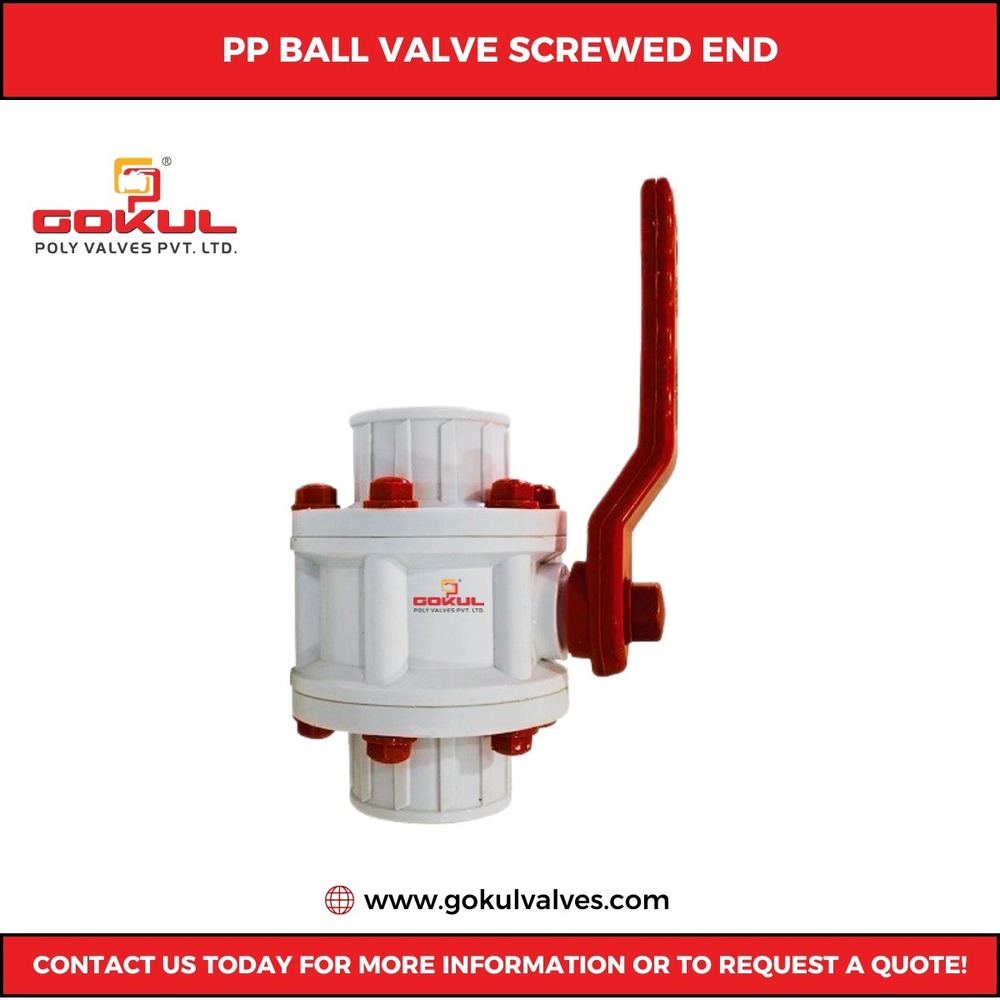

pp ball valve 2"

Get a Price/Quote

pp ball valve 2" Specification

Coating Type
PP Coated

Temperature Range
80 Deg. Celsius (oC)

Application
Industrial & Water Application

Material
PP

Port Size
1/2" To 12"

Flexibility
Flexible

Material Grade
PE 100

Sealing Type
PP Seal

Capacity
10 KG Kg

Shape
Round

Diameter
1/2" To 12" Inch (in)

End Type
Threaded

Surface Finish
Polished

Working Presssure
10 Kg

Fittings
Elbows, Tees, Reducers, Couplings, Flanges, Caps Nipples, Valves

Thread Type
BSP Threaded

Dimension (L*W*H)
1/2" To 12" Inch (in)

Features
chemical resistance and durable

Corrosion Resistant
Excellent Corression Resistance

Tolerance
1/2" To 12" Inch

Tensile Strength
High

Pressure Ratings
10 KG

Connection Type
Flanged

Usage
Industrial & Water Application

Pipe Type
PP

Product Type
Other

Connection
Other

Standard
ANSI

Surface Treatment
Other

Outer Diameter
1/2" to 12" Inch (in)

Section Shape
Round

Thickness
3 To 5 MM Millimeter (mm)

Color
White

Rated Pressure
10 KG

pp ball valve 2" Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About pp ball valve 2"

Technical Specification Material Of Construction PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride) Construction 3 piece design, 1 piece stem (spindle), full bore, Teflon seated Design 3 piece design Test pressure 08 kg./cm2 Max working temp 70 c (consistently) Size Range " 15MM TO 12-315MM Connection End Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD. Standard As per manufacturers Material Specification No. DESCRIPTION QTY. MATERIAL 1) Flanged end 2 PP / HDPE & PVDF 2) Body 1 PP / HDPE & PVDF 3) Ball 1 PP & PVDF 4) Stem/Spindal 1 Polypropylene With M.S. /S.S 5) Seat Ring 2 PTFE (TEFLON) 6) Body"O"Ring 2 Neoprene 7) Stem Seal Ring 1 PTFE (TEFLON) 8) Stem "O" Ring 1 Neoprene 9) Stud, Nut & Washer REQ M.S. Zinc Plated/S.S 10) Nut Cap REQ Polypropylene. 11) Handle 1 M.S. PP Coated. 12) Handle Hex. Pin 1 M.S./ S.S. 13) Handle Cap 1 Polypropylene.
