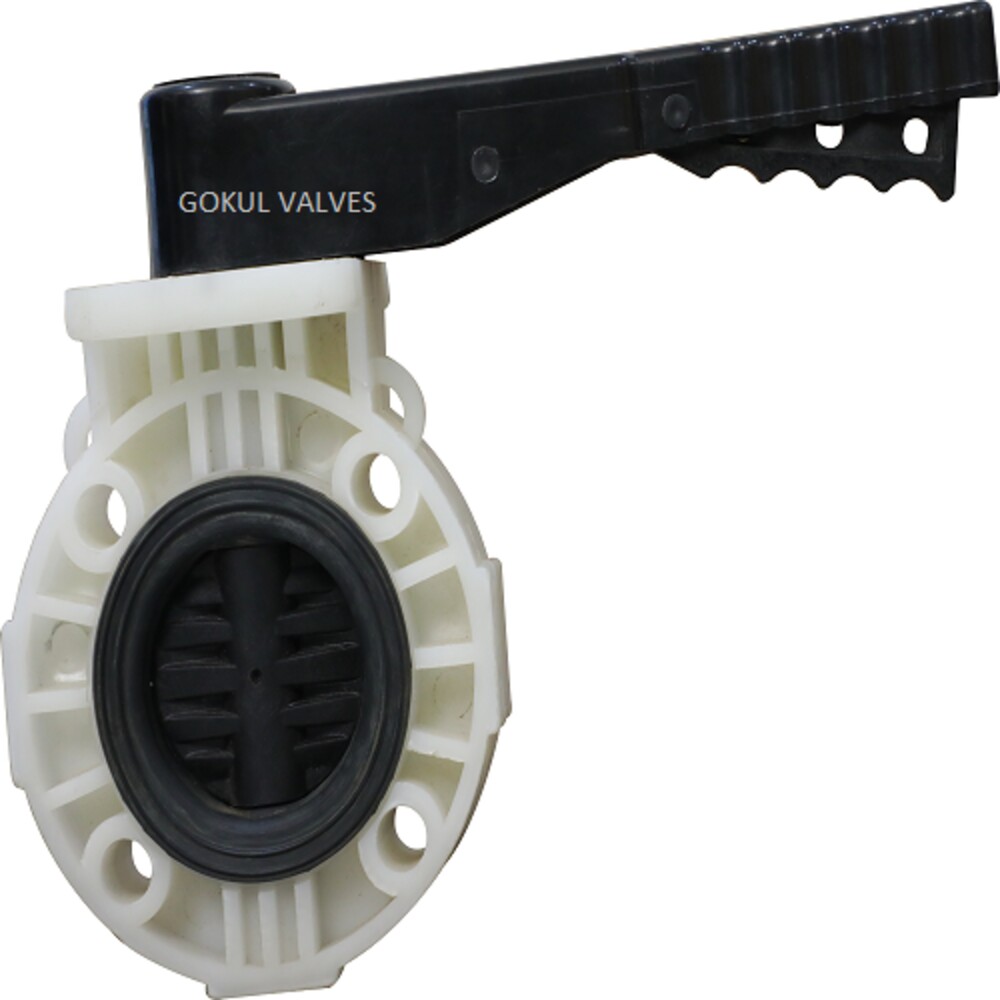

Gokul Polypropylene Butterfly Valve Gear Box Operated

About Gokul Polypropylene Butterfly Valve Gear Box Operated

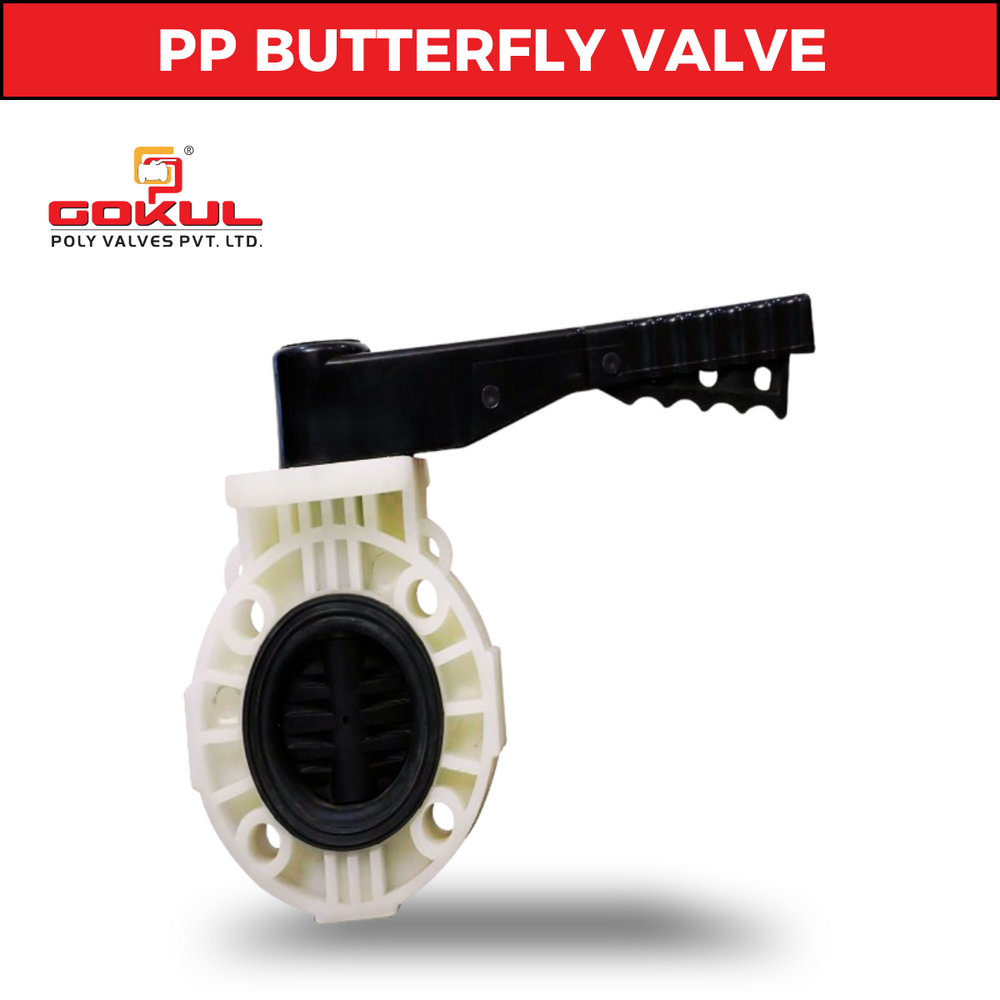

PP Butterfly Valve

By Gokul Poly Valves Pvt. Ltd.

At Gokul Poly Valves, we offer high-quality PP Butterfly Valves designed for efficient regulation and isolation of fluid flow in various industrial applications. Manufactured from premium-grade polypropylene (PP), our valves provide excellent chemical resistance, durability, and reliability even under harsh working conditions.

Product Features:

• Body Material: Virgin Polypropylene (PP)

• Available Sizes: 2 to 12 (50mm to 300mm)

• Operating Pressure: Up to 10 kg/cm

• Temperature Range: Up to 80C

• Operation: Manual handle / Gear / Pneumatic actuator available

• Connection Type: Flanged ends (as per ANSI / DIN / IS standards)

Key Advantages:

• Excellent resistance to acids, alkalis, and chemicals

• Lightweight and corrosion-proof construction

• Smooth quarter-turn operation for flow control

• Leak-proof sealing with durable EPDM or Viton liner

• UV-resistant and suitable for outdoor installation

• Long service life with minimal maintenance

Applications:

• Chemical processing plants

• Effluent & wastewater treatment plants

• Agriculture and irrigation systems

• Water supply and distribution

• Pharmaceutical and food-grade pipelines

• Pulp & paper and textile industries

 Related Products:

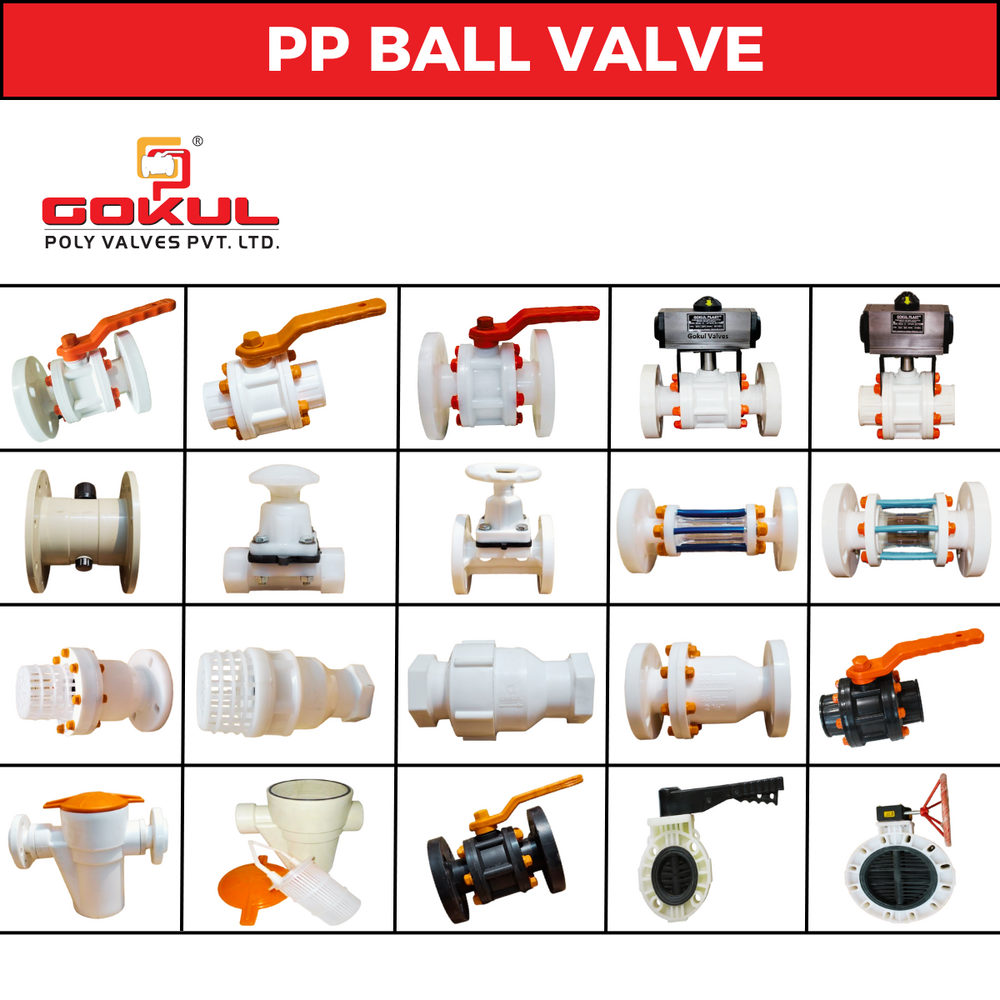

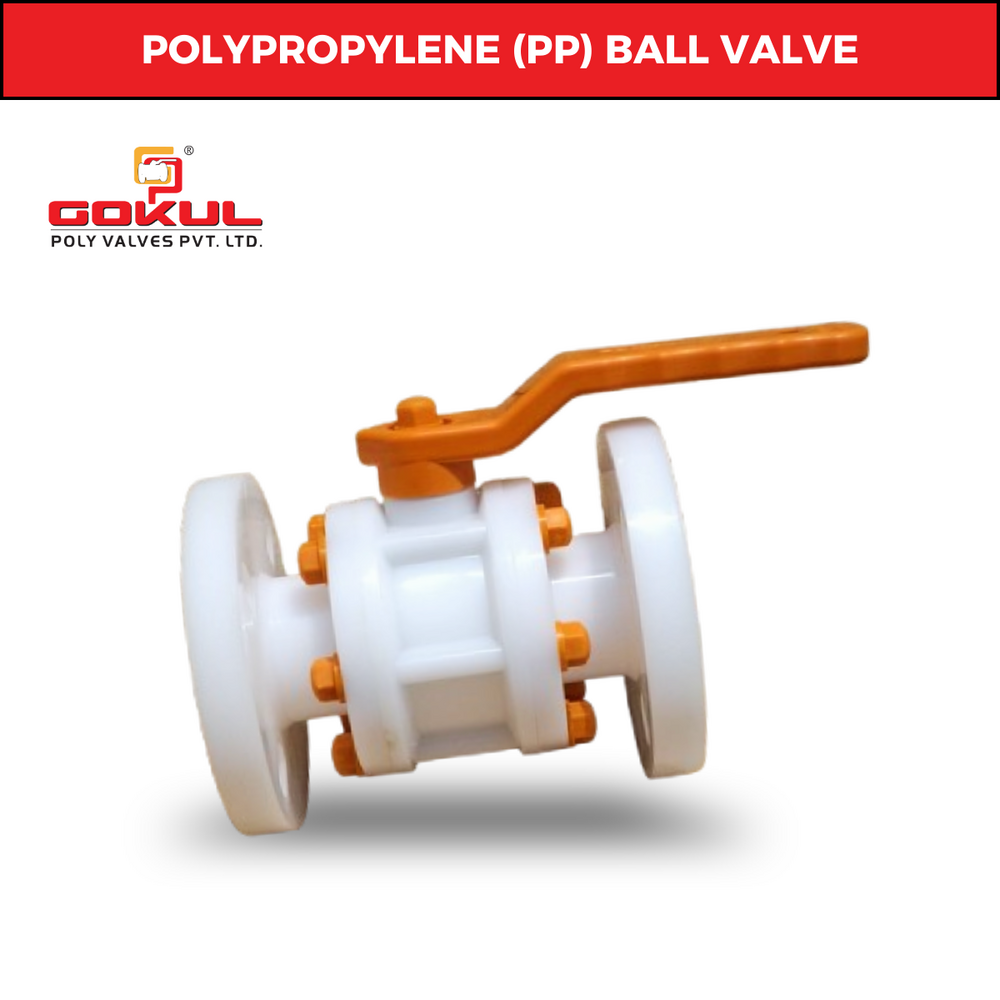

• PP Ball Valve

• PP Diaphragm Valve

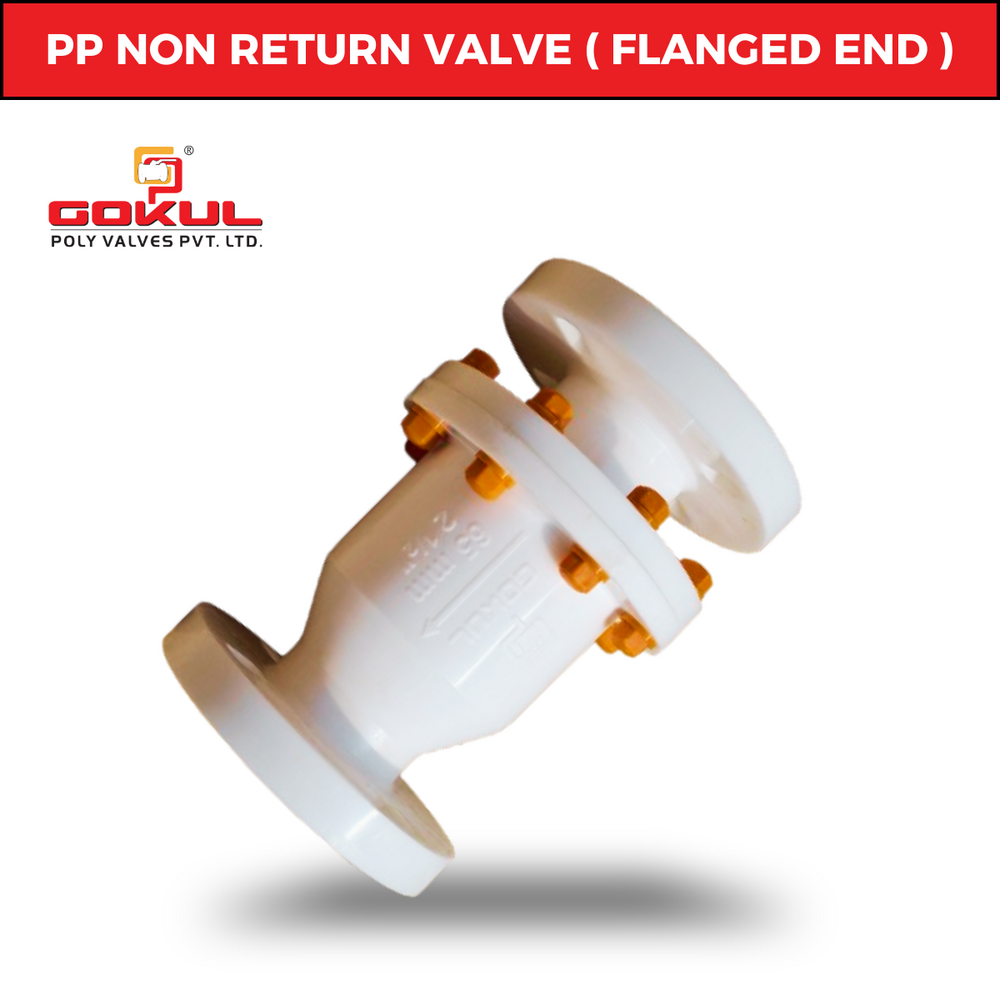

• PP Non-Return Valve (NRV)

• PP Y-Strainer

• PP Flanges and Pipe Fittings

Material Of Construction	PP (Polypropylene)	Construction	One piece body
Design	Waffer dise design	Test pressure	10kg upto 4 6kg above 4
Max working temp	70 c (consistently)	Size Range	2-50MM TO 12-315MM
Connection End	Flanged as per ANSI B 16.5 (150#)	Standard	As per manufacturer

Material Specification

No.	DESCRIPTION	MATERIAL	QTY.
1)	Body	Polypropylene	1
2)	Disk	Polypropylene	1
3)	Stem "O" Ring.	Neoprene Rubber	2
4)	Stem	S.S.	1
5)	Hinge pin	S.S.	1
6)	Cap	S.S.	1
7)	Hundle	Polypropylene	1
8)	Spring	S.S.	1
9)	Hundle pin	S.S.	1
10)	Positioner lever	S.S.	1
11)	Handle cap	Polypropylene	1
12)	Positioner plater	S.S.	1

Robust Construction and Material Quality

Constructed from premium polypropylene, the Gokul Butterfly Valve ensures resistance to corrosion and chemical attack, making it suitable for challenging industrial and water applications. Its durable plastic body guarantees lasting performance against high pressures and varying fluid conditions, while the white finish provides easy identification and aesthetic appeal in installation environments.


Operational Versatility and Size Range

This valve is engineered for user flexibility, offering both hand lever and gear box operation for convenient flow control. With port sizes from 2" to 12", the valve accommodates a wide array of piping systems, ensuring compatibility with diverse industrial processes and water distribution networks.

FAQs of Gokul Polypropylene Butterfly Valve Gear Box Operated:

Q: How is the Gokul Polypropylene Butterfly Valve operated?

A: The valve offers dual operationeither by hand lever or through a gear box mechanism, giving users flexible control options depending on application requirements or preferred ease of use.

Q: What are the main benefits of using a polypropylene butterfly valve in industrial applications?

A: Polypropylene construction provides exceptional resistance to corrosion and chemicals, ensuring longevity and reliability even in aggressive process environments or water treatment systems.

Q: Where can this butterfly valve be installed?

A: It is ideal for both industrial process lines and water management systems, fitting perfectly in environments requiring robust medium-pressure valves and reliable shutoff or flow regulation.

Q: What is the maximum temperature and pressure this valve can handle?

A: The valve supports media temperatures up to 80C and operates effectively under medium pressure conditions, making it suitable for a variety of water and industrial fluid applications.

Q: What is the installation process for the Gokul Polypropylene Butterfly Valve?

A: Installation involves connecting the valve to the piping system using provided port sizes (from 2 to 12), and selecting either hand lever or gear box operation as per process requirements.

Q: When should you choose a gear box operated butterfly valve over a hand lever model?

A: A gear box operated butterfly valve is preferable for larger sizes or systems with higher operational torque, as it provides smoother operation and precise control for demanding flow adjustment.
