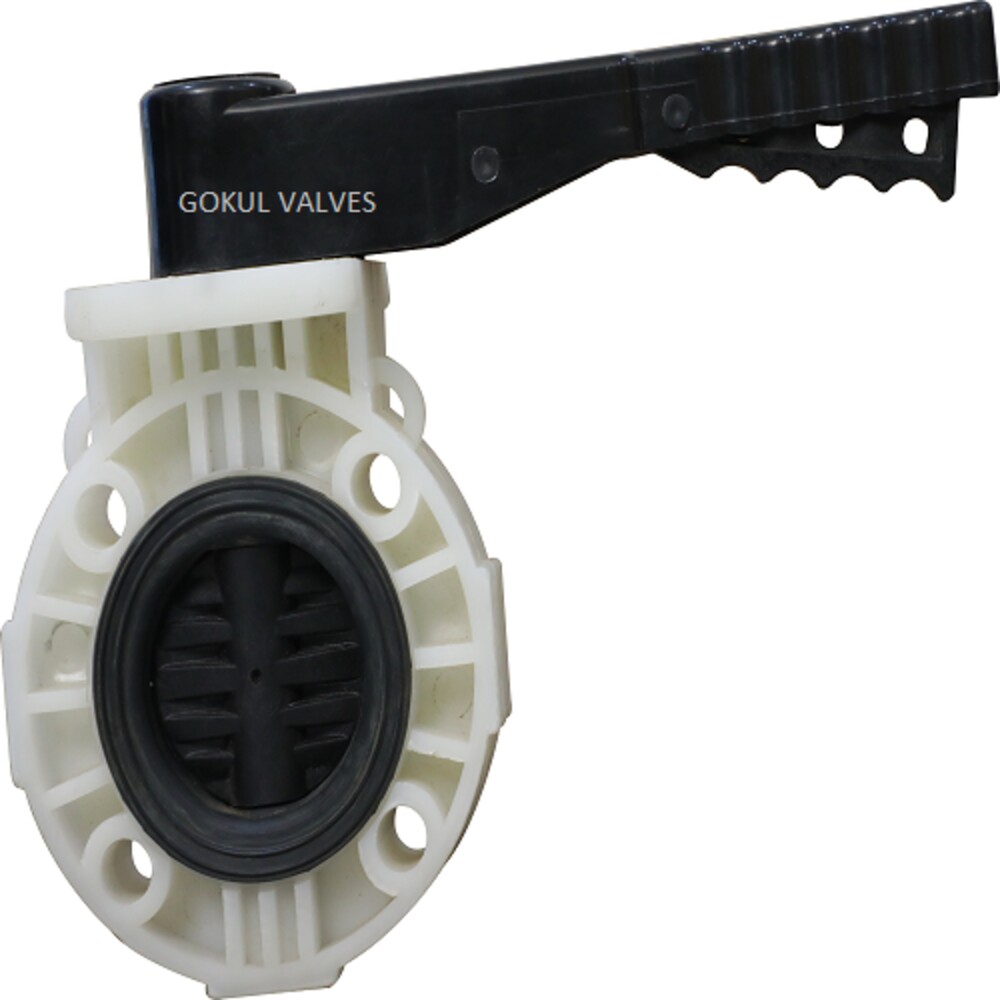

Gokul PP Butterfly Valve Gear Box Operated

About Gokul PP Butterfly Valve Gear Box Operated

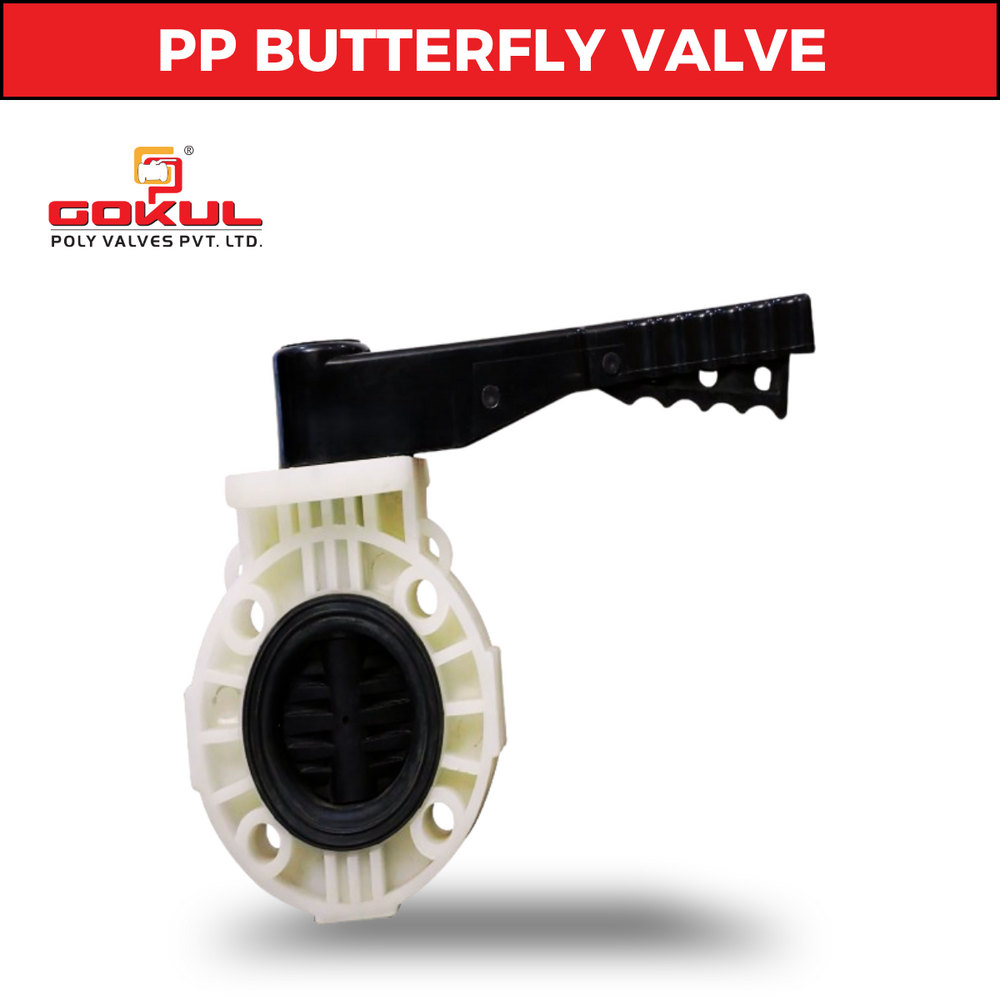

PP Butterfly Valve

By Gokul Poly Valves Pvt. Ltd.

At Gokul Poly Valves, we offer high-quality PP Butterfly Valves designed for efficient regulation and isolation of fluid flow in various industrial applications. Manufactured from premium-grade polypropylene (PP), our valves provide excellent chemical resistance, durability, and reliability even under harsh working conditions.

Product Features:

• Body Material: Virgin Polypropylene (PP)

• Available Sizes: 2 to 12 (50mm to 300mm)

• Operating Pressure: Up to 10 kg/cm

• Temperature Range: Up to 80C

• Operation: Manual handle / Gear / Pneumatic actuator available

• Connection Type: Flanged ends (as per ANSI / DIN / IS standards)

Key Advantages:

• Excellent resistance to acids, alkalis, and chemicals

• Lightweight and corrosion-proof construction

• Smooth quarter-turn operation for flow control

• Leak-proof sealing with durable EPDM or Viton liner

• UV-resistant and suitable for outdoor installation

• Long service life with minimal maintenance

Applications:

• Chemical processing plants

• Effluent & wastewater treatment plants

• Agriculture and irrigation systems

• Water supply and distribution

• Pharmaceutical and food-grade pipelines

• Pulp & paper and textile industries

 Related Products:

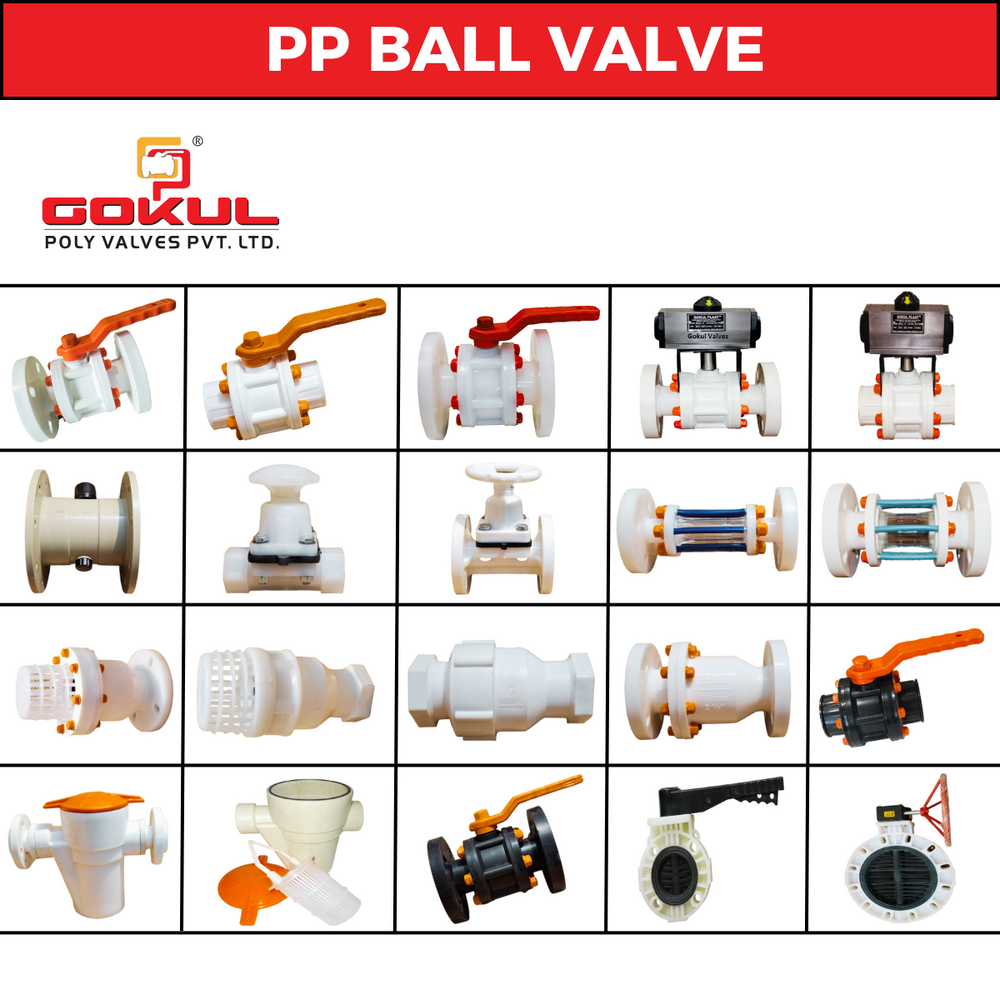

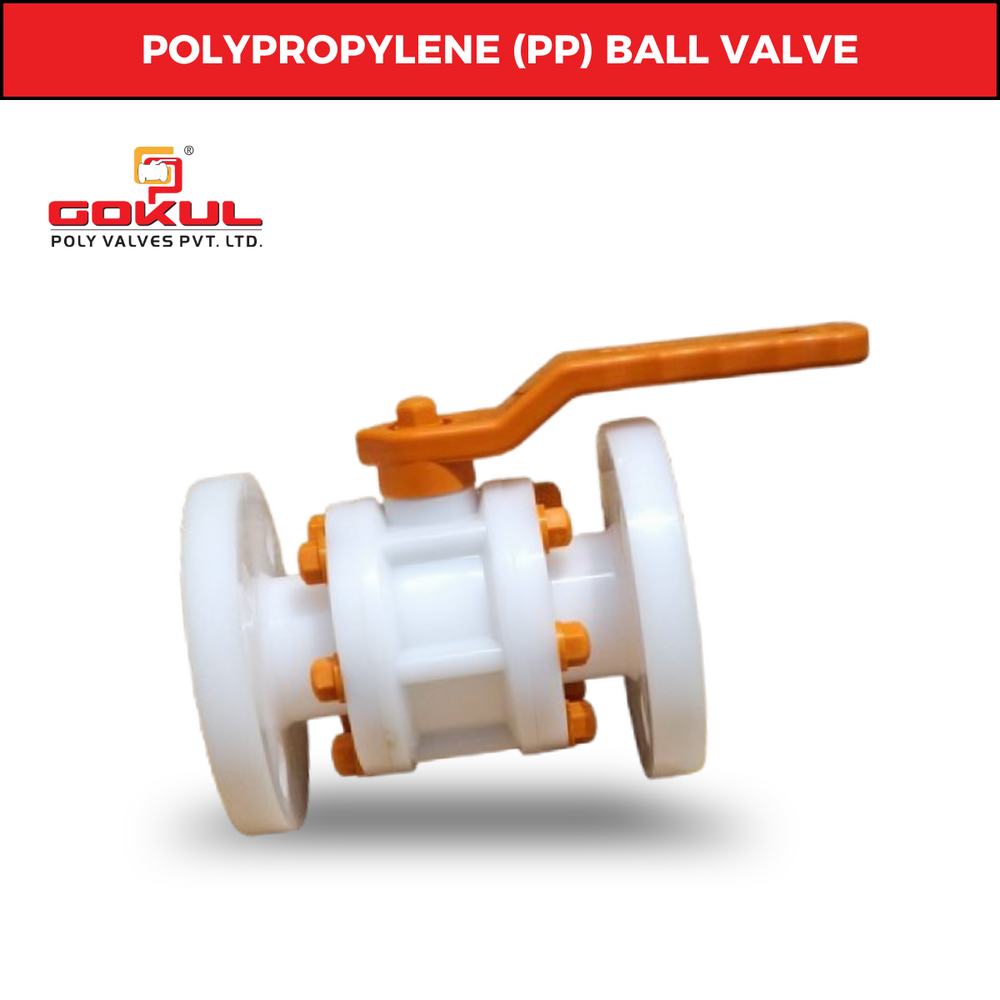

• PP Ball Valve

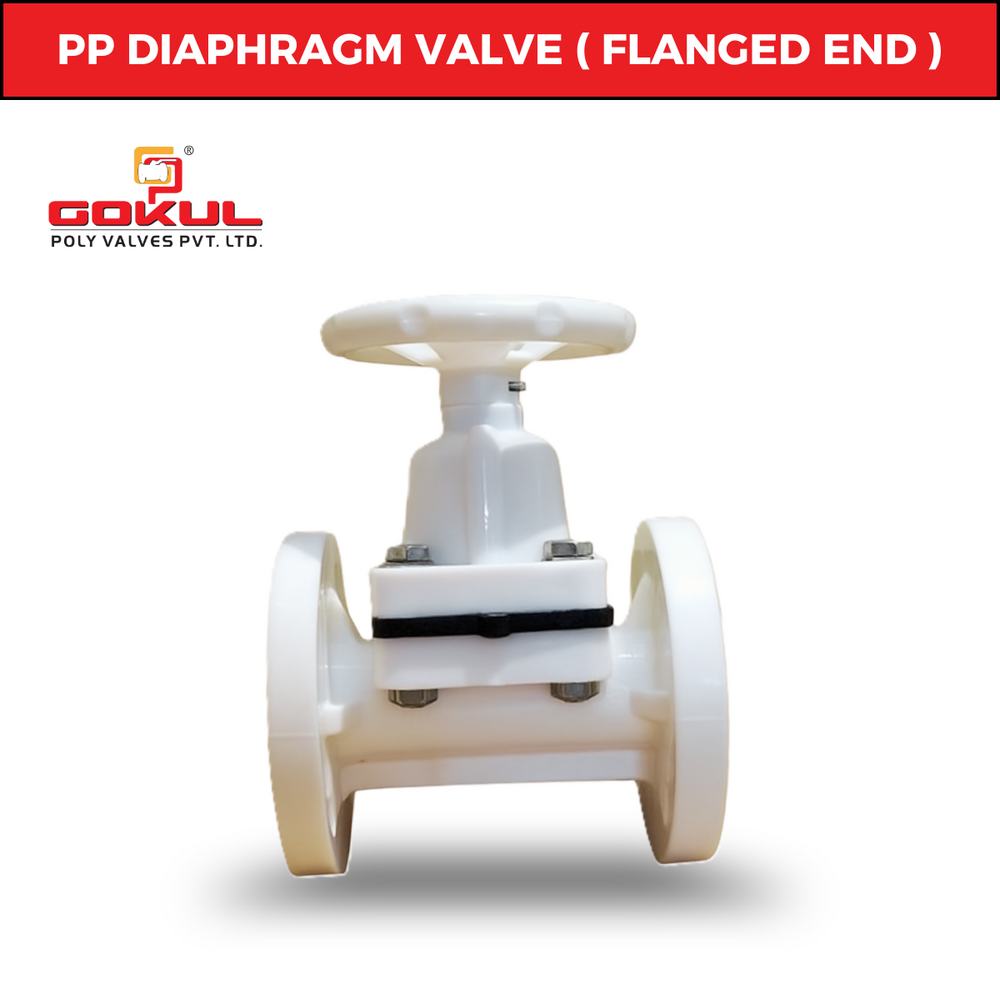

• PP Diaphragm Valve

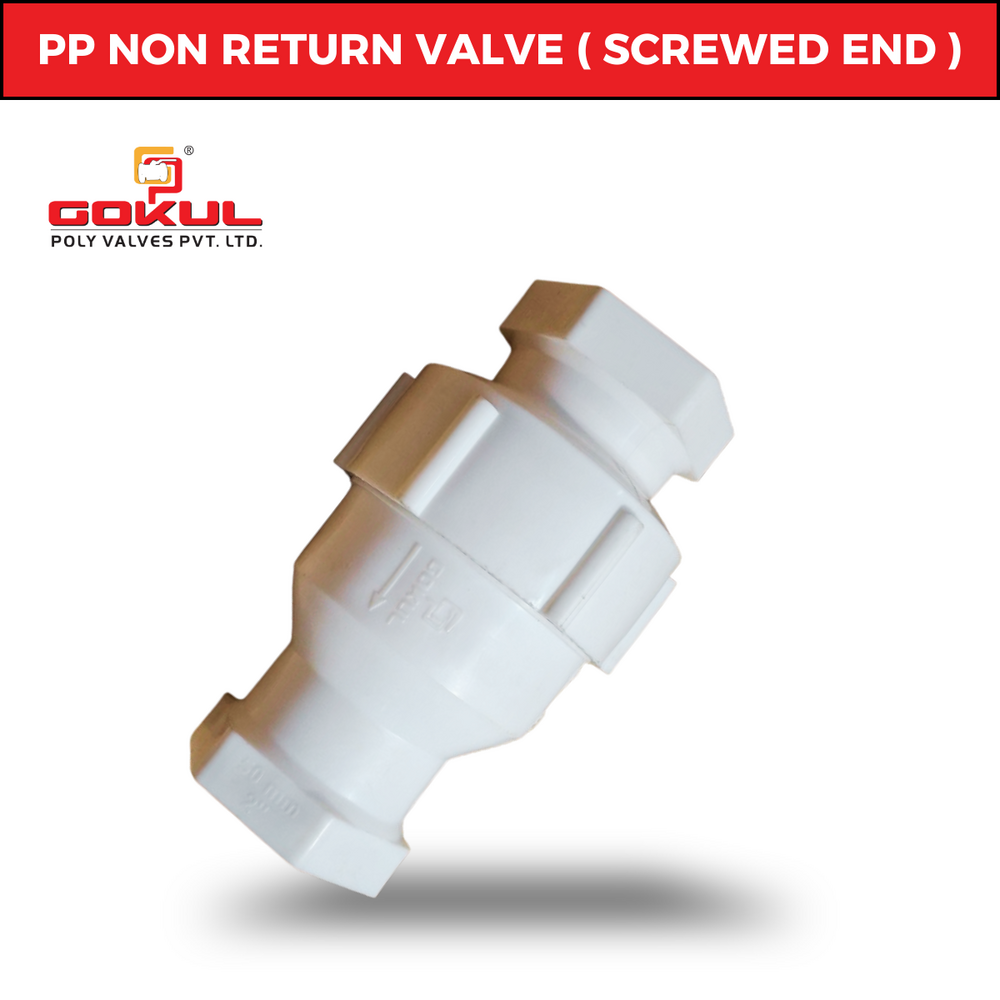

• PP Non-Return Valve (NRV)

• PP Y-Strainer

• PP Flanges and Pipe Fittings

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	One piece body
Design	Waffer dise design	Test pressure	10kg upto 4 6kg above 4
Max working temp	70 c (consistently)	Size Range	2-50MM TO 12-315MM
Connection End	Flanged as per ANSI B 16.5 (150#)	Standard	As per manufacturer

Material Specification

No.	DESCRIPTION	MATERIAL	QTY.
1)	Body	Polypropylene	1
2)	Disk	Polypropylene	1
3)	Stem "O" Ring.	Neoprene Rubber	2
4)	Stem	S.S.	1
5)	Hinge pin	S.S.	1
6)	Cap	S.S.	1
7)	Hundle	Polypropylene	1
8)	Spring	S.S.	1
9)	Hundle pin	S.S.	1
10)	Positioner lever	S.S.	1
11)	Handle cap	Polypropylene	1
12)	Positioner plater	S.S.	1

Precision Control with Gear Box Operation

The gear box operated mechanism of this butterfly valve ensures precise flow regulation, allowing for smooth and controlled opening and closing. This design minimizes manual effort and enhances safety, making these valves an ideal choice for demanding industrial and water distribution applications where accurate control is crucial.


Durable Construction for Long-Lasting Performance

Crafted from premium polypropylene (PP) and plastic components, the Gokul Butterfly Valve is engineered to resist corrosion and withstand harsh media. Its sturdy structure ensures longevity and minimal maintenance, even when exposed to challenging environments or continuous operational cycles.


Versatility Across Applications and Markets

These valves are designed for medium-pressure systems and can be installed in a wide range of settings, from industrial plants to municipal water projects. Available in port sizes from 2" to 12" and supporting both hand lever and gear operation, they provide the flexibility required by manufacturers, suppliers, and service providers across the domestic and export markets.

FAQs of Gokul PP Butterfly Valve Gear Box Operated:

Q: How does the gear box mechanism improve the operation of the Gokul PP Butterfly Valve?

A: The gear box mechanism allows for easier and more controlled adjustment of the valve, reducing manual force and ensuring precise positioning for optimal flow regulation in water and industrial applications.

Q: What are the suitable environments for installing this butterfly valve?

A: This valve is ideal for medium-pressure water and industrial environments. It can be reliably used in water treatment plants, distribution networks, and various industrial systems requiring chemical resistance and durability.

Q: When should maintenance be performed on the Gokul PP Butterfly Valve?

A: Regular inspection is recommended every six months, especially if the valve operates in demanding or continuous-use settings. Prompt attention should be given to signs of wear or leakage to ensure longevity and performance.

Q: Where can this valve be sourced or installed?

A: Gokul PP Butterfly Valves are available through domestic and export channels directly from Gokul Poly Valves Pvt Ltd, including service provider and supplier networks across India and international markets.

Q: What is the installation process for the gear box operated butterfly valve?

A: Installation involves securing the valve between flanges in the pipeline, properly aligning the gear box operation mechanism, and ensuring all connections are leak-tight. Manufacturer guidelines should be followed for optimal results.

Q: How is this valve typically used in industrial and water applications?

A: This valve is commonly used for controlling the flow of water and compatible fluids in treatment plants, industrial processing, and distribution systems, providing reliable shut-off and modulation capabilities.

Q: What are the primary benefits of choosing this polypropylene butterfly valve?

A: The valve offers excellent corrosion resistance, ease of operation with gear control, wide applicability across port sizes, and durability for both domestic and export uses, minimizing the need for frequent replacement or repair.
