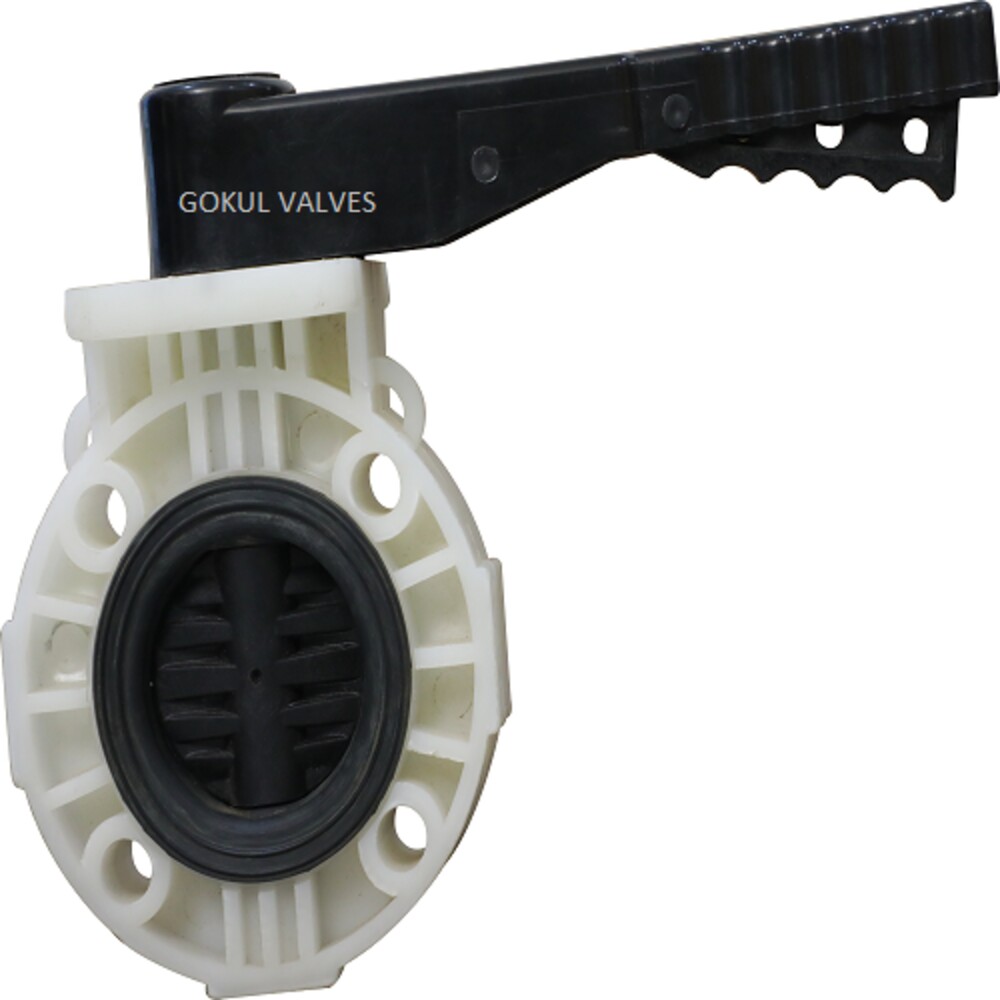

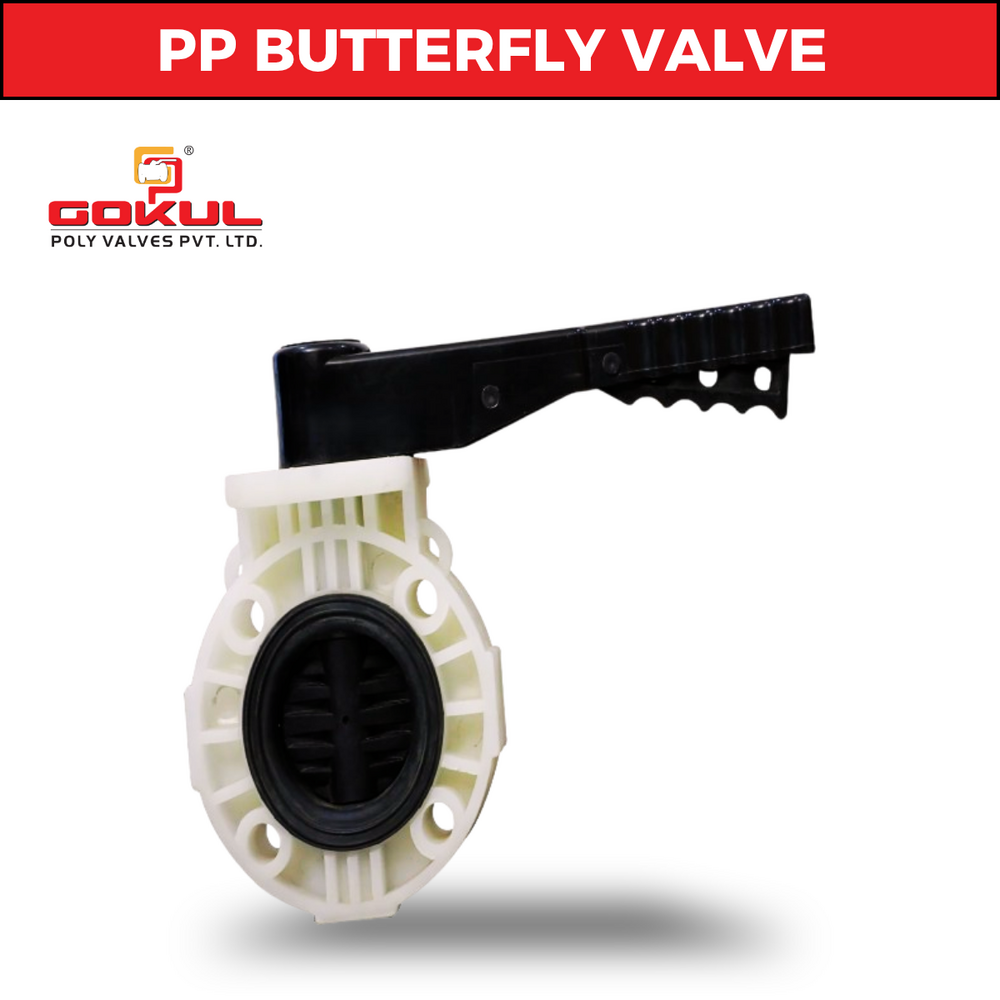

Polypropylene Butterfly Valve Gear Operated

About Polypropylene Butterfly Valve Gear Operated

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	One piece body
Design	Waffer dise design	Test pressure	10kg upto 4 6kg above 4
Max working temp	70 c (consistently)	Size Range	2-50MM TO 12-315MM
Connection End	Flanged as per ANSI B 16.5 (150#)	Standard	As per manufacturer

Material Specification

No.	DESCRIPTION	MATERIAL	QTY.
1)	Body	Polypropylene	1
2)	Disk	Polypropylene	1
3)	Stem "O" Ring.	Neoprene Rubber	2
4)	Stem	S.S.	1
5)	Hinge pin	S.S.	1
6)	Cap	S.S.	1
7)	Hundle	Polypropylene	1
8)	Spring	S.S.	1
9)	Hundle pin	S.S.	1
10)	Positioner lever	S.S.	1
11)	Handle cap	Polypropylene	1
12)	Positioner plater	S.S.	1

Durable Polypropylene Construction

Constructed from high-quality polypropylene, this butterfly valve is corrosion-resistant, making it a robust choice for both water and industrial applications. Its white finish ensures longevity and minimal upkeep, even in harsh environments.


Versatile Operation and Port Sizes

The valve is available with either hand lever or gear-operated mechanisms, enabling straightforward control. With port sizes ranging from 2 inches to 12 inches, it accommodates various pipe diameters common in industrial and domestic water systems.


Reliable Performance Under Medium Pressure

Designed for media at temperatures up to 80C and medium pressure conditions, this butterfly valve ensures consistent and leak-free performance. It is well-suited for a range of sectors requiring dependable flow management.
