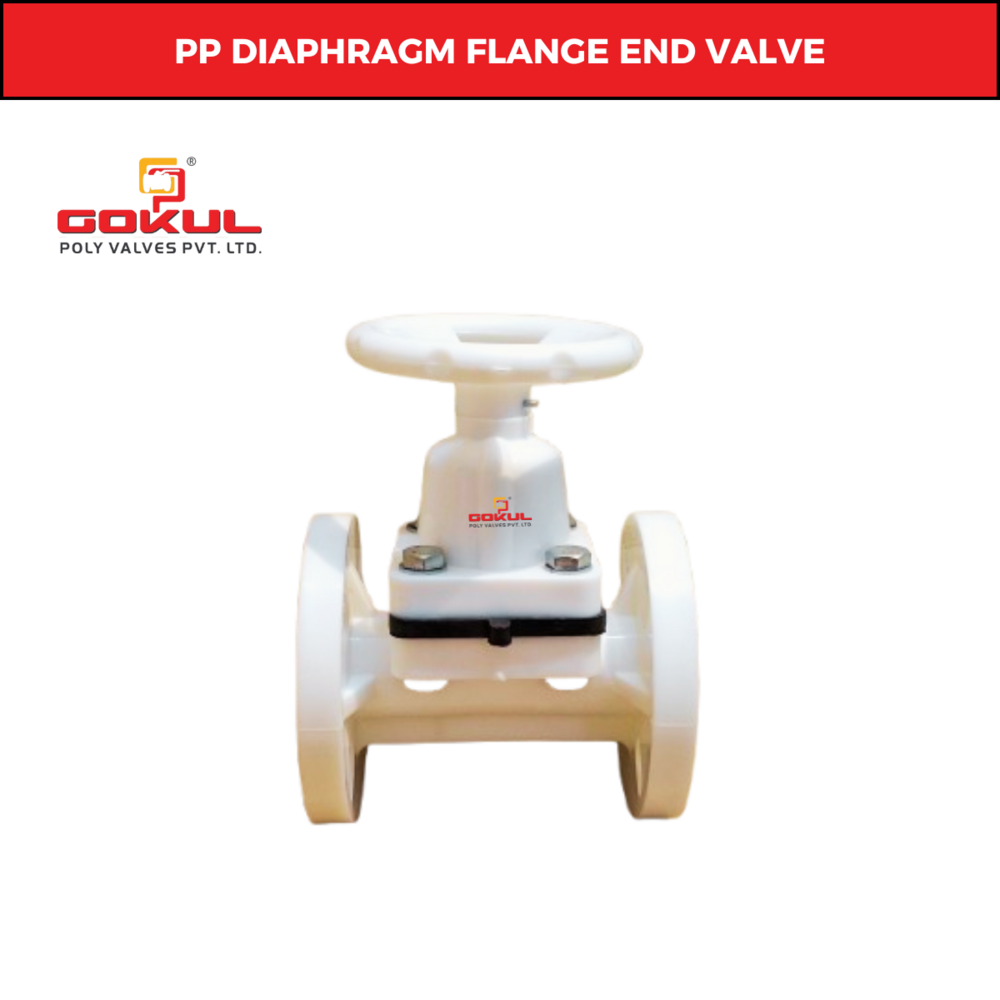

Gokul polypropylene Diaphragm Flange End Valve 3/4"

Price 410 INR/ Number

Get a Price/Quote

Gokul polypropylene Diaphragm Flange End Valve 3/4" Specification

  • Channels
  • Intentional & Domestic Market
  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Connection
  • Flanged
  • Pressure
  • Medium Pressure
  • Structure
  • Ball
  • Material
  • Plastic
  • Usage
  • Industrial & Water Application
  • Size
  • 3/4"-20MM
  • Media
  • Water
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Diaphragm Valve Flange End
  • Port Size
  • 3/4"-20MM
  • Flange
  • 150 class
  • Color
  • White
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Gokul polypropylene Diaphragm Flange End Valve 3/4" Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Gokul polypropylene Diaphragm Flange End Valve 3/4"

Technical Specification

Material Of Construction PP (Polypropylene) Construction weir type design,Soft seated, raising stem
Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range 15MM to 150MM Test pressure 6 kg./cm2
Max working temp 70 c (consistently) Standard As per manufacturer

Material Specification

No. DESCRIPTION MATERIAL QTY.
1) Body Polypropylene 1
2) Bonnet Polypropylene 1
3) Hand wheel Polypropylene 1
4) Diaphragm Neoprene Rubber 1
5) Compressor PP 1
6) Stem / Spindel M.S. /Brass 1
7) Nut M.S./ S.S. 1
8) Pin M.S./ S.S. 1
9) Bolt, Nut, Washer M.S./ S.S. REQ
10) Cap Polypropylene 1
Gokul polypropylene Diaphragm Flange End Valve 3/4
Gokul polypropylene Diaphragm Flange End Valve 3/4
Gokul polypropylene Diaphragm Flange End Valve 3/4
Gokul polypropylene Diaphragm Flange End Valve 3/4
Gokul polypropylene Diaphragm Flange End Valve 3/4
Gokul polypropylene Diaphragm Flange End Valve 3/4
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Ball Products Category

Gokul PP Foot Valve Flange End

Gokul PP Foot Valve Flange End

Price 1460 INR / Number

Minimum Order Quantity : 10

Application : industrial and water application

Temperature of Media : 80 Celsius (oC)

Media : Water

Product Type : PP Foot Valve Flange End

Get a Price/Quote
Gokul PP Diaphragm Valve Flanged 6

Gokul PP Diaphragm Valve Flanged 6"

Price 21800 INR / Number

Minimum Order Quantity : 10

Application : industrial and water application

Temperature of Media : 80 Celsius (oC)

Media : Water

Product Type : PP Diaphragm Valve Flange End

Get a Price/Quote
PP Non Return Valve Flanged 6

PP Non Return Valve Flanged 6"

Price 10000 INR / Number

Minimum Order Quantity : 10

Application : industrial and water application

Temperature of Media : 80 Celsius (oC)

Media : Water

Product Type : PP Non Return Valve Flanged

Get a Price/Quote

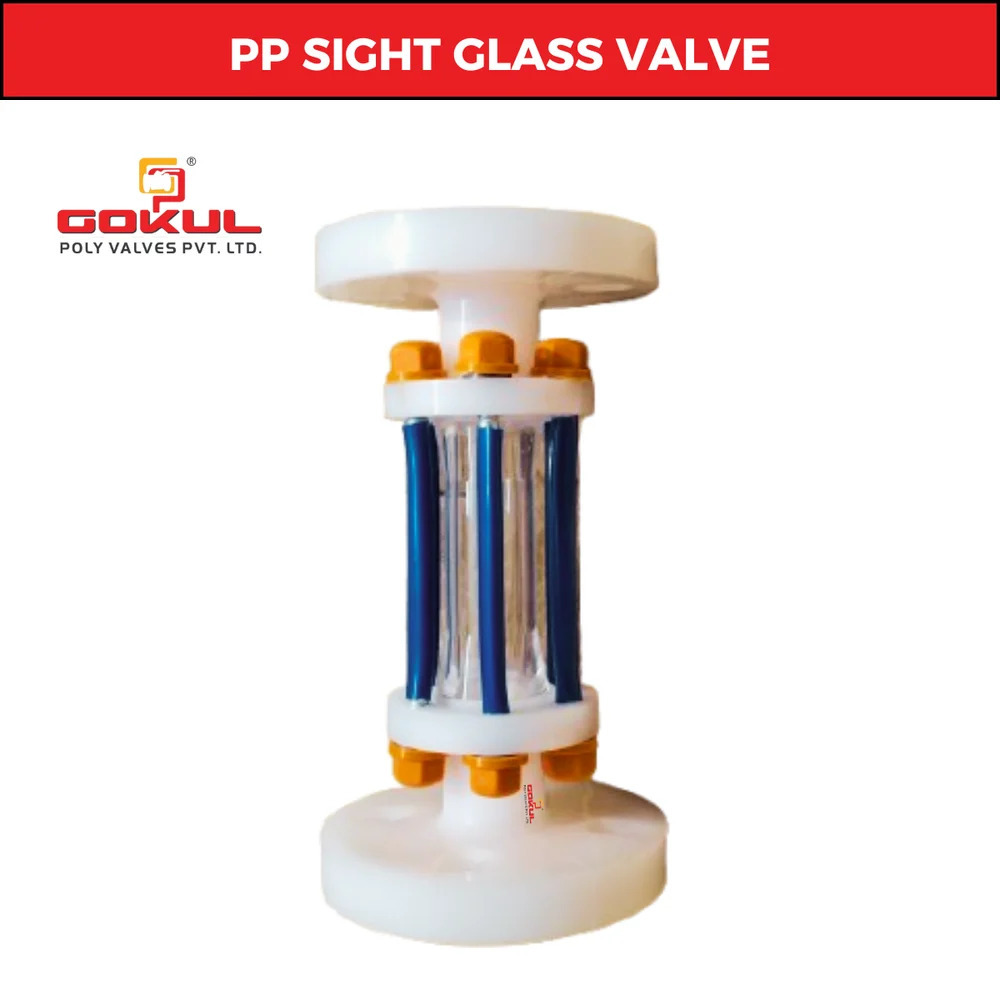

P.P. Sight Glass Flanged Ends
