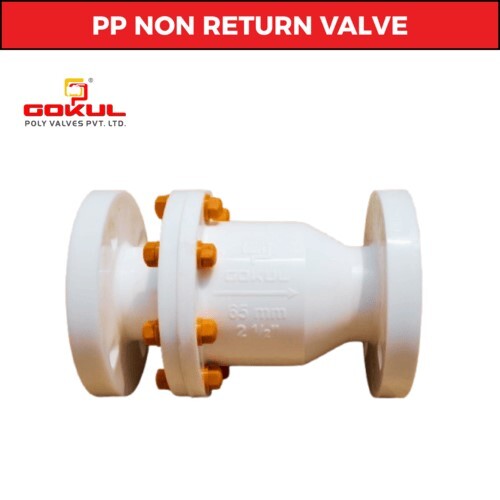

Polypropylene Non Return Valve Flange End

Price 710 INR/ Number

Get a Price/Quote

Polypropylene Non Return Valve Flange End Specification

  • Connection
  • Flanged
  • Channels
  • Intentional & Domestic Market
  • Structure
  • Ball
  • Pressure
  • Medium Pressure
  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Usage
  • Industrial & Water Application
  • Material
  • Plastic
  • Media
  • Water
  • Size
  • 1" To 12"
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Non Return Valve Flanged
  • Port Size
  • 1" To 12"
  • Flange
  • 150 class
  • Color
  • White
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Polypropylene Non Return Valve Flange End Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Polypropylene Non Return Valve Flange End

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Top Body Polypropylene 1 2) Bottom body Polypropylene 1 3) Ball Polypropylene 1 4) Ball Ring Polypropylene 1 5) Seat Ring Neoprene Rubber 1 6) Stud, Nut & Washer SS Req.

FAQs of Polypropylene Non Return Valve Flange End:


Q: What is the size range available for the Polypropylene Non Return Valve Flange End?

A: The Polypropylene Non Return Valve Flange End comes in a size range of 1" to 12".

Q: What material is used to manufacture this valve?

A: The valve is made of plastic with a polypropylene (PP) finish.

Q: What type of connection is used in the Polypropylene Non Return Valve Flange End?

A: The valve utilizes a flanged connection and is designed with a 150 class flange.

Q: What is the maximum temperature the valve can handle?

A: The valve is suitable for media temperatures up to 80C.

Q: What are the primary applications for this valve?

A: The valve is designed for industrial and water applications.

Q: What type of media can this valve be used for?

A: The valve is suitable for use with water media.

Q: What pressure level does the Polypropylene Non Return Valve Flange End support?

A: The valve operates at medium pressure levels.
