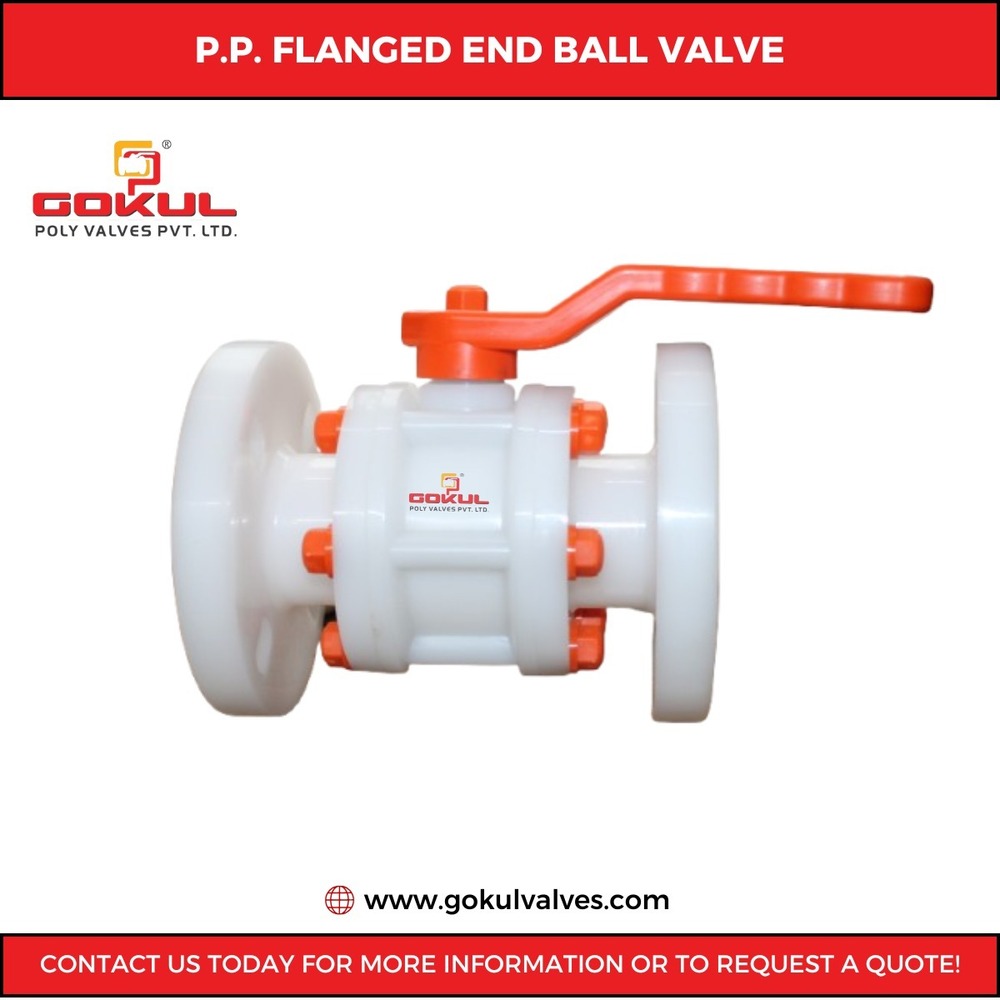

Gokul Polypropylene Flanged Ball Valve

About Gokul Polypropylene Flanged Ball Valve

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12ïï-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Robust Construction for Reliable Operations

Crafted from polypropylene, the Gokul flanged ball valve resists corrosion and is designed for sustained medium-pressure use. Its reinforced structure and quality finish enhance durability, making it suitable for industrial and water applications. The flanged connection secures seamless integration with existing pipelines, reducing maintenance needs and ensuring long-term reliability.


Versatile Sizing for Diverse Installations

Available in sizes from 1/2" to 12", this ball valve provides flexibility for various installation requirements. The port size range accommodates both small domestic systems and large industrial setups. A class 150 flange facilitates compatibility with standardized systems, allowing for simple upgrades and replacements.


Expert Manufacturing and Global Reach

Produced by Gokul Poly Valves Pvt Ltd, this valve meets stringent industrial standards. Its sturdy build and reliable function make it a preferred choice for distributors, exporters, and service providers in India and abroad. The companys extensive market presence ensures quick availability and professional support, catering to both intentional and domestic channels.
