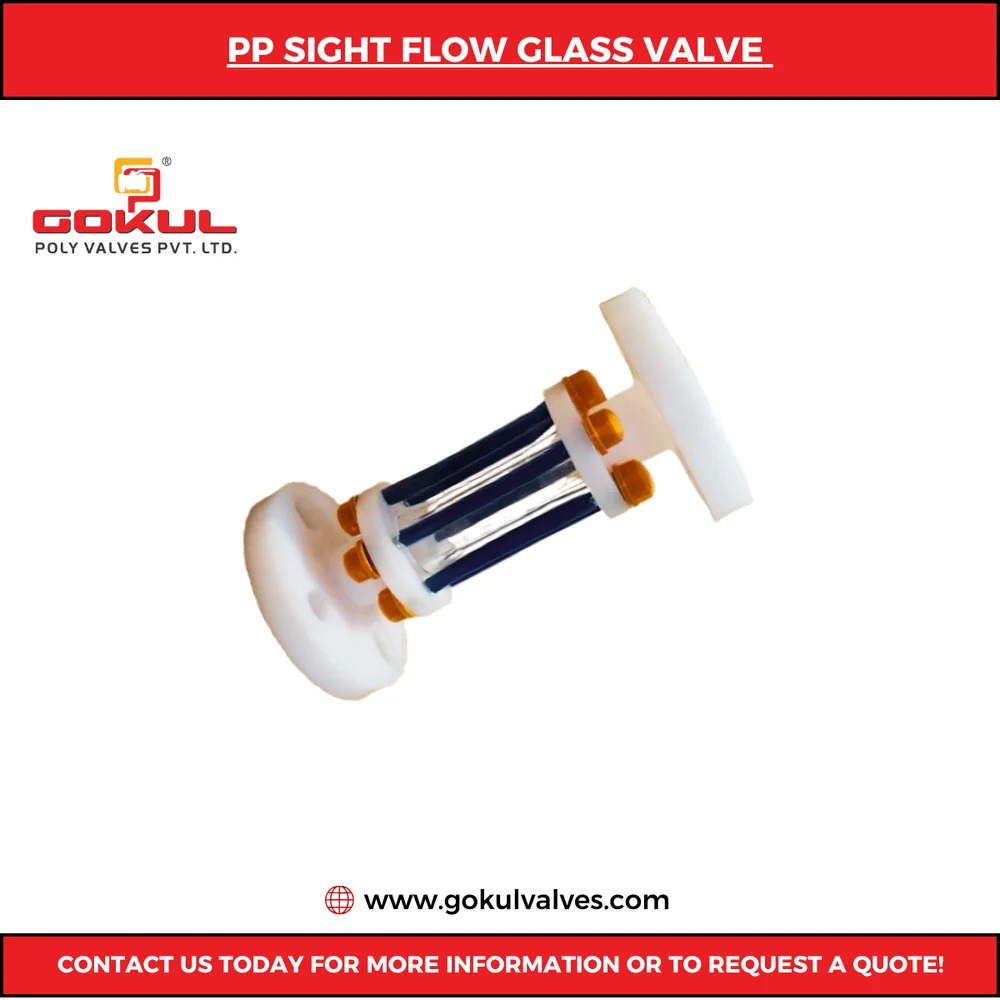

Gokul Polypropylene Sight Glass

Price 37510 INR/ Number

Get a Price/Quote

Gokul Polypropylene Sight Glass Specification

  • Pressure
  • Medium Pressure
  • Connection
  • Flanged
  • Structure
  • Ball
  • Channels
  • Intentional & Domestic Market
  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Material
  • Plastic
  • Usage
  • Industrial & Water Application
  • Size
  • 1/2" To 12"
  • Media
  • Water
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Sight Glass Valve / PP Flow Indicator Valve
  • Port Size
  • 1/2" To 12"
  • Flange
  • 150 class
  • Color
  • White
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Gokul Polypropylene Sight Glass Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Gokul Polypropylene Sight Glass

Technical Specification Material Of Construction PP (Polypropylene) Construction 3 piece design, full bore, Teflon seated, borosil glass Design 3 piece design Test pressure 8kg Max working temp 60 c (consistently) Size Range 15MM TO 12-315MM Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Side Piece/ Connector Polypropylene 2 2) Glss Tube Glass ( BOROSIL) 1 3) Crisent Ring PTFE (Teflon) 2 4) Stud M.S./ S.S. REQ 5) Nuts wisher M.S./ S.S. REQ 6) Nut Cap Polypropylene REQ 7) Stud Tube PP / PVC Coated REQ

FAQs of Gokul Polypropylene Sight Glass:


Q: What is the size range available for the Gokul Polypropylene Sight Glass?

A: The Gokul Polypropylene Sight Glass is available in sizes ranging from 1/2" to 12".

Q: What is the maximum temperature the Gokul Polypropylene Sight Glass can handle?

A: The Sight Glass can handle a temperature of up to 80C.

Q: What type of connection does the Gokul Polypropylene Sight Glass use?

A: The Sight Glass uses a flanged connection.

Q: What applications is the Gokul Polypropylene Sight Glass suitable for?

A: The Sight Glass is suitable for industrial and water applications.

Q: What pressure rating does the Gokul Polypropylene Sight Glass support?

A: The Sight Glass is designed to handle medium pressure conditions.

Q: What is the material of construction for the Gokul Polypropylene Sight Glass?

A: The material used for construction is Polypropylene (PP).

Q: What is the standard flange rating for the Gokul Polypropylene Sight Glass?

A: The flange rating for this Sight Glass is 150 class.

Gokul Polypropylene Sight Glass
Gokul Polypropylene Sight Glass
Gokul Polypropylene Sight Glass
Gokul Polypropylene Sight Glass
Gokul Polypropylene Sight Glass
Gokul Polypropylene Sight Glass
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Ball Products Category

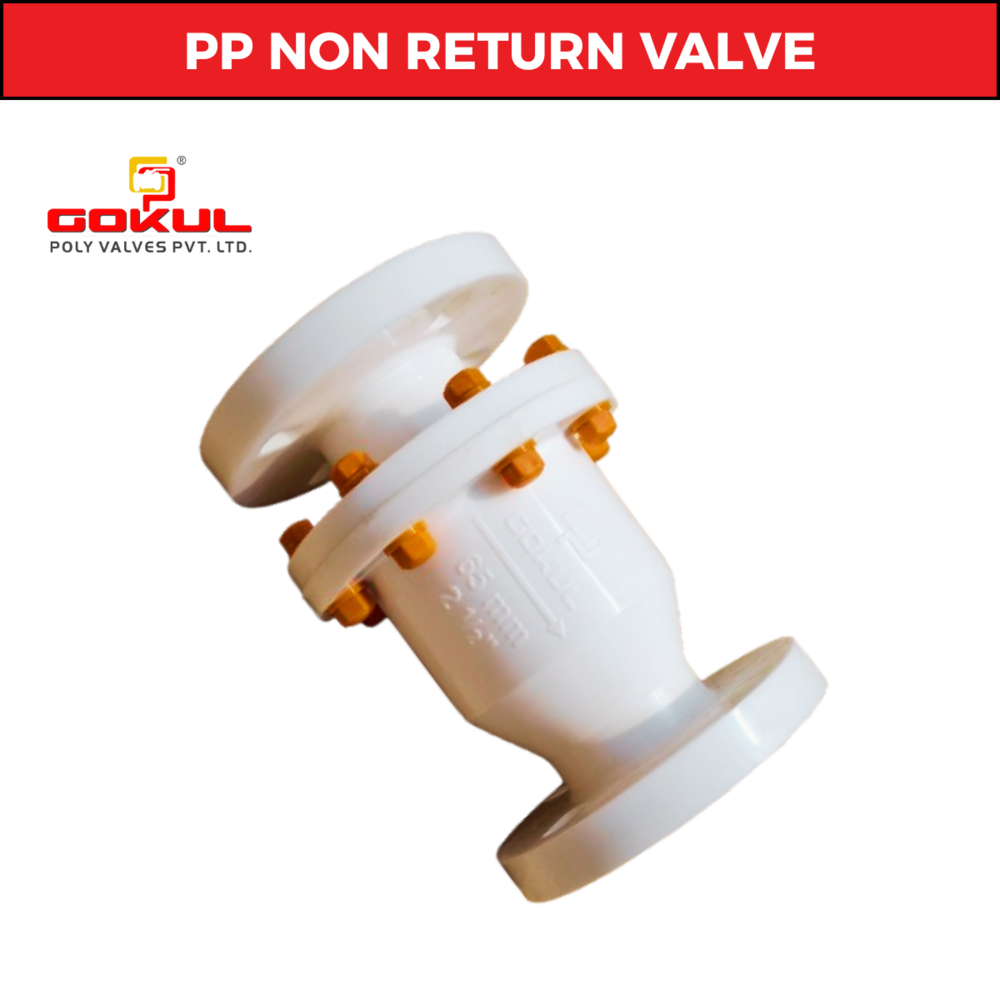

Polypropylene Nrv Flanged End
