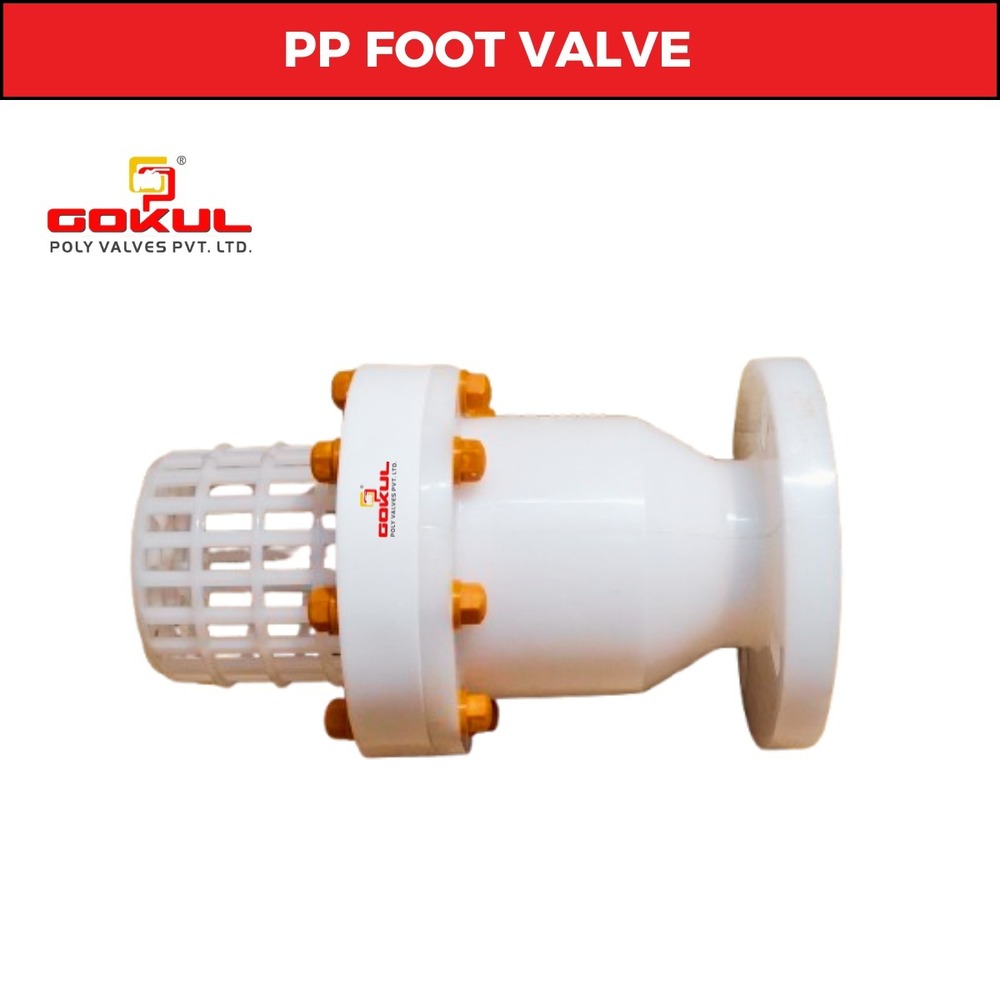

Gokul Polypropylene Foot valve Flange End

Price 22000 INR/ Number

Get a Price/Quote

Gokul Polypropylene Foot valve Flange End Specification

  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Structure
  • Ball
  • Channels
  • Intentional & Domestic Market
  • Pressure
  • Medium Pressure
  • Connection
  • Flanged
  • Usage
  • Industrial & Water Application
  • Material
  • Plastic
  • Size
  • 1" To 12"
  • Media
  • Water
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Foot Valve Flange End
  • Port Size
  • 1" To 12"
  • Flange
  • 150 class
  • Color
  • White
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Gokul Polypropylene Foot valve Flange End Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Gokul Polypropylene Foot valve Flange End

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION QTY MATERIAL 1) Top Body 1 Polypropylene 2) Bottam Body 1 Polypropylene 3) Screen 1 Polypropylene 4) Ball 1 Polypropylene 5) Ball Ring 1 Polypropylene 6) Seat Ring 1 Neoprene Rubber 7) Stud, Nut & Washer Req. SS

FAQs of Gokul Polypropylene Foot valve Flange End:


Q: What material is the Gokul Polypropylene Foot Valve Flange End made of?

A: The Gokul Polypropylene Foot Valve Flange End is made of plastic material with a polypropylene (PP) finish.

Q: What is the port size range of the Gokul Polypropylene Foot Valve Flange End?

A: The port size of the Gokul Polypropylene Foot Valve Flange End ranges from 1" to 12".

Q: What is the maximum temperature of media this foot valve can handle?

A: The Gokul Polypropylene Foot Valve Flange End can handle media temperatures up to 80C.

Q: What type of connection does the Gokul Polypropylene Foot Valve Flange End use?

A: The connection type for the Gokul Polypropylene Foot Valve Flange End is flanged with a 150 class flange.

Q: What are the primary applications for the Gokul Polypropylene Foot Valve Flange End?

A: The Gokul Polypropylene Foot Valve Flange End is suitable for industrial and water applications.

Gokul Polypropylene Foot valve Flange End
Gokul Polypropylene Foot valve Flange End
Gokul Polypropylene Foot valve Flange End
Gokul Polypropylene Foot valve Flange End
Gokul Polypropylene Foot valve Flange End
Gokul Polypropylene Foot valve Flange End
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Ball Products Category

3pc. Flanged End PP Ball Valve

3pc. Flanged End PP Ball Valve

Price 41150 INR / Number

Minimum Order Quantity : 10

Connection : Flanged

Pressure : Medium Pressure

Size : 1/2" To 12"

Channels : Intentional & Domestic Market

Get a Price/Quote

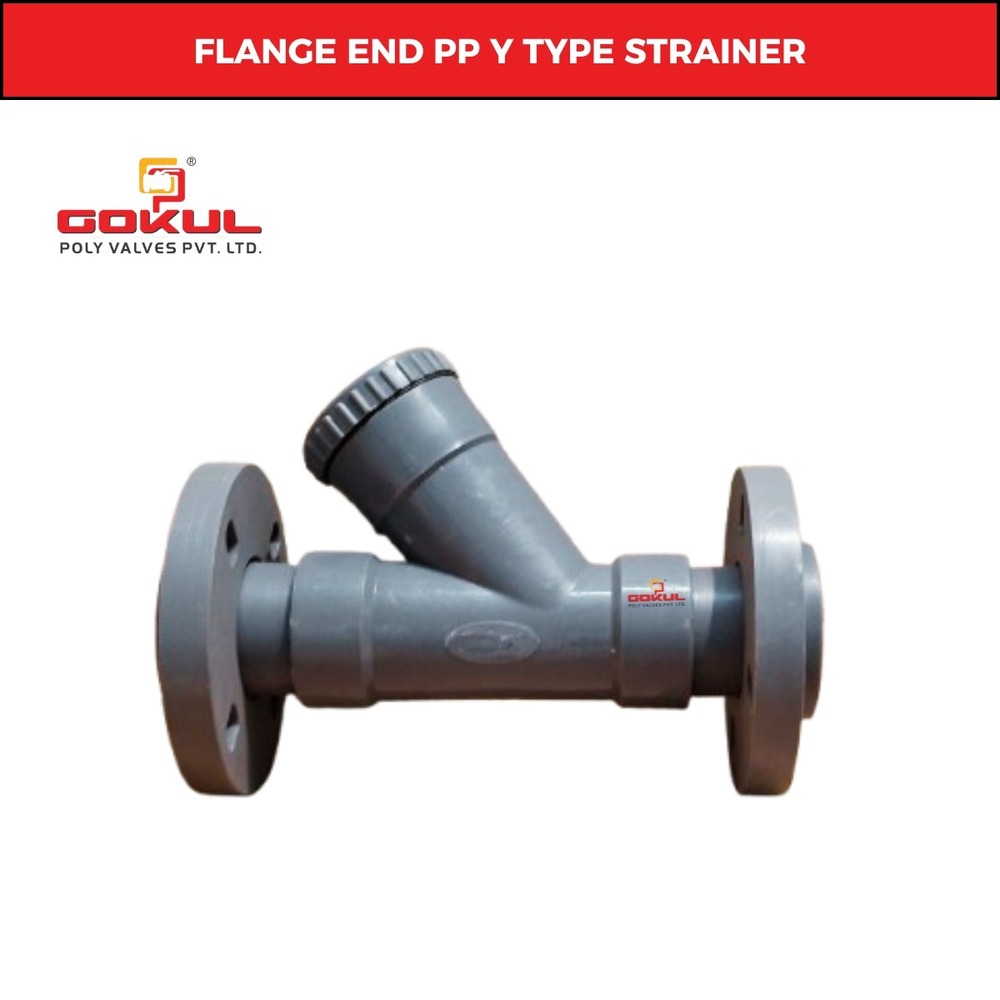

PP Y Type Strainer Flange End
