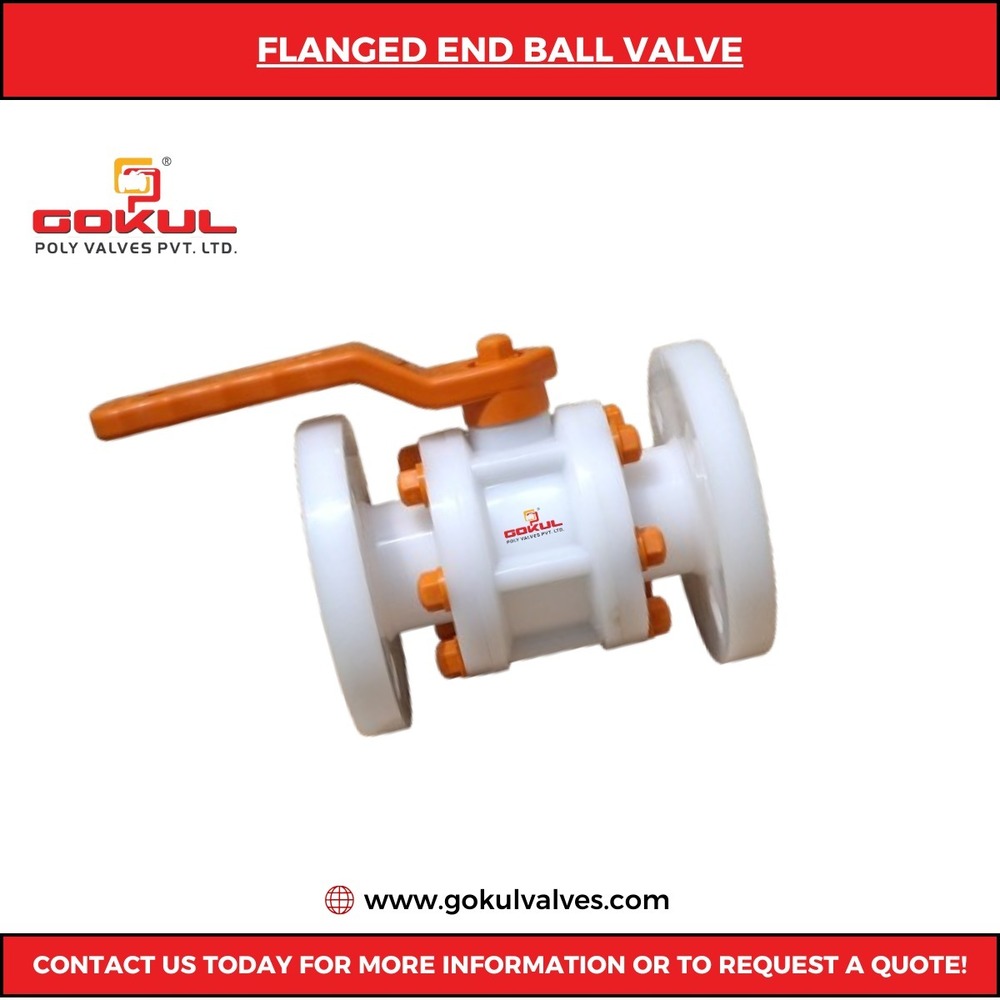

Gokul PP Ball Valve 2"

Price 840 INR/ Number

Get a Price/Quote

Gokul PP Ball Valve 2" Specification

Connection
Flanged

Caliber
Gokul Poly Valves Pvt Ltd

Pressure
Medium Pressure

Structure
Ball

Channels
Intentional & Domestic Market

Usage
Industrial & Water Application

Material
Plastic

Media
Water

Size
2"-50MM

Temperature of Media
80 Celsius (oC)

Product Type
PP Ball Valve

Port Size
2"-50mm

Flange
150 class

Color
White

Finish
Polypropylene (PP)

Application
industrial and water application

Gokul PP Ball Valve 2" Trade Information

Minimum Order Quantity
30 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
30 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About Gokul PP Ball Valve 2"

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12ïï-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Efficient Flow Control Solution

The Gokul PP Ball Valve 2" guarantees seamless fluid regulation in diverse industrial and water management systems. Its ball structure, combined with a sturdy polypropylene construction, delivers long-term reliability for users requiring consistent operation. Compatible with multiple piping arrangements, the valves 2" size and 150 class flanged connection streamline installation and maintenance.

Built for Challenging Environments

Crafted to withstand temperatures up to 80C and medium pressure, this ball valve is tailored for demanding settings. The white polypropylene body resists chemical corrosion, making it well-suited for various water treatment or industrial processes. Its robust build ensures minimal maintenance and maximizes operational uptime.

Ideal for Global and Domestic Use

Recognized as a reliable exporter, manufacturer, service provider, and supplier from India, Gokul Poly Valves Pvt Ltd meets both local and international standards. The ball valves design caters to the needs of clients worldwide, supporting intentional and domestic infrastructure projects efficiently.

FAQs of Gokul PP Ball Valve 2":

Q: How can the Gokul PP Ball Valve 2" be installed in a piping system?

A: Installation is straightforward due to the 150 class flanged connection. Align the valve with the pipeline flanges, secure it using appropriate bolts and gaskets, and ensure proper sealing to prevent leaks. This design simplifies integration into new or existing industrial and water networks.

Q: What are the primary uses for this 2-inch polypropylene ball valve?

A: This valve is intended for controlling water flow in both industrial and water applications. Its medium pressure rating and temperature tolerance make it suitable for processes such as water treatment, irrigation, and various fluid-handling tasks within manufacturing environments.

Q: When is it advisable to choose a polypropylene ball valve over metal alternatives?

A: A polypropylene ball valve like this one is ideal when resistance to chemicals, lightweight construction, and cost-effectiveness are priorities. It performs exceptionally in environments where corrosive fluids might compromise metal valves, especially at temperatures up to 80C.

Q: Where is the Gokul PP Ball Valve 2" commonly used?

A: It is widely utilized in water management systems, industrial processing lines, and infrastructure projects, especially where reliable on-off fluid control is essential. The valves compatibility with both domestic and international standards allows use in a broad range of settings.

Q: What is the process for maintaining this ball valve?

A: Routine maintenance involves periodically checking for leaks, ensuring flanges remain tight, and inspecting for any signs of wear. Its polypropylene body minimizes corrosion issues, making upkeep generally minimal compared to metal valves.

Q: How does this valve benefit industrial and water applications?

A: The valve offers excellent chemical and corrosion resistance, straightforward installation, and reliable medium-pressure performance. Its lightweight design reduces installation strain, while the ball structure ensures smooth operation and minimal fluid loss.
