Gokul Polypropylene Non Return Valve Nrv Gokul Polypropylene Non Return Valve Nrv Gokul Polypropylene Non Return Valve Nrv Gokul Polypropylene Non Return Valve Nrv Gokul Polypropylene Non Return Valve Nrv Gokul Polypropylene Non Return Valve Nrv

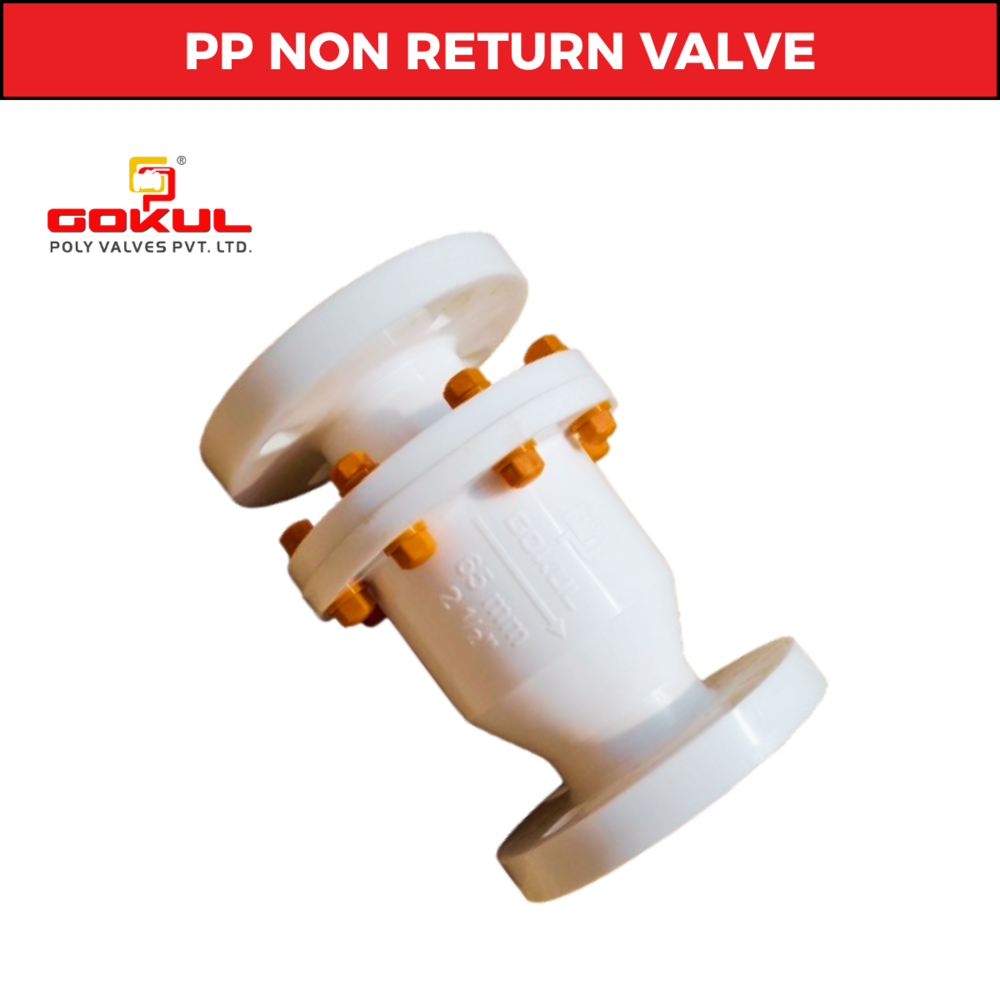

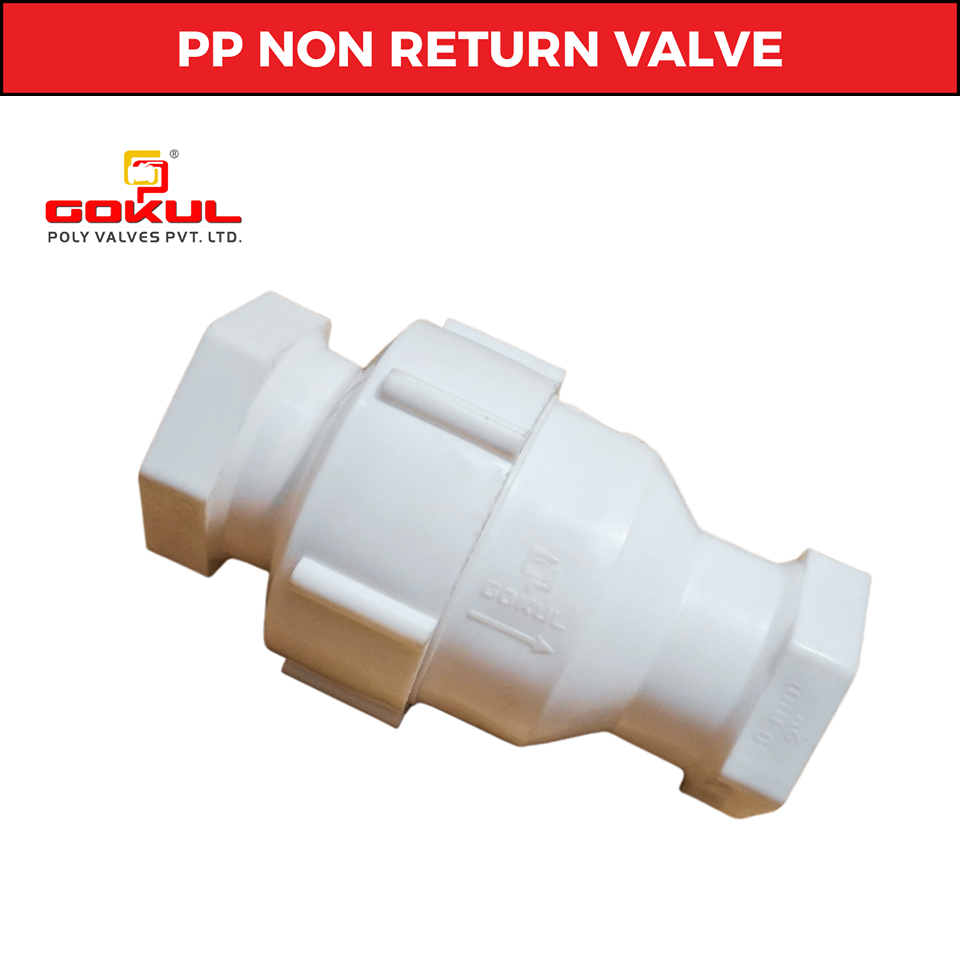

Gokul Polypropylene Non Return Valve Nrv

27600 INR/Number
Get a Price/Quote

Product Details:

  • Usage Industrial & Water Application
  • Caliber Gokul Poly Valves Pvt Ltd
  • Size 1" To 12"
  • Structure Ball
  • Channels Intentional & Domestic Market
  • Pressure Medium Pressure
  • Color White
  • Click to view more
Request To Call Back Send Inquiry
X

Gokul Polypropylene Non Return Valve Nrv Price And Quantity

  • 10 Number
  • 27600 INR/Number

Gokul Polypropylene Non Return Valve Nrv Product Specifications

  • PP Non Return Valve Flanged
  • 150 class
  • White
  • Water
  • industrial and water application
  • 1" To 12"
  • 80 Celsius (oC)
  • Flanged
  • 1" To 12"
  • Gokul Poly Valves Pvt Ltd
  • Plastic
  • Industrial & Water Application
  • Medium Pressure
  • Intentional & Domestic Market
  • Polypropylene (PP)
  • Ball

Gokul Polypropylene Non Return Valve Nrv Trade Information

  • Ahmedabad
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • 10 Number Per Day
  • 1 Days
  • Contact us for information regarding our sample policy
  • Box Packing
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • All India
  • ISO & Material Test Certificate

Product Description

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Top Body Polypropylene 1 2) Bottom body Polypropylene 1 3) Ball Polypropylene 1 4) Ball Ring Polypropylene 1 5) Seat Ring Neoprene Rubber 1 6) Stud, Nut & Washer SS Req.

FAQs of Gokul Polypropylene Non Return Valve Nrv:


Q: What is the size range available for the Gokul Polypropylene Non Return Valve (NRV)?

A: The Gokul Polypropylene Non Return Valve (NRV) is available in sizes ranging from 1" to 12".

Q: What type of connection does the Gokul Polypropylene Non Return Valve (NRV) use?

A: The valve uses a flanged connection for secure installation.

Q: What is the maximum temperature of media the Gokul Polypropylene Non Return Valve (NRV) can handle?

A: The valve can handle media temperatures up to 80C.

Q: Which applications are suitable for the Gokul Polypropylene Non Return Valve (NRV)?

A: It is suitable for industrial and water applications.

Q: What is the material used to construct the Gokul Polypropylene Non Return Valve (NRV)?

A: The valve is made of plastic with a polypropylene (PP) finish.

Q: What pressure level does the Gokul Polypropylene Non Return Valve (NRV) operate under?

A: The valve is designed for medium pressure applications.

Q: What is the color of the Gokul Polypropylene Non Return Valve (NRV)?

A: The valve is white in color.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

Other Products in 'Ball Products' category

Gokul Polypropylene Diaphragm Screwed End Valve
Send Inquiry

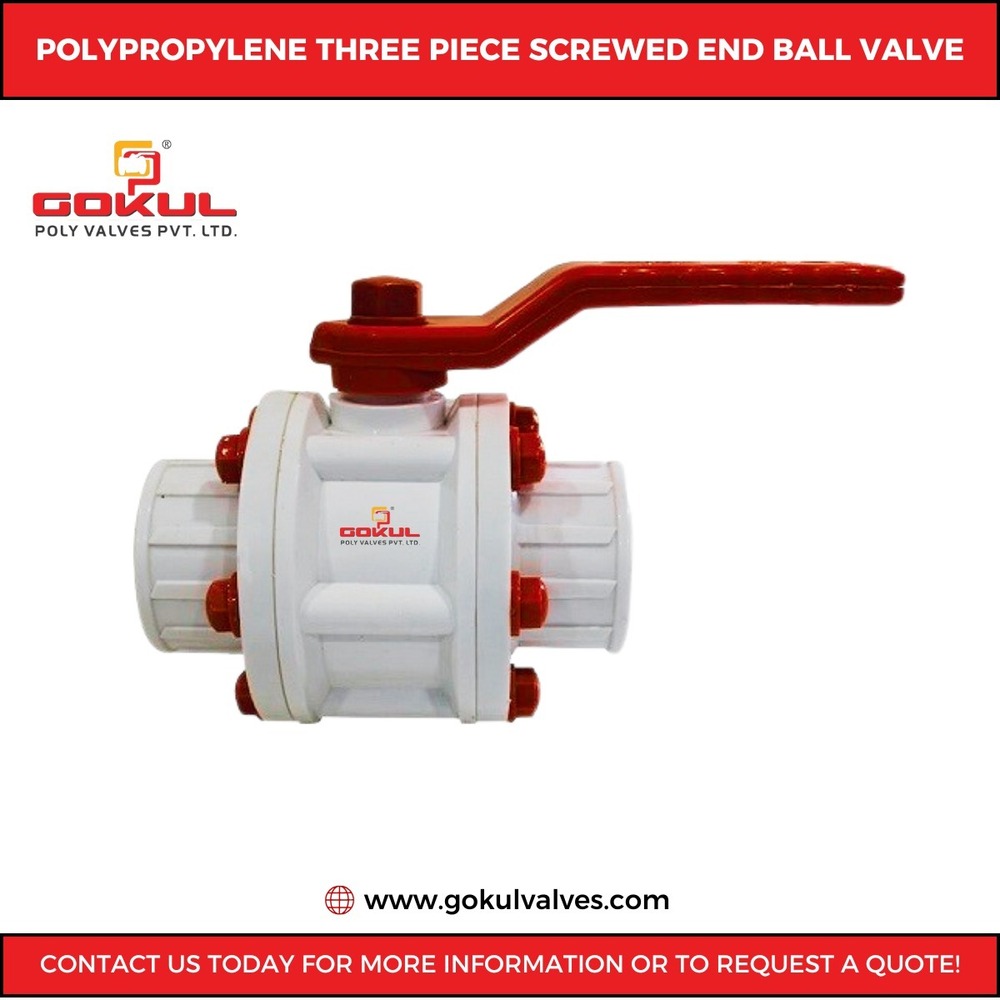

Polypropylene Three Piece Screwed End Ball Valve
Send Inquiry
PP Sight Glass Valve
Send Inquiry

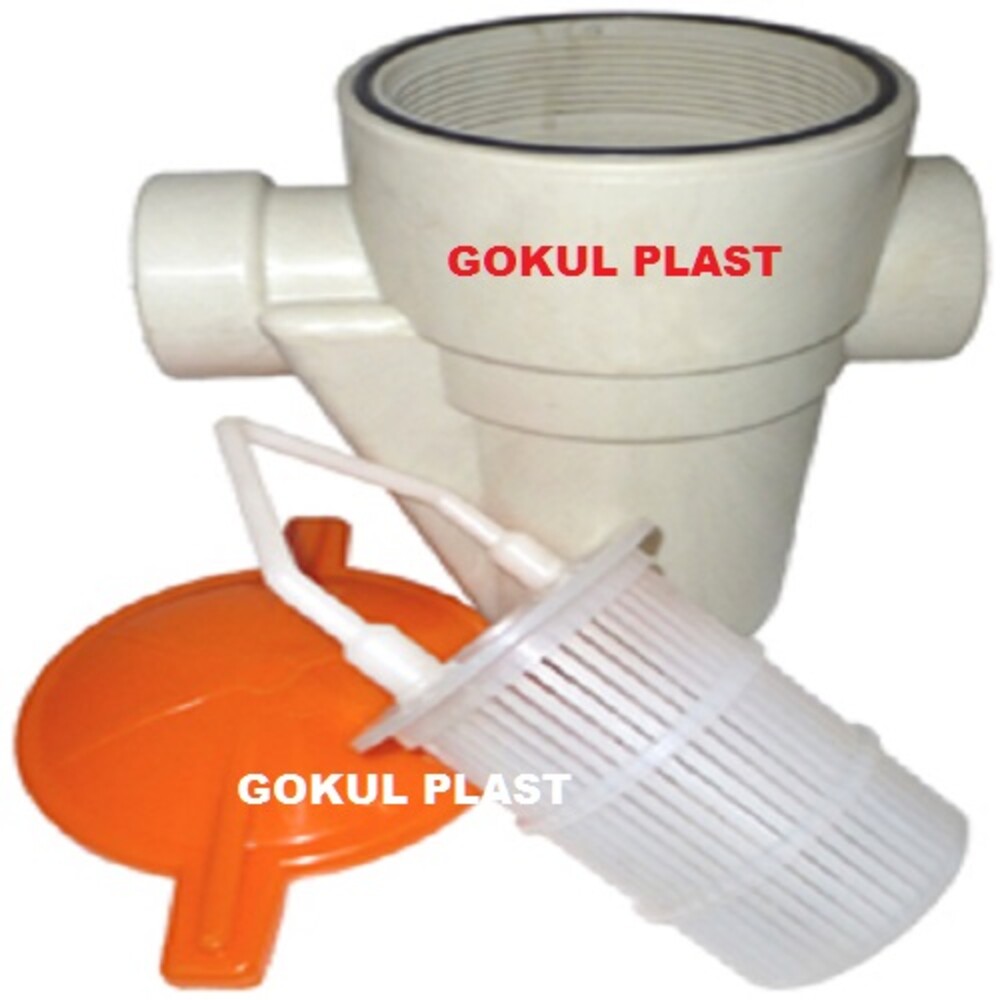

Polypropylene Y Type Strainer Screwed End
