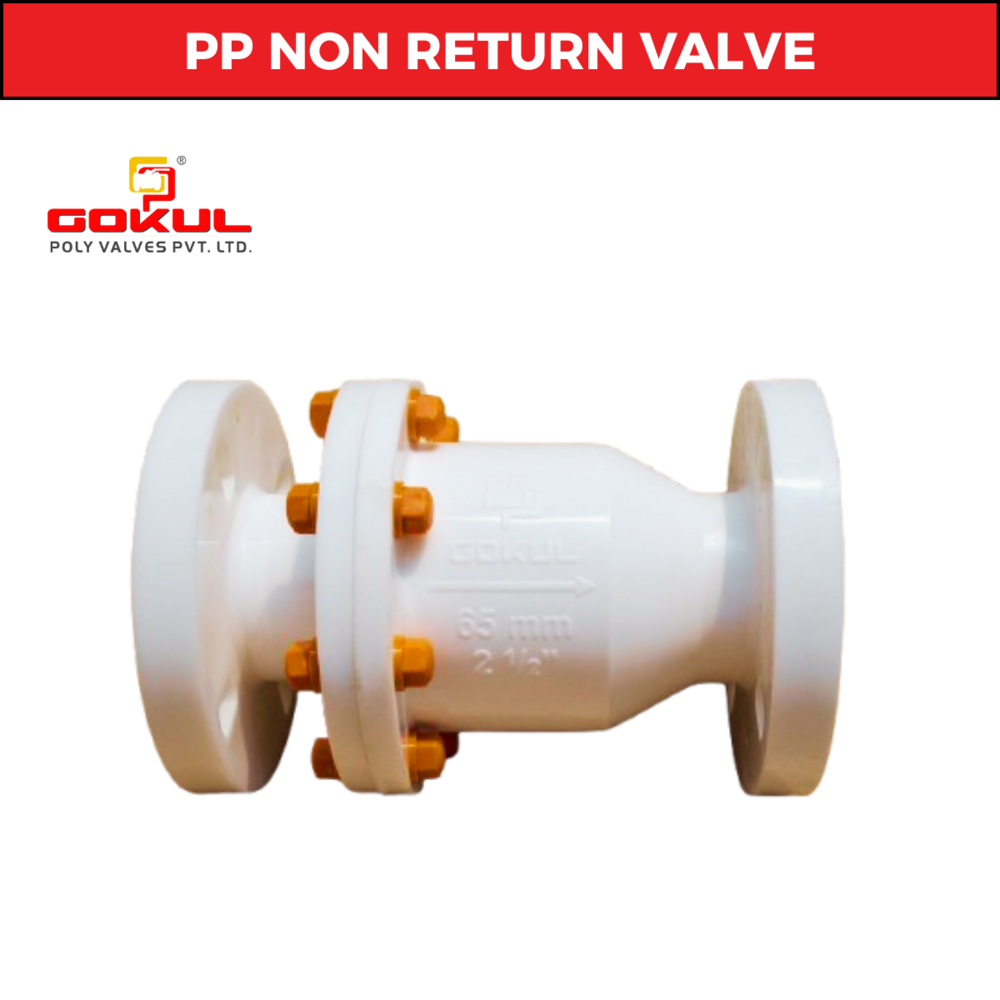

Gokul Polypropylene Nrv Valve

Price 3200 INR/ Number

Get a Price/Quote

Gokul Polypropylene Nrv Valve Specification

Caliber
Gokul Poly Valves Pvt Ltd

Connection
Flanged

Channels
Intentional & Domestic Market

Pressure
Medium Pressure

Structure
Ball

Usage
Industrial & Water Application

Material
Plastic

Media
Water

Size
1" To 12"

Temperature of Media
80 Celsius (oC)

Product Type
PP Non Return Valve Flanged

Port Size
1" To 12"

Flange
150 class

Color
White

Finish
Polypropylene (PP)

Application
industrial and water application

Gokul Polypropylene Nrv Valve Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material

About Gokul Polypropylene Nrv Valve

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Top Body Polypropylene 1 2) Bottom body Polypropylene 1 3) Ball Polypropylene 1 4) Ball Ring Polypropylene 1 5) Seat Ring Neoprene Rubber 1 6) Stud, Nut & Washer SS Req.
