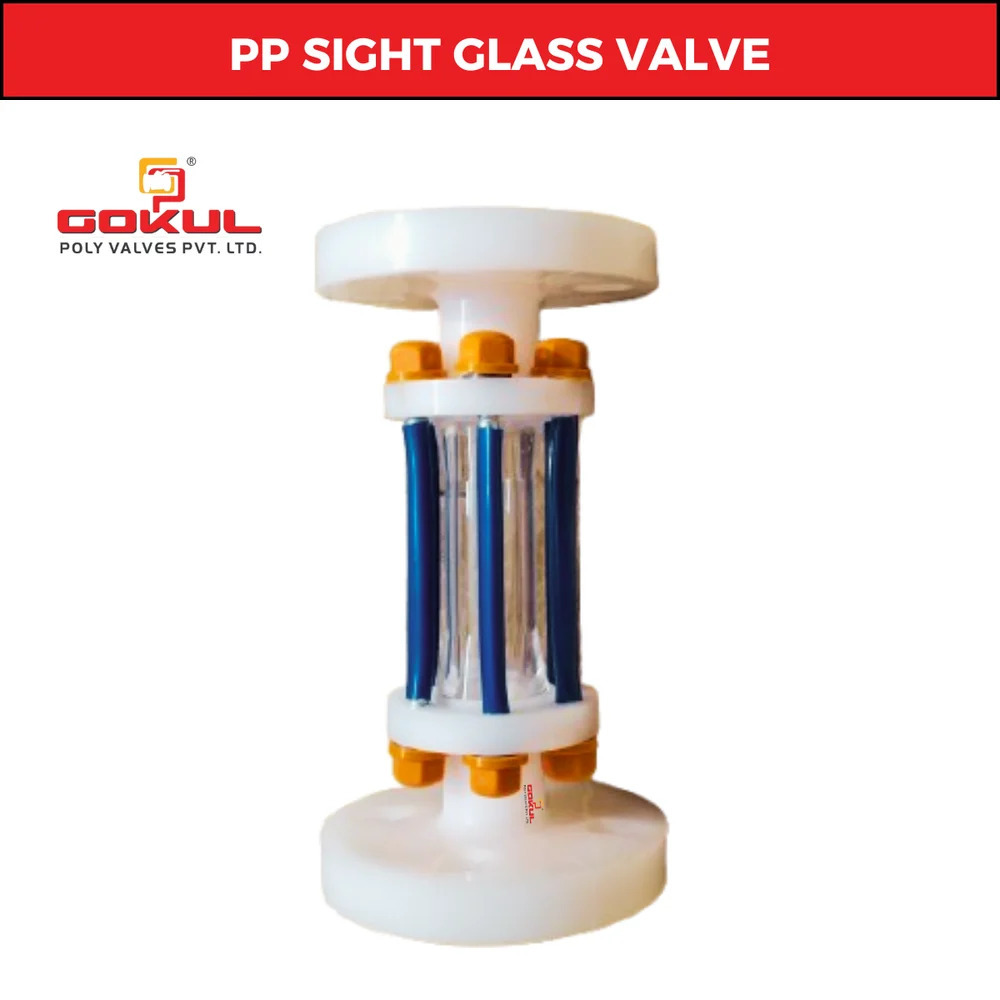

Gokul Polypropylene Sight Glass Valve Flanged

Price 10800 INR/ Number

Get a Price/Quote

Gokul Polypropylene Sight Glass Valve Flanged Specification

  • Pressure
  • Medium Pressure
  • Channels
  • Intentional & Domestic Market
  • Connection
  • Flanged
  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Structure
  • Ball
  • Material
  • Plastic
  • Usage
  • Industrial & Water Application
  • Size
  • 1/2" To 12"
  • Media
  • Water
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Sight Glass Valve / PP Flow Indicator Valve
  • Port Size
  • 1/2" To 12"
  • Flange
  • 150 class
  • Color
  • White
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Gokul Polypropylene Sight Glass Valve Flanged Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Gokul Polypropylene Sight Glass Valve Flanged

Technical Specification Material Of Construction PP (Polypropylene) Construction 3 piece design, full bore, Tef-lon seated, borosil glass Design 3 piece design Test pressure 8kg Max working temp 60 c (consistently) Size Range -15MM TO 12-315MM Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Side Piece/ Connector Polypropylene 2 2) Glss Tube Glass ( BOROSIL) 1 3) Crisent Ring PTFE (Tef-lon) 2 4) Stud M.S./ S.S. REQ 5) Nuts wisher M.S./ S.S. REQ 6) Nut Cap Polypropylene REQ 7) Stud Tube PP / PVC Coated REQ

FAQs of Gokul Polypropylene Sight Glass Valve Flanged:


Q: What is the pressure rating of the Gokul Polypropylene Sight Glass Valve Flanged?

A: The Gokul Polypropylene Sight Glass Valve Flanged is designed for medium pressure applications.

Q: What is the temperature range the valve can handle?

A: The valve can handle media temperatures up to 80C (80 Celsius).

Q: What is the size range available for this valve?

A: The valve is available in sizes ranging from 1/2" to 12".

Q: What is the connection type of this valve?

A: The connection type for this valve is flanged.

Q: What are the key applications of the Gokul Polypropylene Sight Glass Valve Flanged?

A: This valve is primarily used for industrial and water applications.

Q: What is the material used for manufacturing this valve?

A: The valve is made from polypropylene (PP), which is a type of plastic.

Q: What is the flange rating for this valve?

A: The flange is rated as 150 class.
