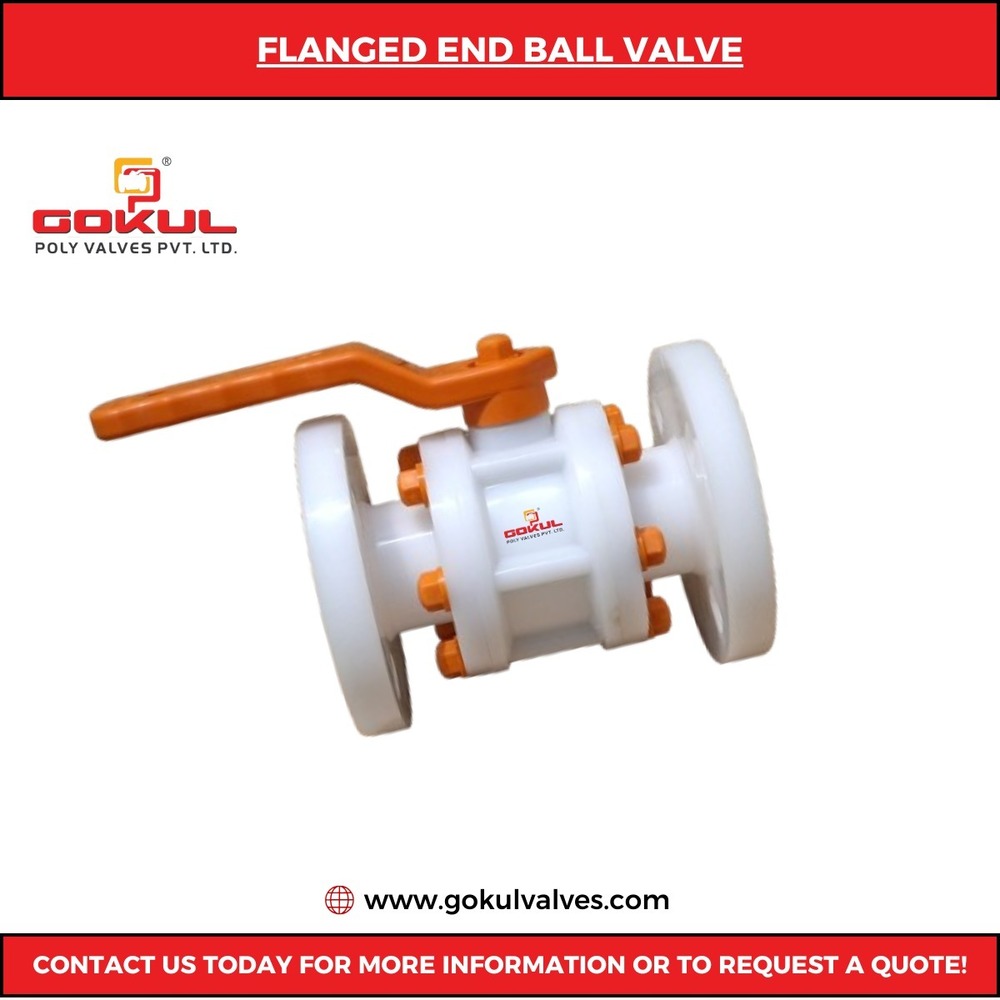

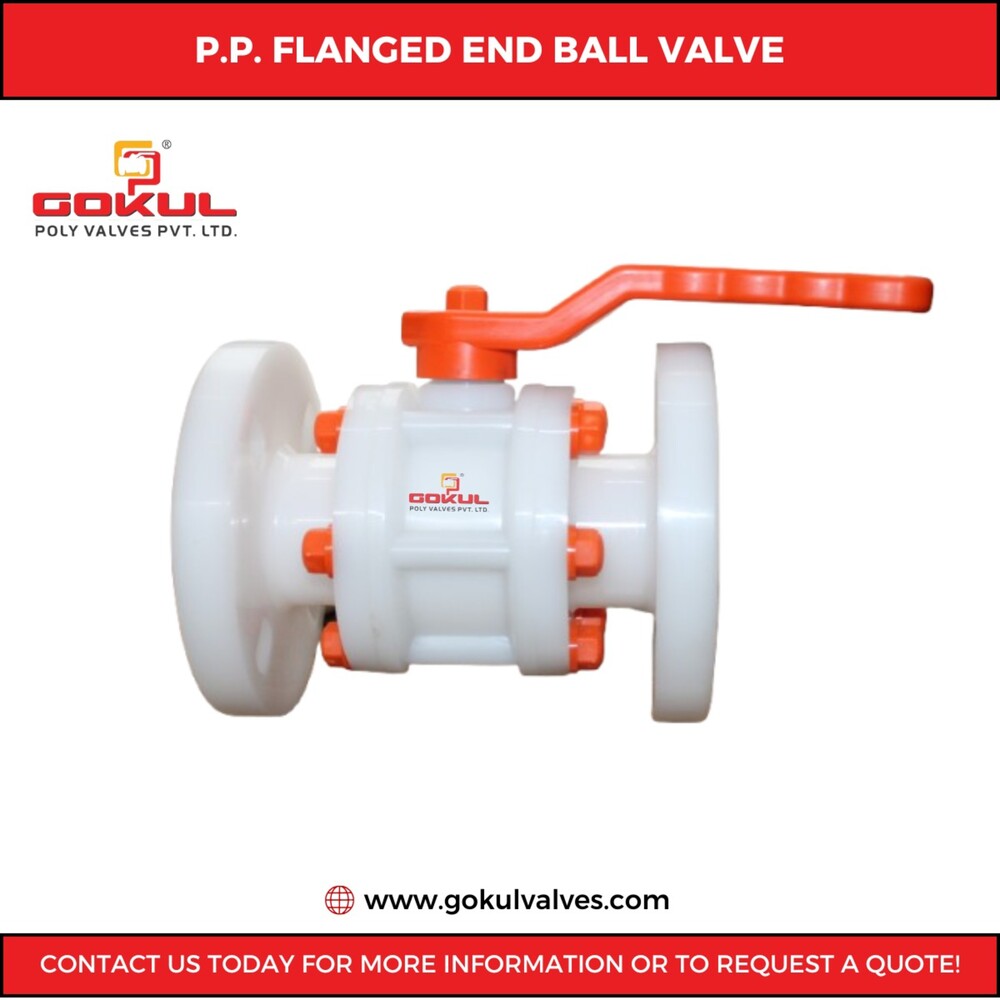

Gokul PP Ball Valve 1/2"

About Gokul PP Ball Valve 1/2"

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

High-Quality Polypropylene Construction

Crafted from premium polypropylene, the Gokul PP Ball Valve delivers exceptional strength and resistance to corrosive environments. Its robust structure makes it ideal for managing water and other non-aggressive fluids in industrial settings.


Reliable Flanged Connection for Secure Installations

Designed with a 150 class flanged connection, the valve ensures secure and leak-proof installation. This feature accommodates straightforward integration in pipeline systems, minimizing downtime and ensuring operational continuity.


Versatility Across Industrial and Water Applications

With its ability to handle medium pressure and temperatures up to 80C, this ball valve serves both industrial and water distribution systems. Its adaptability makes it a preferred choice for manufacturers, suppliers, and service providers across India and abroad.
