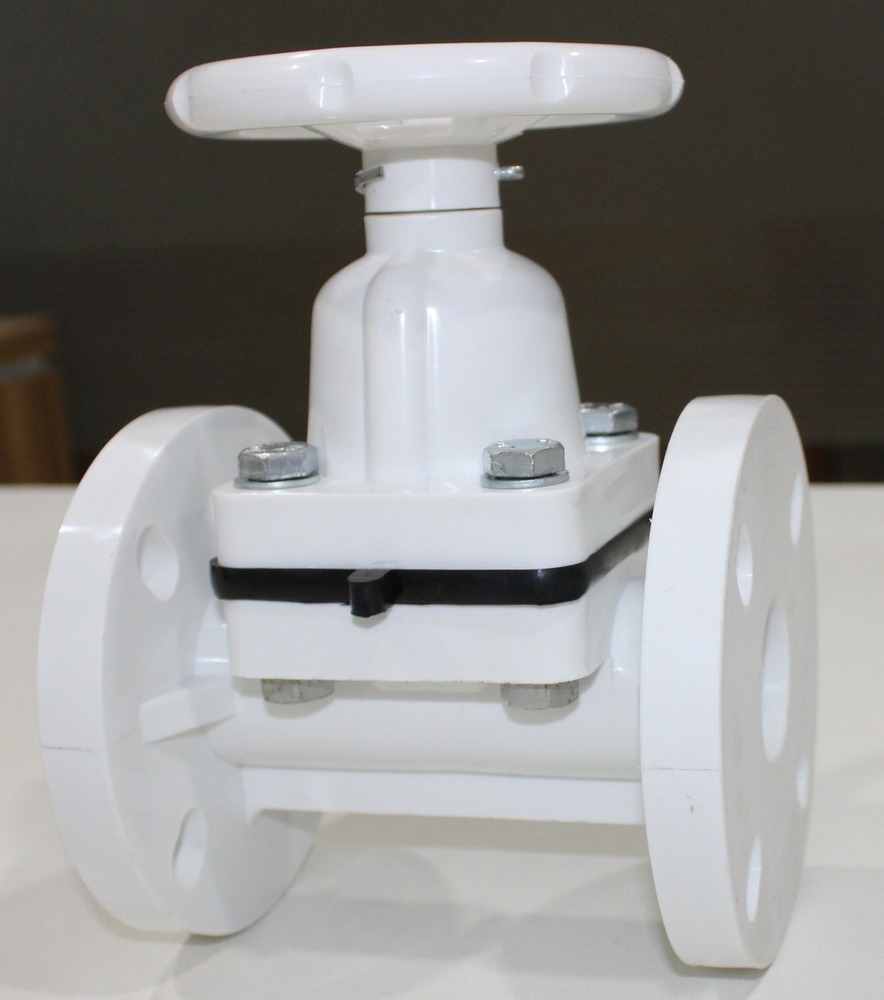

Flange End Polypropylene Diaphragm Valve 2"

About Flange End Polypropylene Diaphragm Valve 2"

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	weir type design,Soft seated, raising stem
Design	2 Piece Design	Connection End	Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range	15MM to 150MM	Test pressure	6 kg./cm2
Max working temp	70 c (consistently)	Standard	As per manufacturer

Material Specification

No.	DESCRIPTION	MATERIAL	QTY.
1)	Body	Polypropylene	1
2)	Bonnet	Polypropylene	1
3)	Hand wheel	Polypropylene	1
4)	Diaphragm	Neoprene Rubber	1
5)	Compressor	PP	1
6)	Stem / Spindel	M.S. /Brass	1
7)	Nut	M.S./ S.S.	1
8)	Pin	M.S./ S.S.	1
9)	Bolt, Nut, Washer	M.S./ S.S.	REQ
10)	Cap	Polypropylene	1

Durable Polypropylene Construction

This valve is manufactured using premium polypropylene material, providing notable resistance to corrosion and chemical exposure. Such durability extends the valves lifespan, making it suitable for rigorous industrial and water treatment settings where reliability is essential for consistent performance.


Efficient Flow Control Design

Equipped with a ball-type diaphragm and a two-inch port, the valve enables precise regulation of water and medium-pressure fluids. Its diaphragmatic structure minimizes leakage risks, facilitating optimal operations in a range of process environments under fluctuating temperature and pressure conditions.


Versatile Application and Easy Installation

The Class 150 flanged design ensures compatibility with existing piping networks, enhancing installation ease. Suitable for both domestic and intentional markets, this valve supports varied applications, from water distribution systems to complex industrial processes, offering flexibility and adaptability.
