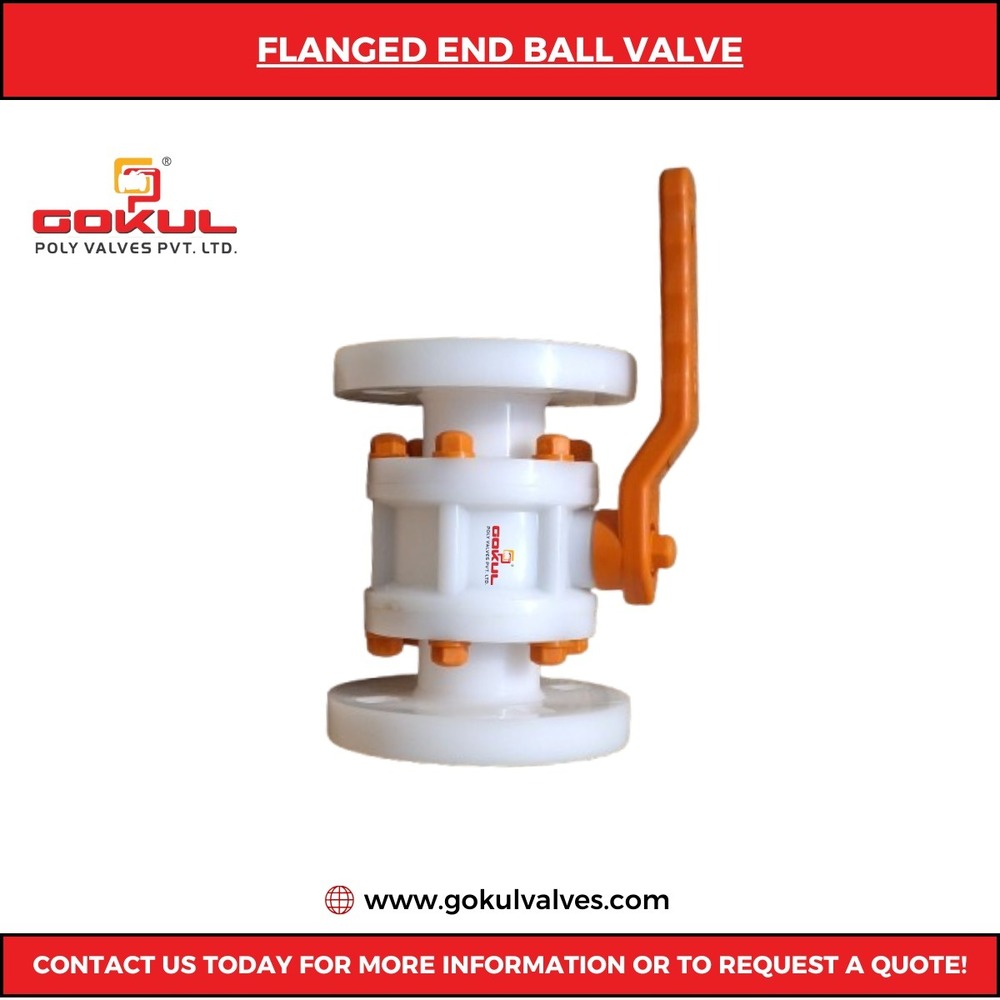

Gokul PP Ball Valve 1.5"

635 INR/Number

Get a Price/Quote

Product Details:

Caliber Gokul Poly Valves Pvt Ltd
Channels Intentional & Domestic Market
Size 1.5"-40mm
Connection Flanged
Usage Industrial & Water Application
Pressure Medium Pressure
Structure Ball
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Gokul PP Ball Valve 1.5" Price And Quantity

Price 635 INR/Number
Minimum Order Quantity 10 Number
Price Range 635.00 - 635.00 INR/Number

Gokul PP Ball Valve 1.5" Product Specifications

Pressure Medium Pressure
Application industrial and water application
Usage Industrial & Water Application
Media Water
Material Plastic
Product Type PP Ball Valve
Finish Polypropylene (PP)
Temperature of Media 80 Celsius (oC)
Structure Ball
Color White
Flange 150 class
Caliber Gokul Poly Valves Pvt Ltd
Channels Intentional & Domestic Market
Connection Flanged
Port Size 1.5"-40mm
Size 1.5"-40mm

Gokul PP Ball Valve 1.5" Trade Information

FOB Port Ahmedabad
Payment Terms Cash Advance (CA) Cash in Advance (CID) Cheque
Supply Ability 10 Number Per Day
Delivery Time 1 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Box Packing
Main Export Market(s) Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
Main Domestic Market All India
Certifications ISO & Material Test Certificate

Product Description

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Teflon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12ïï-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEFLON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEFLON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.
