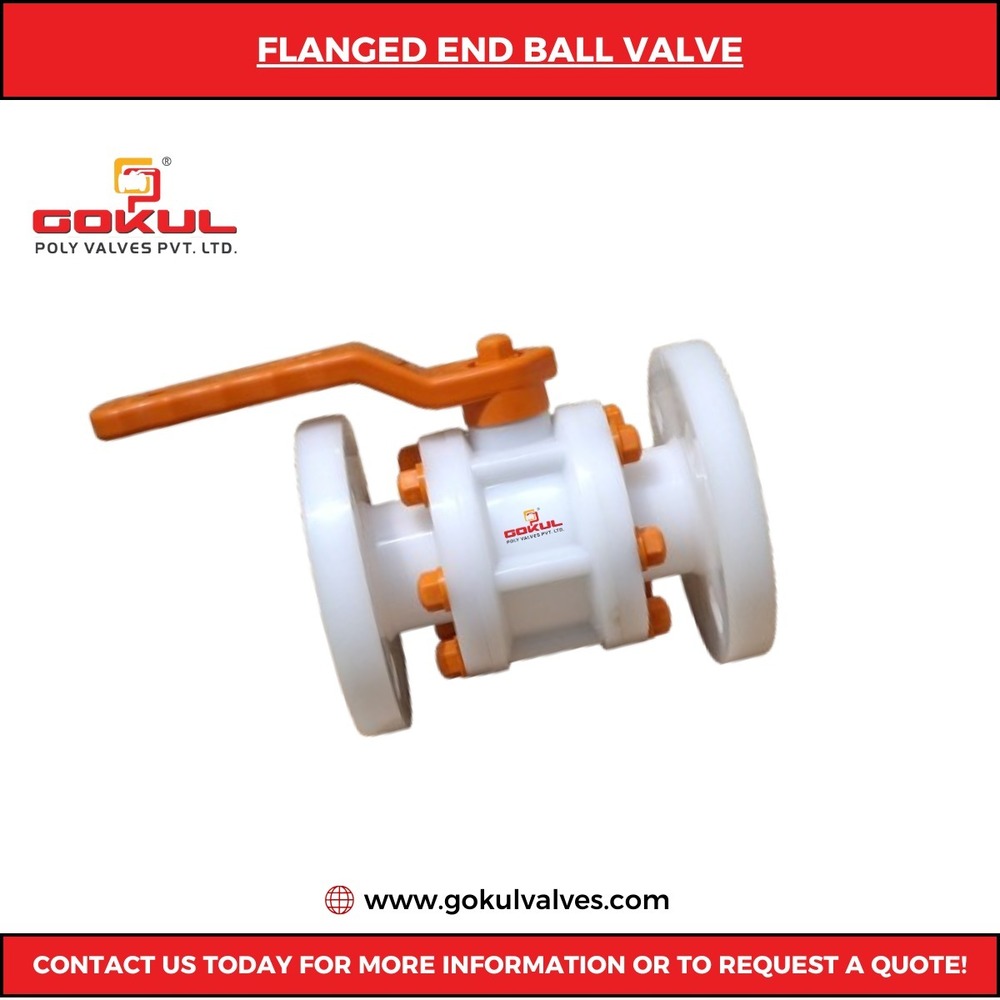

Gokul PP ball valve 3"

About Gokul PP ball valve 3"

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12ïï-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Engineered for Versatility and Reliability

The Gokul PP Ball Valve 3" delivers dependable operation for both industrial and water system installations. Its polypropylene construction ensures resistance against corrosion and harsh chemicals, while the medium pressure rating and flanged connection simplify integration into various pipeline setups. This valve seamlessly combines quality, performance, and easy maintenance, making it suitable for wide-ranging applications.


Protecting Your Systems with Polypropylene Construction

Designed for tough environments, the polypropylene (PP) material delivers outstanding durability and withstands water temperatures of up to 80C. This makes the valve an excellent fit for chemical processing, water treatment plants, and other industrial facilities seeking longevity and minimal maintenance in their valves.
