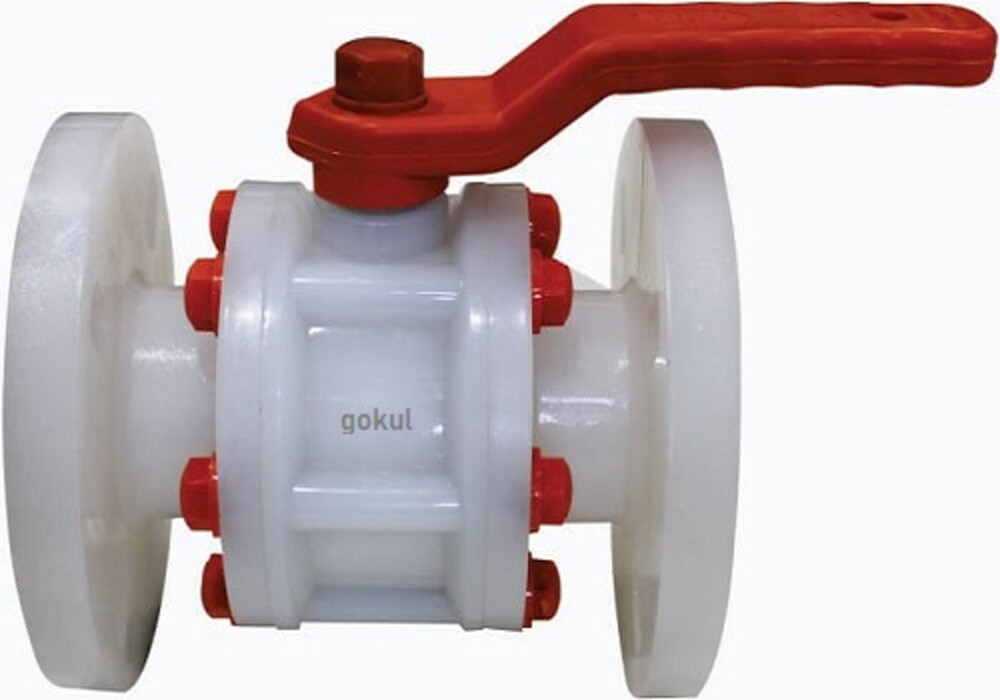

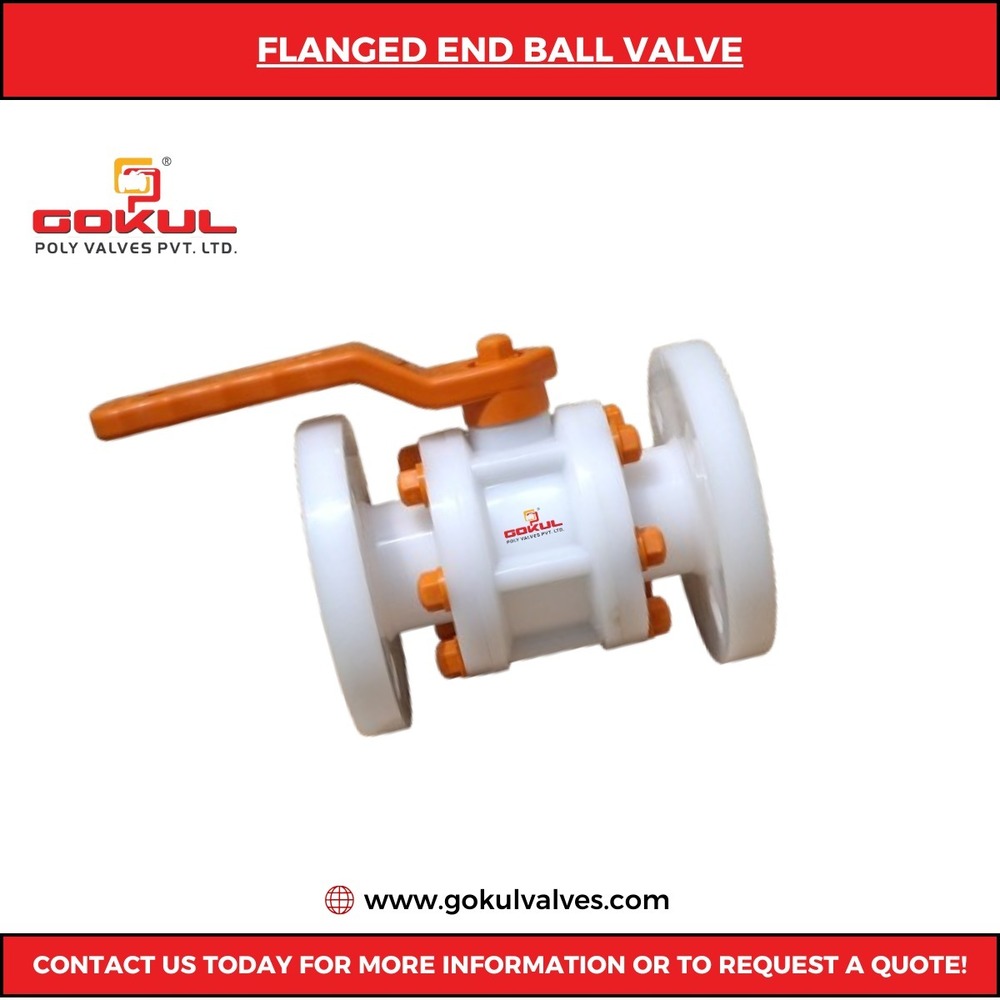

Gokul PP Ball valve Flange End 4"

Price 3000 INR/ Number

Get a Price/Quote

About Gokul PP Ball valve Flange End 4"

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Gokul PP Ball valve Flange End 4

Gokul PP Ball valve Flange End 4

Gokul PP Ball valve Flange End 4

Gokul PP Ball valve Flange End 4

Gokul PP Ball valve Flange End 4

Gokul PP Ball valve Flange End 4

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Email

More Products in Ball Products Category

PP Foot Valve Flange End

PP Foot Valve Flange End

Price 1320 INR / Number

Minimum Order Quantity : 10

Temperature of Media : 80 Celsius (oC)

Size : 1" To 12"

Port Size : 1/2" To 12"

Finish : Polypropylene (PP)

Get a Price/Quote

Gokul PP Non Return Valve Flanges

Gokul PP Non Return Valve Flanges

Price 10000 INR / Number

Minimum Order Quantity : 10

Temperature of Media : 80 Celsius (oC)

Size : 1" To 12"

Port Size : 1" To 12"

Finish : Polypropylene (PP)

Get a Price/Quote

Threaded Polypropylene Foot Valve

Threaded Polypropylene Foot Valve

Price 1320 INR / Number

Minimum Order Quantity : 10

Temperature of Media : 80 Celsius (oC)

Size : 1" To 4"

Port Size : 1" To 4"

Finish : Polypropylene (PP)

Get a Price/Quote

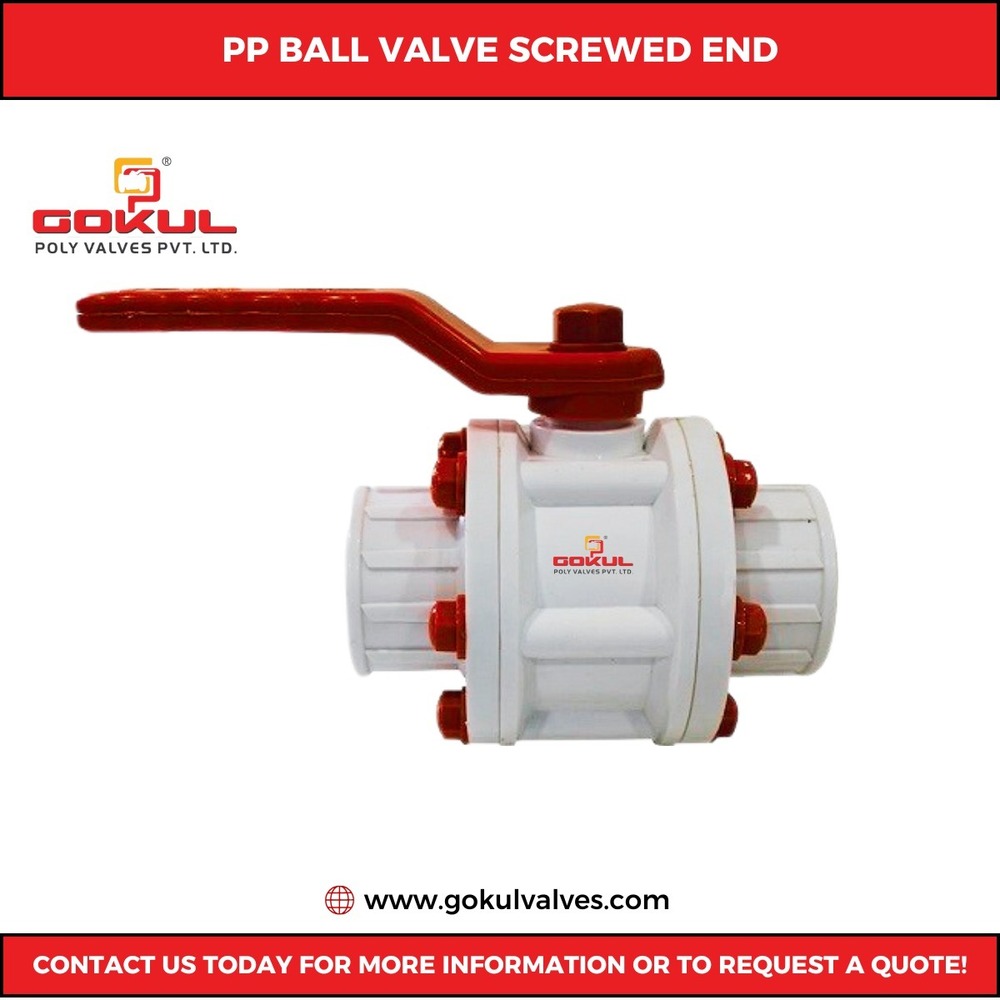

Gokul Polypropylene Ball Valve threaded End
