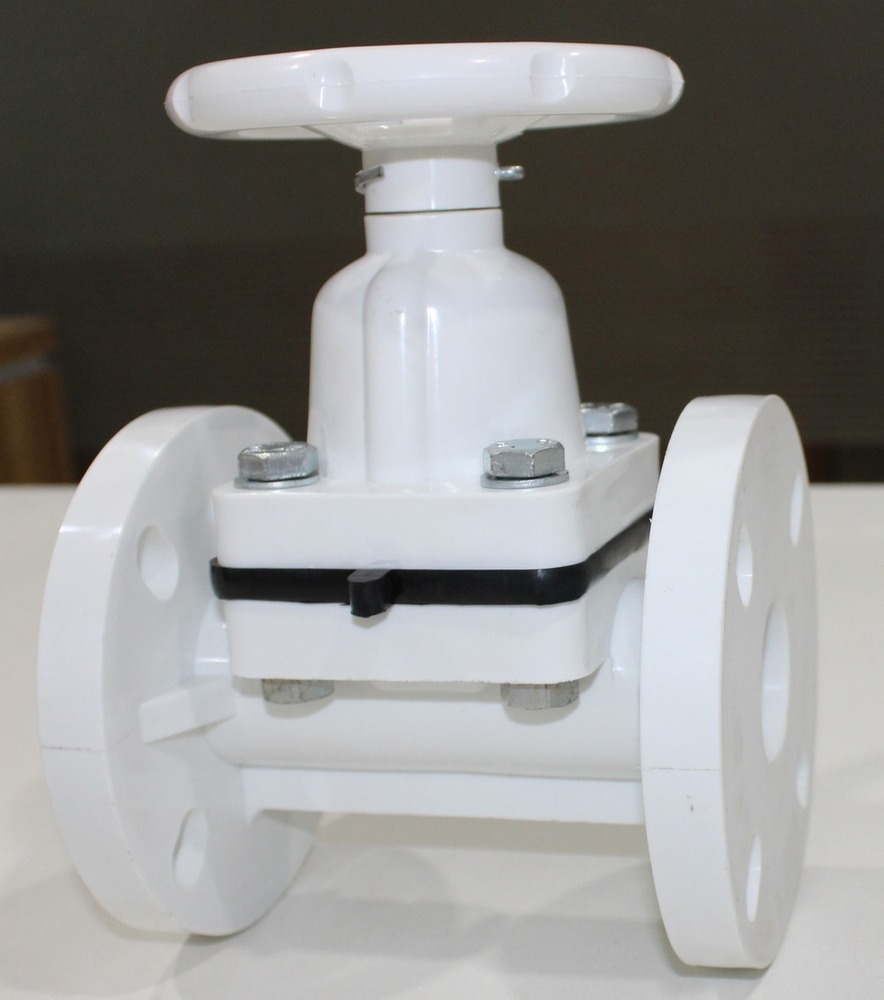

Flange End Pp Diaphragm Valve 4"

About Flange End Pp Diaphragm Valve 4"

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	weir type design,Soft seated, raising stem
Design	2 Piece Design	Connection End	Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range	15MM to 150MM	Test pressure	6 kg./cm2
Max working temp	70 c (consistently)	Standard	As per manufacturer

Material Specification

No.	DESCRIPTION	MATERIAL	QTY.
1)	Body	Polypropylene	1
2)	Bonnet	Polypropylene	1
3)	Hand wheel	Polypropylene	1
4)	Diaphragm	Neoprene Rubber	1
5)	Compressor	PP	1
6)	Stem / Spindel	M.S. /Brass	1
7)	Nut	M.S./ S.S.	1
8)	Pin	M.S./ S.S.	1
9)	Bolt, Nut, Washer	M.S./ S.S.	REQ
10)	Cap	Polypropylene	1

Robust Polypropylene Construction

This diaphragm valve is crafted from high-quality polypropylene (PP), ensuring exceptional resistance to corrosion and chemical attack. Its sturdy construction extends lifespan and reliability, making it ideal for tough industrial settings. The white finish adds clarity for easy identification and maintenance in demanding environments, enhancing operational efficiency and safety.


Versatile Industrial & Water Applications

The valve is suitable for use in both industrial and water-related applications, thanks to its ability to handle medium pressure and wide temperature range. Its flanged ends provide a secure connection compatible with various pipeline systems. The design ensures reliable regulation of flow and isolation, making it valuable in sectors such as water treatment, chemical processing, and other utility applications where precision is crucial.
