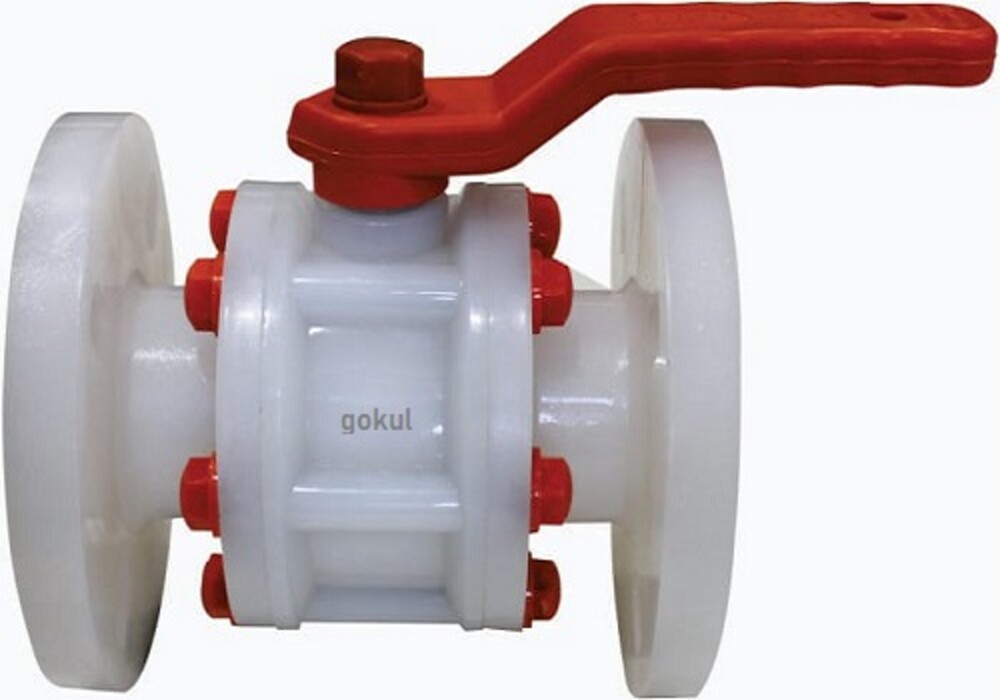

Gokul PP Ball valve Flange End 4"

Price 3000 INR/ Number

Get a Price/Quote

Gokul PP Ball valve Flange End 4" Specification

  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Channels
  • Intentional & Domestic Market
  • Connection
  • Flanged
  • Pressure
  • Medium Pressure
  • Structure
  • Ball
  • Usage
  • Industrial & Water Application
  • Material
  • Plastic
  • Media
  • Water
  • Size
  • 4"-100MM
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Ball Valve Flange End
  • Port Size
  • 4"-100MM
  • Color
  • White
  • Flange
  • 150 class
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Gokul PP Ball valve Flange End 4" Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Gokul PP Ball valve Flange End 4"

Technical Specification

Material Of Construction PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride) Construction 3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design 3 piece design Test pressure 08 kg./cm2
Max working temp 70 c (consistently) Size Range " 15MM TO 12ïï-315MM
Connection End Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD. Standard As per manufacturers

Material Specification

No. DESCRIPTION QTY. MATERIAL
1) Flanged end 2 PP / HDPE & PVDF
2) Body 1 PP / HDPE & PVDF
3) Ball 1 PP & PVDF
4) Stem/Spindal 1 Polypropylene With M.S. /S.S
5) Seat Ring 2 PTFE (TEF LON)
6) Body"O"Ring 2 Neoprene
7) Stem Seal Ring 1 PTFE (TEF LON)
8) Stem "O" Ring 1 Neoprene
9) Stud, Nut & Washer REQ M.S. Zinc Plated/S.S
10) Nut Cap REQ Polypropylene.
11) Handle 1 M.S. PP Coated.
12) Handle Hex. Pin 1 M.S./ S.S.
13) Handle Cap 1 Polypropylene.


Durable PP Ball Valve for Industrial Needs

Designed with a sturdy polypropylene body, the Gokul ball valve exhibits excellent resilience in demanding environments. Its ability to handle medium pressure and operate efficiently with water or other industrial media ensures dependable service for diverse market requirements.


Secure Flanged Connection

Enjoy easy installation and maintenance with the precision-engineered flanged end, compatible with 150 class flange standards. This design provides a strong, leak-proof connection that suits intentional and domestic market channels alike.

FAQs of Gokul PP Ball valve Flange End 4":


Q: How do I install the Gokul PP Ball Valve Flange End 4" in my pipeline system?

A: To install the Gokul PP Ball Valve with a flange end, align the valve ports with your pipeline flanges and use suitable bolts to secure them. Ensure the gasket is properly placed to prevent leakage, and tighten the bolts uniformly for optimal performance.

Q: What are the benefits of using a polypropylene ball valve in industrial and water applications?

A: Polypropylene provides excellent chemical and corrosion resistance, offering durability and longevity even in harsh environments. Its robust construction ensures reliable operation under medium pressure and at temperatures up to 80C.

Q: When is it suitable to use the Gokul PP Ball Valve for my applications?

A: This valve excels in situations demanding medium-pressure control for water and various industrial media, especially where the fluid temperature does not exceed 80C, and resistance to corrosion is critical.

Q: Where can I source the Gokul PP Ball Valve Flange End 4"?

A: Gokul Poly Valves Pvt Ltd is a leading manufacturer, exporter, supplier, and service provider based in India. You can source this valve directly from them or through authorized distribution channels serving both intentional and domestic markets.

Q: What process does Gokul Poly Valves Pvt Ltd use to ensure product quality?

A: Gokul Poly Valves Pvt Ltd adheres to stringent quality control protocols, utilizing advanced manufacturing techniques and materials that meet industry standards, ensuring that each valve delivers reliable and consistent performance.

Q: How is this valve used in water and industrial systems?

A: The Gokul PP Ball Valve regulates the flow of water and industrial fluids, offering precise shut-off capabilities. It is suitable for installation in new systems or for maintenance replacements in existing ones.

Q: What are the advantages of a flanged end connection in this ball valve?

A: A flanged end connection provides a secure way to attach the valve to pipelines, promoting leak prevention and simplifying maintenance. This design also accommodates easy removal or replacement without complex procedures.

Gokul PP Ball valve Flange End 4
Gokul PP Ball valve Flange End 4
Gokul PP Ball valve Flange End 4
Gokul PP Ball valve Flange End 4
Gokul PP Ball valve Flange End 4
Gokul PP Ball valve Flange End 4
Gokul PP Ball valve Flange End 4
Gokul PP Ball valve Flange End 4
Gokul PP Ball valve Flange End 4
Gokul PP Ball valve Flange End 4
Gokul PP Ball valve Flange End 4
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Ball Products Category

Pp Ball Valve Flange End 10

Pp Ball Valve Flange End 10"

Price 38720 INR / Number

Minimum Order Quantity : 20

Material : Plastic

Pressure : Medium Pressure

Structure : Ball

Size : 10"250mm

Get a Price/Quote
Polypropylene Nrv Valve

Polypropylene Nrv Valve

Price 1540 INR / Number

Minimum Order Quantity : 10

Material : Plastic

Pressure : Medium Pressure

Structure : Ball

Size : 1" To 12"

Get a Price/Quote

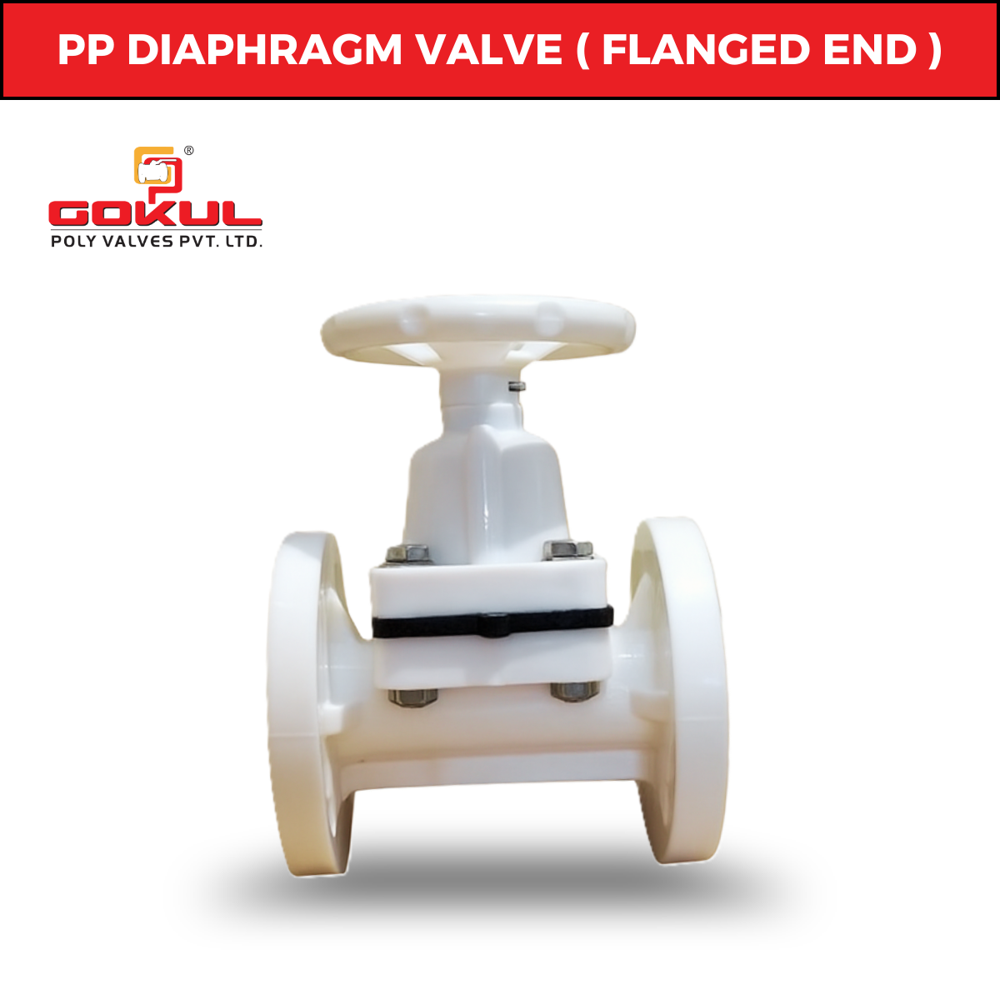

Flange End Polypropylene Diaphragm Valve 1
