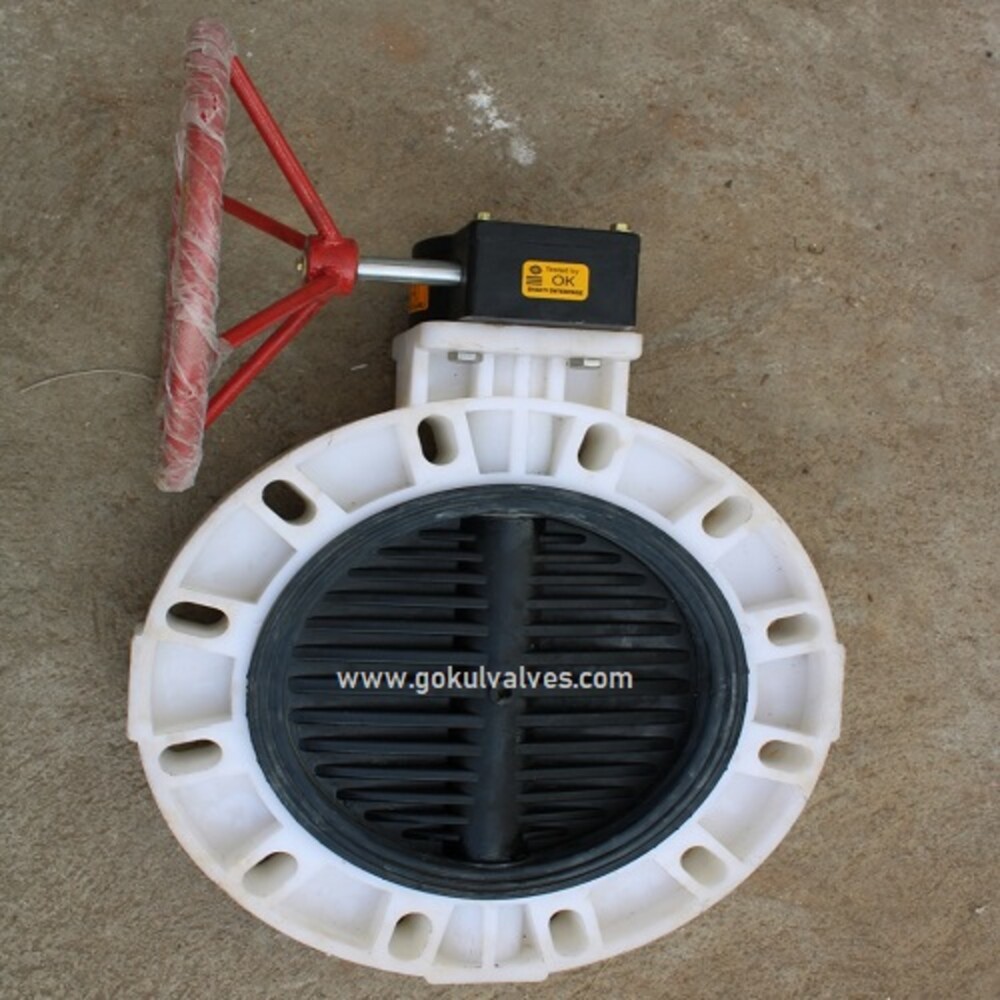

Gokul PP Butterfly Valve Gear Operated

About Gokul PP Butterfly Valve Gear Operated

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	One piece body
Design	Waffer dise design	Test pressure	10kg upto 4ïï 6kg above 4ï
Max working temp	70 c (consistently)	Size Range	2ï-50MM TO 12ïï-315MM
Connection End	Flanged as per ANSI B 16.5 (150#)	Standard	As per manufacturer

Material Specification

No.	DESCRIPTION	MATERIAL	QTY.
1)	Body	Polypropylene	1
2)	Disk	Polypropylene	1
3)	Stem "O" Ring.	Neoprene Rubber	2
4)	Stem	S.S.	1
5)	Hinge pin	S.S.	1
6)	Cap	S.S.	1
7)	Hundle	Polypropylene	1
8)	Spring	S.S.	1
9)	Hundle pin	S.S.	1
10)	Positioner lever	S.S.	1
11)	Handle cap	Polypropylene	1
12)	Positioner plater	S.S.	1

Reliable Flow Control for Industrial Needs

The Gokul PP Butterfly Valve Gear Operated stands out for its sturdy polypropylene construction and adaptability to both hand lever and gear operation. Its ability to withstand temperatures up to 80C and medium pressure makes it a dependable choice for controlling water flow in industrial settings or large-scale domestic applications. With a user-friendly design, this valve ensures seamless and efficient fluid management.


Versatility in Operation and Application

This butterfly valves compact 2-inch size and compatibility with both hand lever and gear mechanisms provide flexibility in installation and operation. Its robust structure and moderate temperature capacity make it suitable for a wide range of industrial and water-related applications, meeting the demands of diverse sectors efficiently.
