PP Non Return Valve Screwed End PP Non Return Valve Screwed End PP Non Return Valve Screwed End PP Non Return Valve Screwed End PP Non Return Valve Screwed End PP Non Return Valve Screwed End

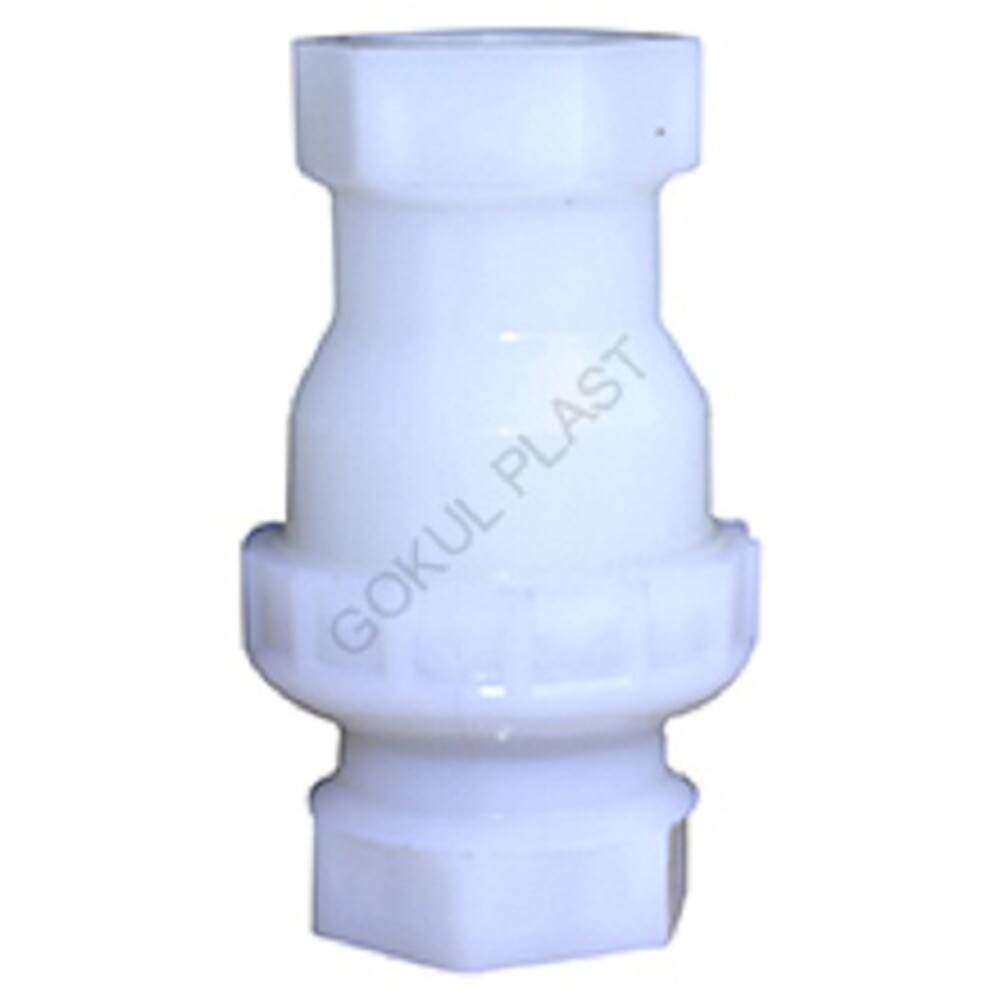

PP Non Return Valve Screwed End

320 INR/Number
Get a Price/Quote

Product Details:

  • Channels Intentional & Domestic Market
  • Caliber Gokul Poly Valves Pvt Ltd
  • Connection Screw End (BSP Threaded)
  • Structure Ball
  • Color White
  • Usage Industrial & Water Application
  • Size 1" To 4"
  • Click to view more
Request To Call Back Send Inquiry
X

PP Non Return Valve Screwed End Price And Quantity

  • 320 INR/Number
  • 10 Number
  • 320.00 - 320.00 INR/Number

PP Non Return Valve Screwed End Product Specifications

  • White
  • 1" To 4"
  • Industrial & Water Application
  • Water
  • PP Non Return Valve Screw End
  • Ball
  • industrial and water application
  • Medium Pressure
  • 80 Celsius (oC)
  • Plastic
  • Intentional & Domestic Market
  • Polypropylene (PP)
  • BSP Threaded
  • 1" To 4"
  • Gokul Poly Valves Pvt Ltd
  • Screw End (BSP Threaded)

PP Non Return Valve Screwed End Trade Information

  • Ahmedabad
  • Cash Advance (CA) Cash in Advance (CID) Cheque
  • 10 Number Per Day
  • 1 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Box Packing
  • Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
  • All India
  • ISO & Material Test Certificate

Product Description

Technical Specification

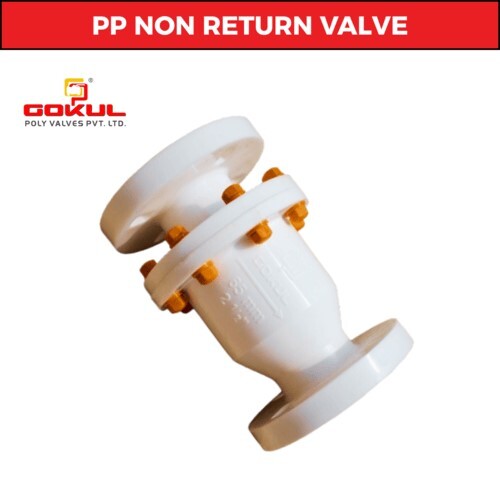

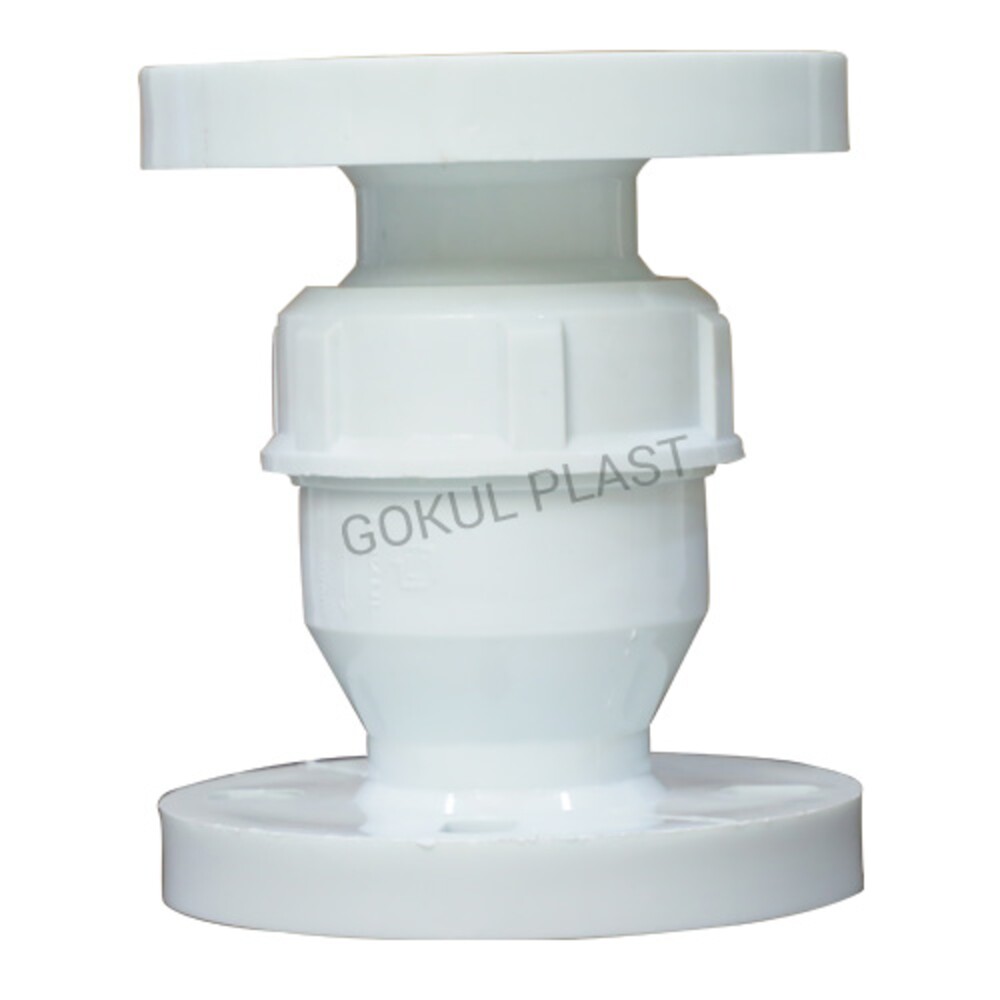

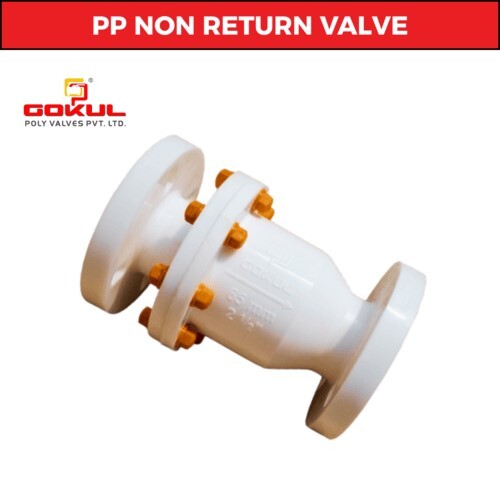

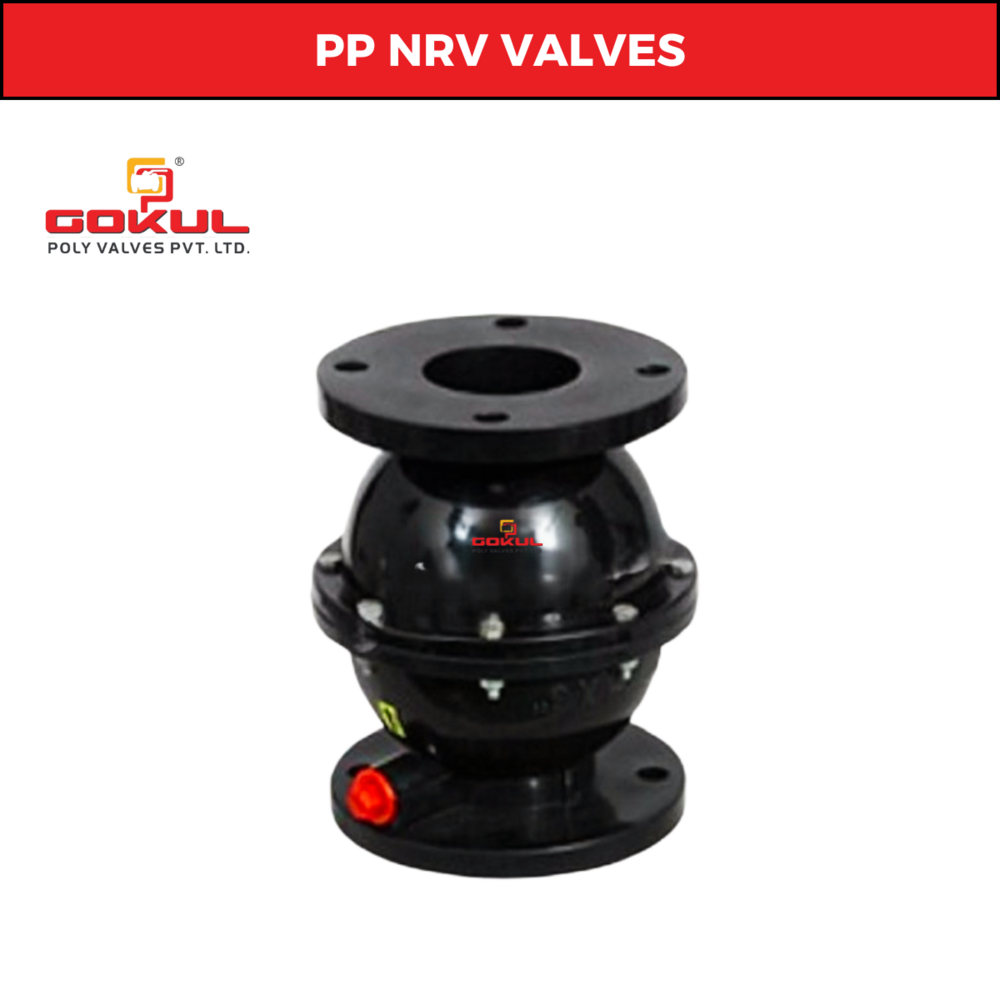

Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design
Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range 25MM to 315MM Test pressure 10 kg./cm2
Max working temp 70 c (consistently) Standard As per manufacturer

Material Specification

No. DESCRIPTION MATERIAL QTY
1) Top Body Polypropylene 1
2) Bottam Body Polypropylene 1
3) Ball Polypropylene 1
4) Ball Ring Polypropylene 1
5) Seat Ring Neoprene Rubber 1
6) Stud, Nut & Washer SS Req
