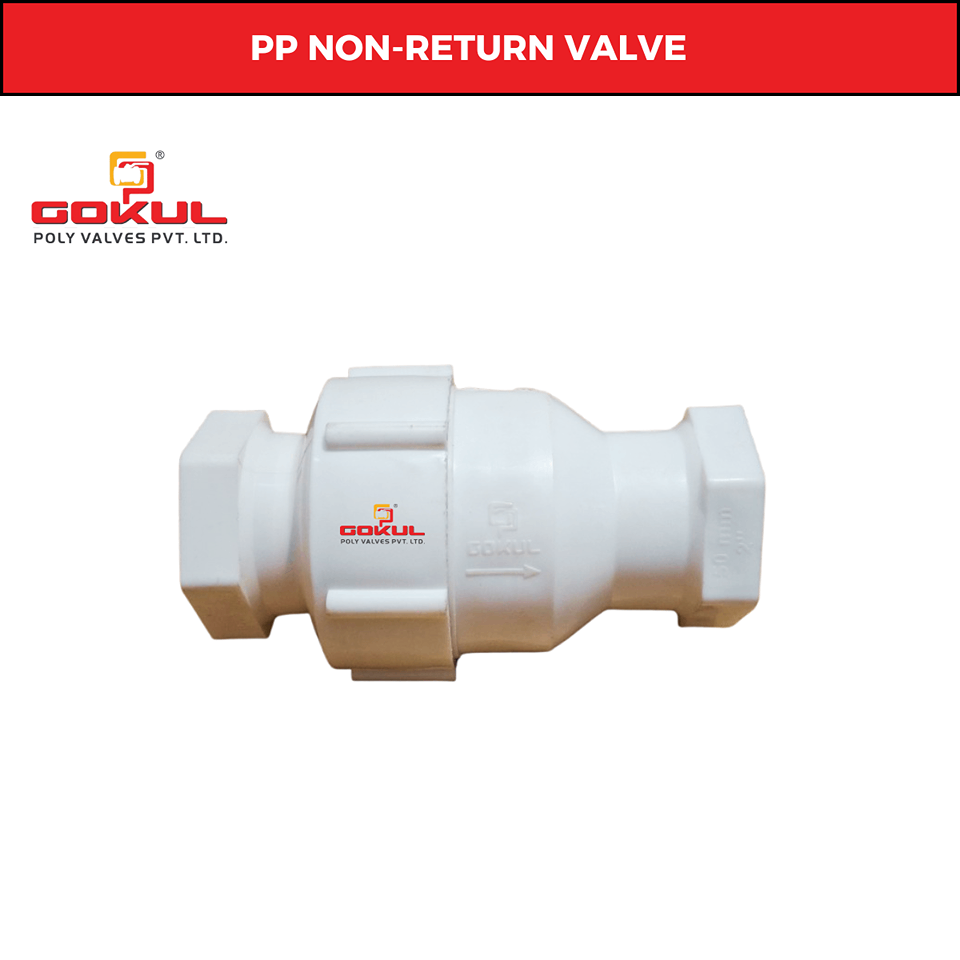

Gokul PP Non Return Valve Threaded End

Price 492 INR/ Number

Get a Price/Quote

Gokul PP Non Return Valve Threaded End Specification

Connection
Screw End (BSP Threaded)

Structure
Ball

Channels
Intentional & Domestic Market

Caliber
Gokul Poly Valves Pvt Ltd

Pressure
Medium Pressure

Material
Plastic

Usage
Industrial & Water Application

Size
1" To 4"

Media
Water

Temperature of Media
80 Celsius (oC)

Product Type
PP Non Return Valve Screw End

Port Size
1" To 4"

Color
White

Flange
BSP Threaded

Finish
Polypropylene (PP)

Application
industrial and water application

Gokul PP Non Return Valve Threaded End Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About Gokul PP Non Return Valve Threaded End

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY 1) Top Body Polypropylene 1 2) Bottam Body Polypropylene 1 3) Ball Polypropylene 1 4) Ball Ring Polypropylene 1 5) Seat Ring Neoprene Rubber 1 6) Stud, Nut & Washer SS Req

FAQs of Gokul PP Non Return Valve Threaded End:

Q: What is the material used in the Gokul PP Non Return Valve Threaded End?

A: The Gokul PP Non Return Valve Threaded End is made of plastic with a polypropylene (PP) finish.

Q: What is the applicable port size range for this non-return valve?

A: The applicable port size ranges from 1" to 4".

Q: What media temperature can the Gokul PP Non Return Valve withstand?

A: The valve is designed to handle media temperatures up to 80C.

Q: Which applications are suitable for the Gokul PP Non Return Valve Threaded End?

A: This valve is suitable for industrial and water applications.

Q: What type of connection does the valve feature?

A: The Gokul PP Non Return Valve Threaded End features a screw end connection with BSP threading.

Q: Is this valve suitable for both domestic and international markets?

A: Yes, the Gokul PP Non Return Valve is designed for both domestic and international markets.

Q: What is the pressure rating of this non-return valve?

A: The valve operates under medium pressure conditions.

Gokul PP Non Return Valve Threaded End

Gokul PP Non Return Valve Threaded End

Gokul PP Non Return Valve Threaded End

Gokul PP Non Return Valve Threaded End

Gokul PP Non Return Valve Threaded End

Gokul PP Non Return Valve Threaded End
