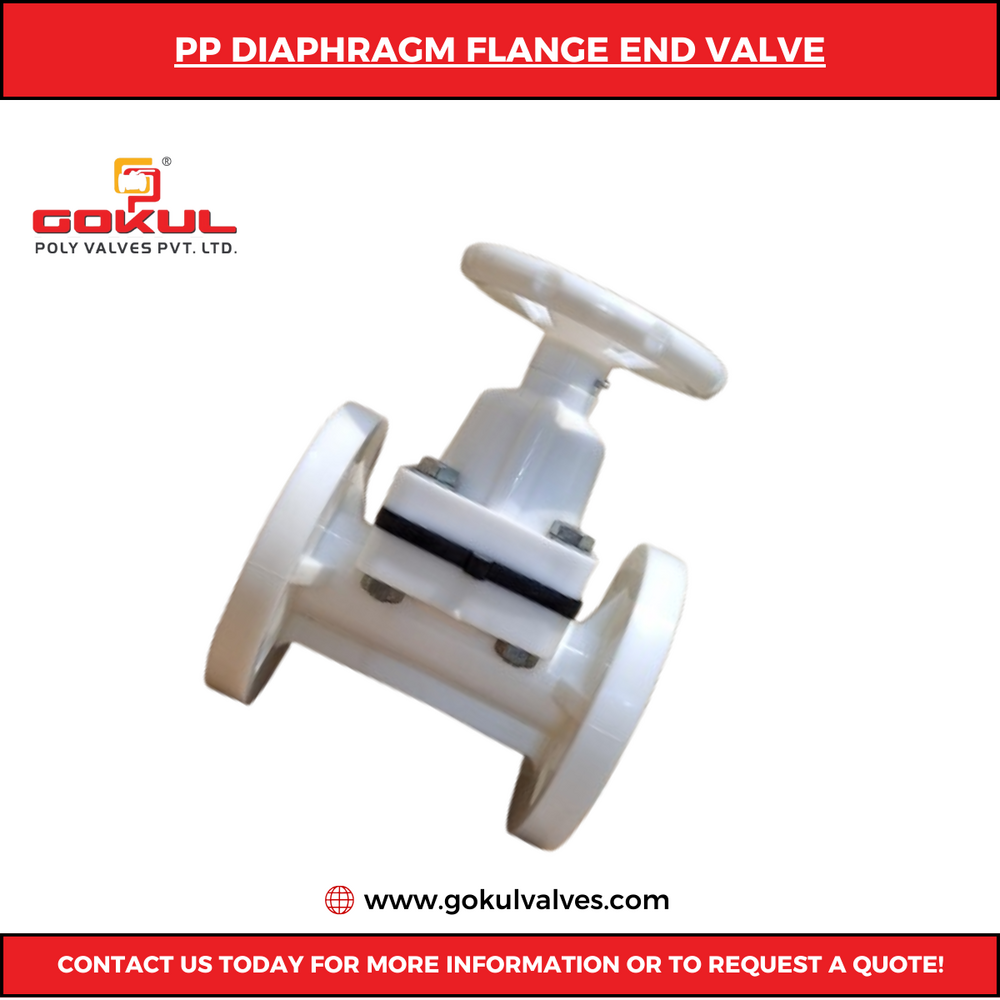

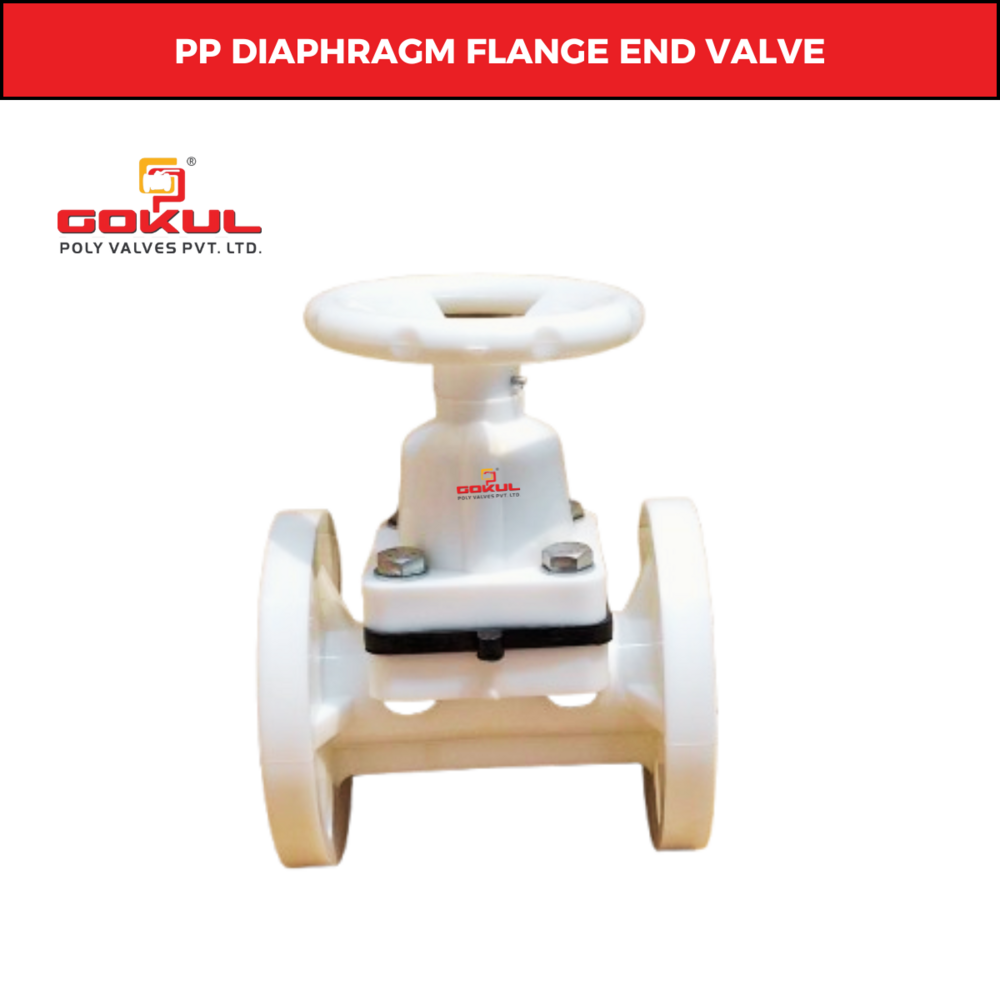

polypropylene Diaphragm Flange End Valve 2.5"

Price 1870 INR/ Number

Get a Price/Quote

polypropylene Diaphragm Flange End Valve 2.5" Specification

  • Channels
  • Intentional & Domestic Market
  • Connection
  • Flanged
  • Pressure
  • High Pressure
  • Structure
  • Ball
  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Material
  • Plastic
  • Usage
  • Industrial & Water Application
  • Size
  • 2.5"-63 mm
  • Media
  • Water
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Diaphragm Valve Flange End
  • Port Size
  • 2.5"-63mm
  • Flange
  • 150 class
  • Color
  • White
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


polypropylene Diaphragm Flange End Valve 2.5" Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About polypropylene Diaphragm Flange End Valve 2.5"

Technical Specification

Material Of Construction PP (Polypropylene) Construction weir type design,Soft seated, raising stem
Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range 15MM to 150MM Test pressure 6 kg./cm2
Max working temp 70 c (consistently) Standard As per manufacturer

Material Specification

No. DESCRIPTION MATERIAL QTY.
1) Body Polypropylene 1
2) Bonnet Polypropylene 1
3) Hand wheel Polypropylene 1
4) Diaphragm Neoprene Rubber 1
5) Compressor PP 1
6) Stem / Spindel M.S. /Brass 1
7) Nut M.S./ S.S. 1
8) Pin M.S./ S.S. 1
9) Bolt, Nut, Washer M.S./ S.S. REQ
10) Cap Polypropylene 1


Durable Polypropylene Construction

This valve uses high-grade polypropylene (PP), offering excellent chemical and corrosion resistance. Suited for both industrial and domestic settings, its durable build ensures operational safety and longevity even under high-pressure and elevated temperature conditions.


Efficient Flow Control for Multiple Applications

Designed with a robust flange end and a ball structure, this 2.5-inch valve provides precise regulation of water flow. It is ideal for water distribution systems, process industries, and other applications requiring leak-free performance and reliable shut-off capabilities.

FAQs of polypropylene Diaphragm Flange End Valve 2.5":


Q: How does the Polypropylene Diaphragm Flange End Valve support high-pressure water applications?

A: This valve is constructed with high-strength polypropylene and designed for 150-class flange connections, making it suitable for maintaining integrity and safety under high-pressure operations up to 80C in water and industrial applications.

Q: What is the recommended process for installing this 2.5-inch flange end valve?

A: To install, align the valves flanged ends with the pipeline flanges, ensure proper gasket placement, and bolt the assembly securely. Following manufacturer guidelines during installation helps ensure leak-proof performance and system longevity.

Q: When should this valve be used in industrial water systems?

A: This valve is ideal for controlling and isolating water flow in industrial systems whenever precise regulation, high durability, or resistance to chemical corrosion is required, particularly in processes demanding strong, reliable performance.

Q: Where can this polypropylene valve be effectively utilized?

A: It is well-suited for industrial and water treatment plants, domestic water distribution networks, and facilities handling corrosive or high-temperature media due to its chemical-resistant material and robust construction.

Q: What benefits does a polypropylene construction deliver in valve applications?

A: Polypropylene offers excellent resistance to corrosion and chemicals, lightweight handling, and durability, helping to reduce maintenance costs and prolong service life, especially when compared to metal or other plastic alternatives.

Q: How does the ball-type structure enhance functionality in this diaphragm valve?

A: The internal ball structure ensures smooth and precise operation, allowing for efficient shut-off and regulation of media flow, thereby minimizing leakage and enhancing overall system reliability.

polypropylene Diaphragm Flange End Valve 2.5
polypropylene Diaphragm Flange End Valve 2.5
polypropylene Diaphragm Flange End Valve 2.5
polypropylene Diaphragm Flange End Valve 2.5
polypropylene Diaphragm Flange End Valve 2.5
polypropylene Diaphragm Flange End Valve 2.5
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Ball Products Category

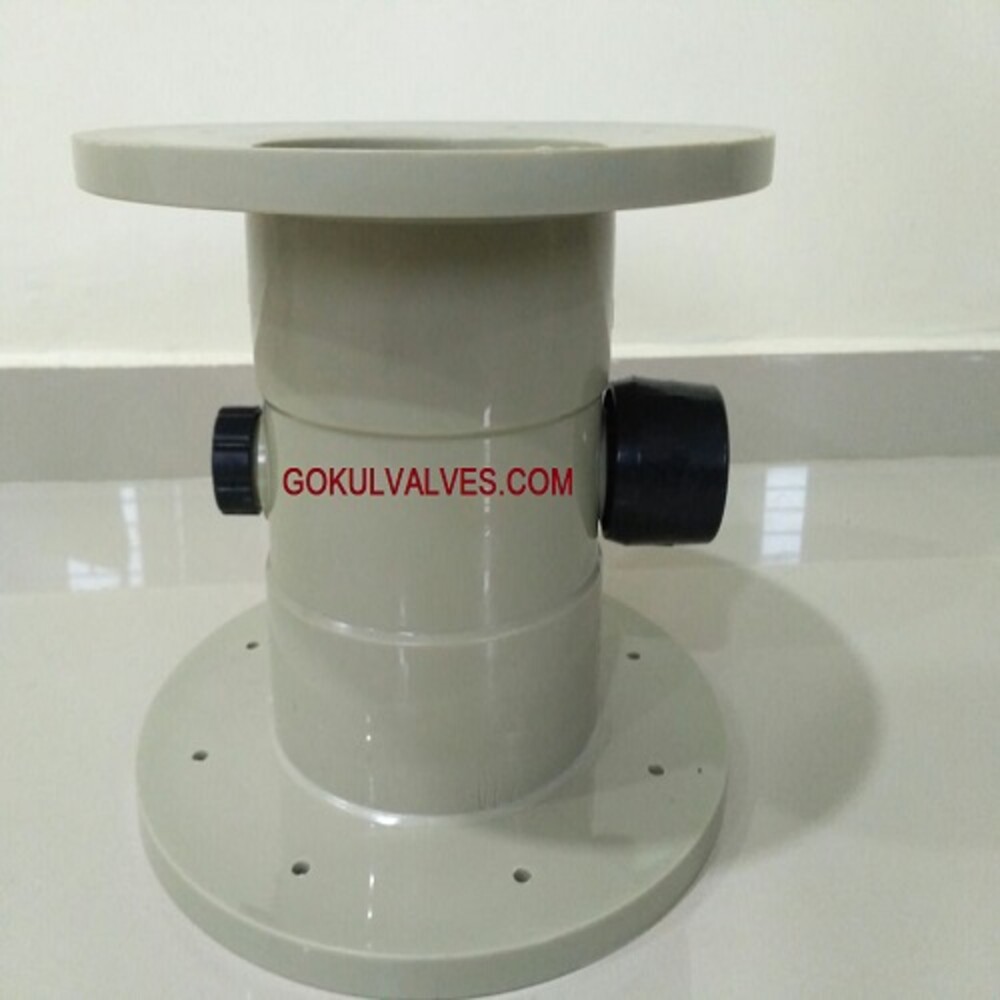

Gokul Polypropylene Sight Glass Valve
