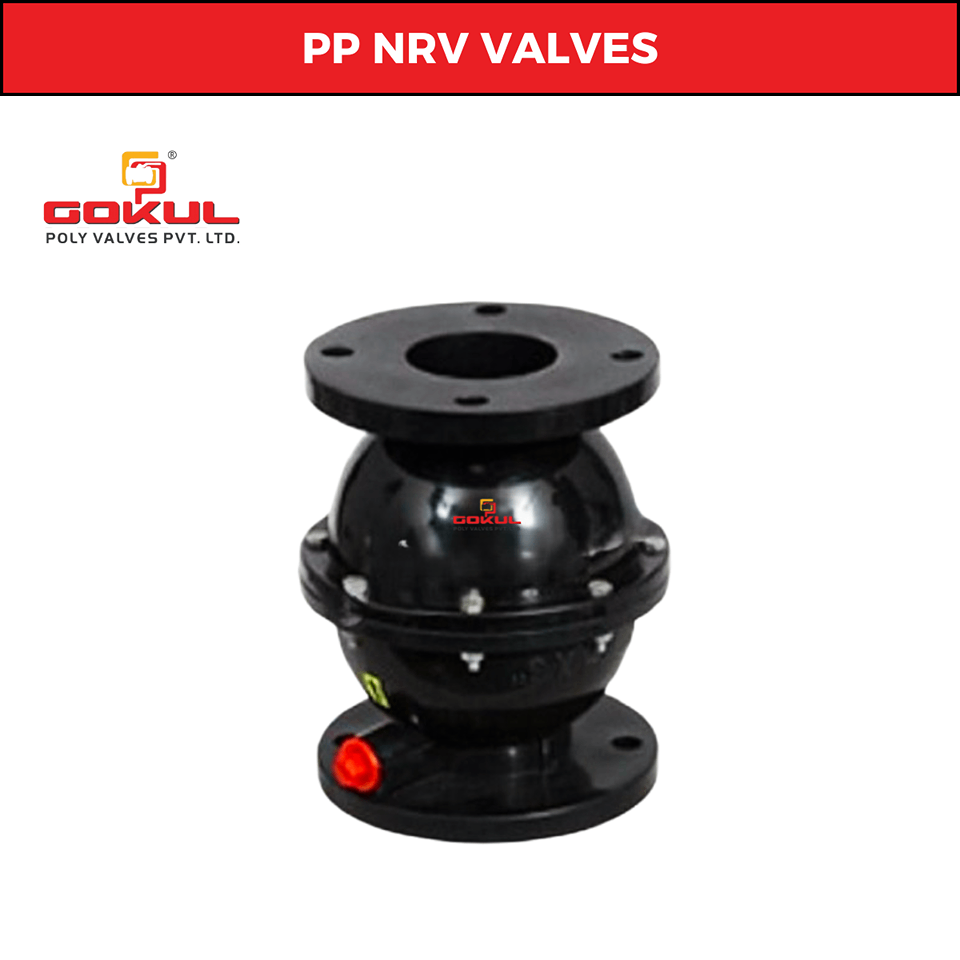

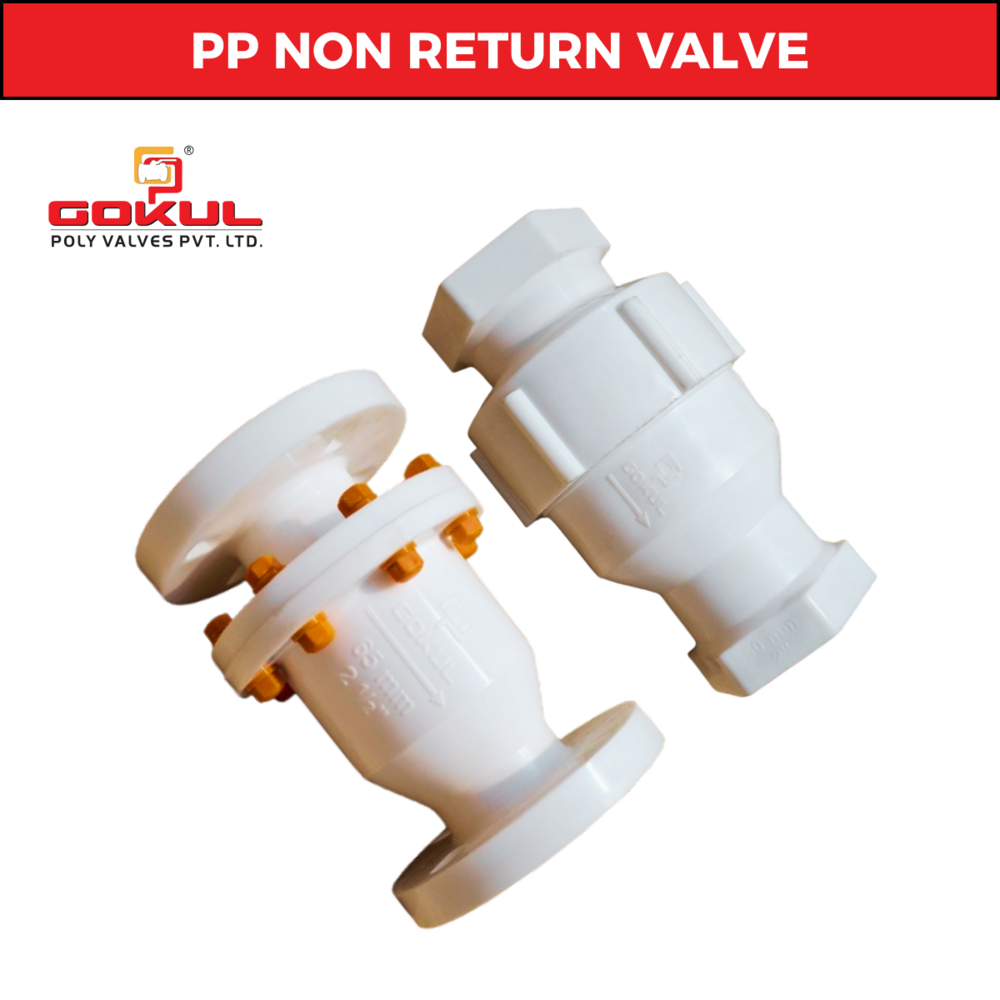

Gokul PP NRV

About Gokul PP NRV

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	Ball type design, soft seated, 2 Piece Design
Design	2 Piece Design	Connection End	Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range	25MM to 315MM	Test pressure	10 kg./cm2
Max working temp	70 c (consistently)	Standard	As per manufacturer

Material Specification

No.	DESCRIPTION	MATERIAL	QTY.
1)	Top Body	Polypropylene	1
2)	Bottom body	Polypropylene	1
3)	Ball	Polypropylene	1
4)	Ball Ring	Polypropylene	1
5)	Seat Ring	Neoprene Rubber	1
6)	Stud, Nut & Washer	SS	Req.

Robust Design for Reliable Operation

The Gokul PP NRV features a flanged, ball-type structure engineered for consistent performance in both industrial and water applications. Its polypropylene material provides strength and resistance to harsh environments, ensuring a long lifespan and minimal maintenance over time.


Versatile Sizing and Application

With sizes available from 1" to 12" and a 150-class flange, this polypropylene NRV accommodates various pipe diameters and setups. Its versatility makes it suitable for diverse water distribution systems, wastewater treatment plants, and other fluid control applications.


Efficient Non-Return Mechanism

Utilizing a ball structure, the Gokul PP NRV efficiently prevents backflow, protecting equipment and maintaining system integrity. The valves design ensures smooth, one-way flow even at medium pressures and operating temperatures up to 80C.
