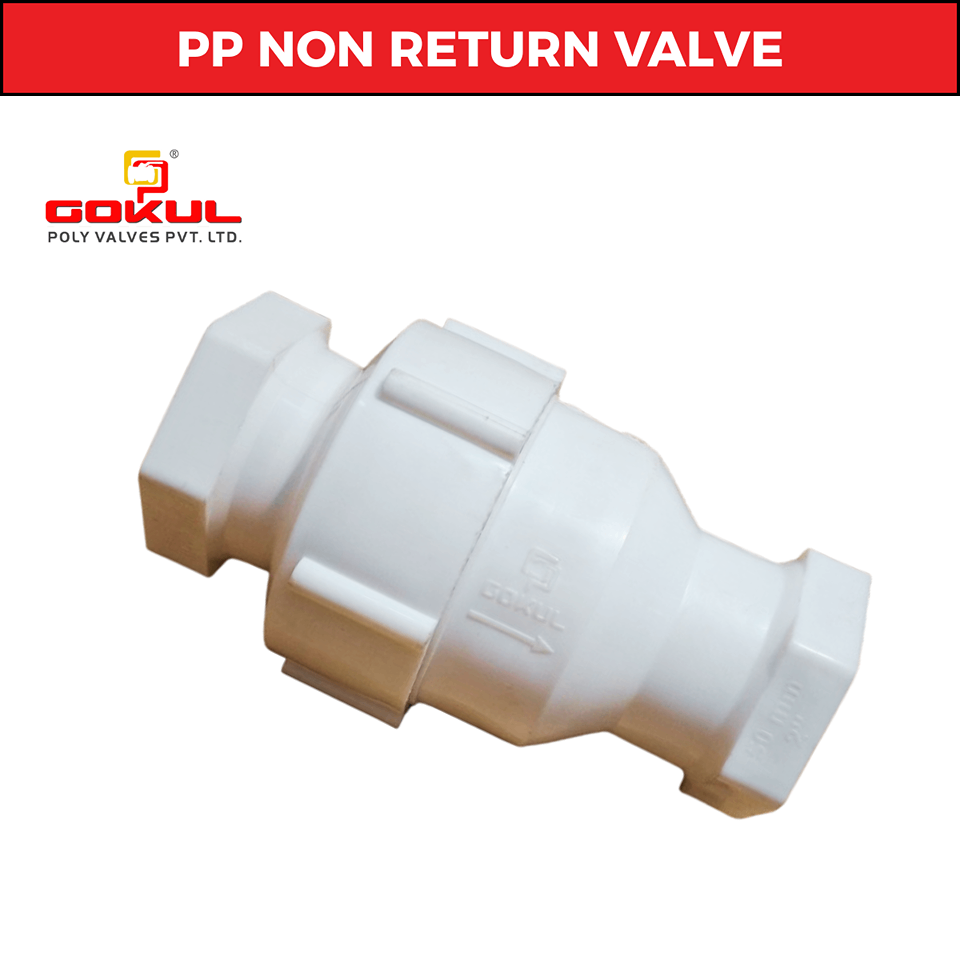

Gokul PP Screwed Non Return Valve

355 INR/Number

Product Details:

  • Connection Screw End (BSP Threaded)
  • Channels Intentional & Domestic Market
  • Pressure Medium Pressure
  • Color White
  • Size 1" To 4"
  • Usage Industrial & Water Application
  • Product Type PP Non Return Valve Screw End
  • Click to view more
X

Gokul PP Screwed Non Return Valve Price And Quantity

  • 355.00 - 355.00 INR/Number
  • 355 INR/Number
  • 10 Number

Gokul PP Screwed Non Return Valve Product Specifications

  • White
  • Polypropylene (PP)
  • Medium Pressure
  • Water
  • BSP Threaded
  • Screw End (BSP Threaded)
  • Intentional & Domestic Market
  • Plastic
  • 80 Celsius (oC)
  • Ball
  • PP Non Return Valve Screw End
  • Gokul Poly Valves Pvt Ltd
  • 1" To 4"
  • Industrial & Water Application
  • 1" To 4"
  • industrial and water application

Gokul PP Screwed Non Return Valve Trade Information

  • Ahmedabad
  • Cash Advance (CA) Cash in Advance (CID) Cheque
  • 10 Number Per Day
  • 1 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Box Packing
  • Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
  • All India
  • ISO & Material Test Certificate

Product Description

Technical Specification

Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design
Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range 25MM to 315MM Test pressure 10 kg./cm2
Max working temp 70 c (consistently) Standard As per manufacturer

Material Specification

No. DESCRIPTION MATERIAL QTY
1) Top Body Polypropylene 1
2) Bottam Body Polypropylene 1
3) Ball Polypropylene 1
4) Ball Ring Polypropylene 1
5) Seat Ring Neoprene Rubber 1
6) Stud, Nut & Washer SS Req.
