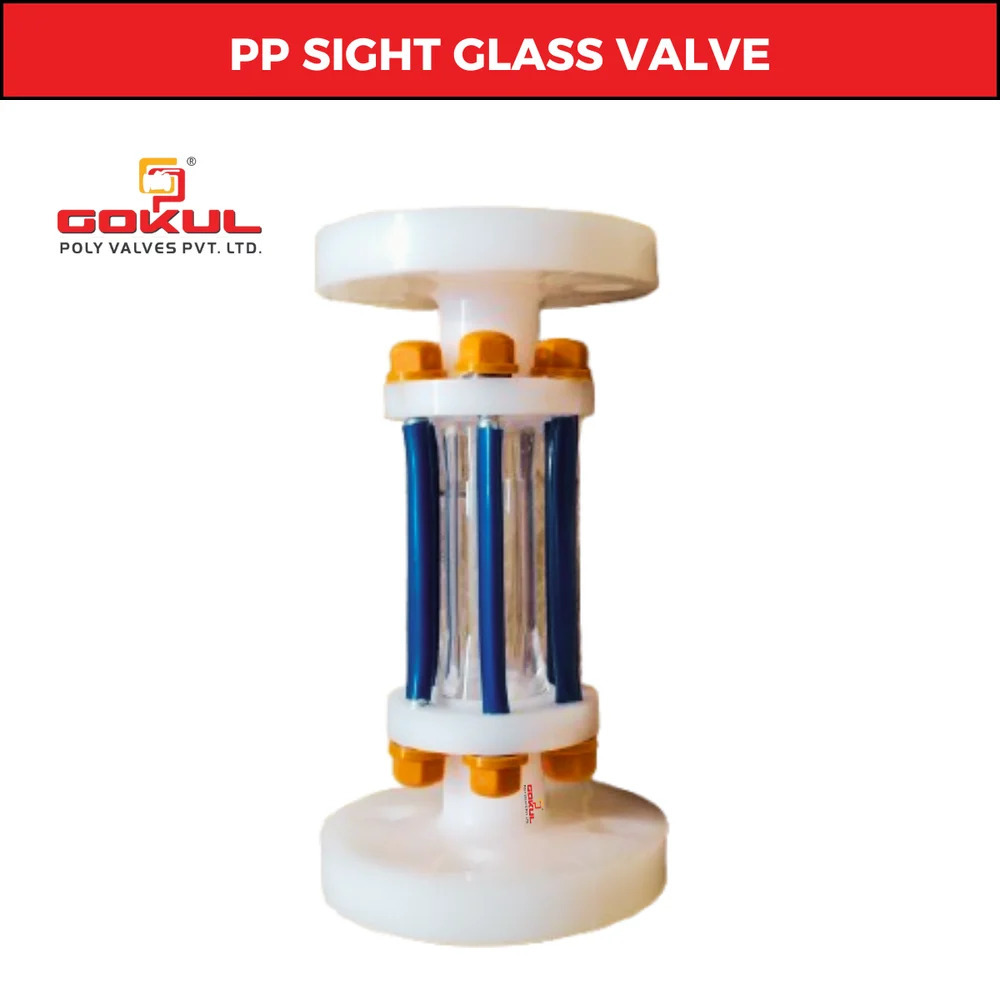

Gokul PP Sight Glass Valve Flanged

Price 2100 INR/ Number

Get a Price/Quote

Gokul PP Sight Glass Valve Flanged Specification

  • Structure
  • Ball
  • Pressure
  • Medium Pressure
  • Channels
  • Intentional & Domestic Market
  • Connection
  • Flanged
  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Material
  • Plastic
  • Usage
  • Industrial & Water Application
  • Size
  • 1/2" To 12"
  • Media
  • Water
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Sight Glass Valve / PP Flow Indicator Valve
  • Port Size
  • 1/2" To 12"
  • Color
  • White
  • Flange
  • 150 class
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Gokul PP Sight Glass Valve Flanged Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Gokul PP Sight Glass Valve Flanged

Technical Specification Material Of Construction PP (Polypropylene) Construction 3 piece design, full bore, Tef lon seated, borosil glass Design 3 piece design Test pressure 8kg Max working temp 60 c (consistently) Size Range 15MM TO 12-315MM Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Side Piece/ Connector Polypropylene 2 2) Glss Tube Glass ( BOROSIL) 1 3) Crisent Ring PTFE (Tef lon) 2 4) Stud M.S./ S.S. REQ 5) Nuts wisher M.S./ S.S. REQ 6) Nut Cap Polypropylene REQ 7) Stud Tube PP / PVC Coated REQ

FAQs of Gokul PP Sight Glass Valve Flanged:


Q: What size options are available for the Gokul PP Sight Glass Valve Flanged?

A: The Gokul PP Sight Glass Valve Flanged is available in sizes ranging from 1/2" to 12".

Q: What is the maximum temperature of media that this valve can handle?

A: The valve can handle a maximum temperature of 80 Celsius (oC).

Q: What material is used in the construction of the Gokul PP Sight Glass Valve Flanged?

A: The valve is made of polypropylene (PP) plastic.

Q: What type of connection is used in this valve design?

A: The Gokul PP Sight Glass Valve Flanged uses a flanged connection.

Q: What are the primary usage applications for this valve?

A: The valve is primarily used for industrial and water applications.

Q: What is the pressure rating for this valve?

A: The Gokul PP Sight Glass Valve Flanged is designed for medium pressure applications.

Q: What flange standard is incorporated into the valve?

A: The valve features a 150 class flange.

Gokul PP Sight Glass Valve Flanged
Gokul PP Sight Glass Valve Flanged
Gokul PP Sight Glass Valve Flanged
Gokul PP Sight Glass Valve Flanged
Gokul PP Sight Glass Valve Flanged
Gokul PP Sight Glass Valve Flanged
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Ball Products Category

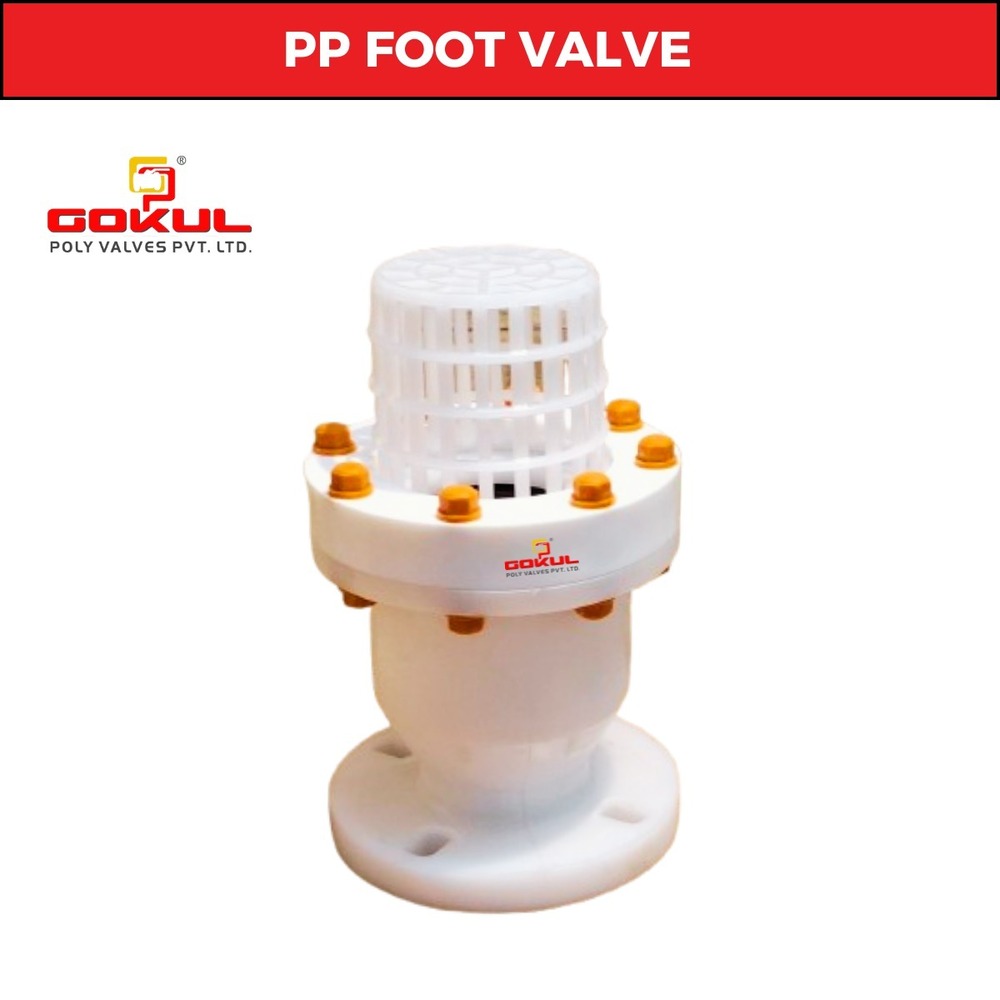

PP Foot Valve Flange End 3
