Gokul Polypropylene Diaphragm Valve Flange End 6 Gokul Polypropylene Diaphragm Valve Flange End 6 Gokul Polypropylene Diaphragm Valve Flange End 6 Gokul Polypropylene Diaphragm Valve Flange End 6 Gokul Polypropylene Diaphragm Valve Flange End 6 Gokul Polypropylene Diaphragm Valve Flange End 6

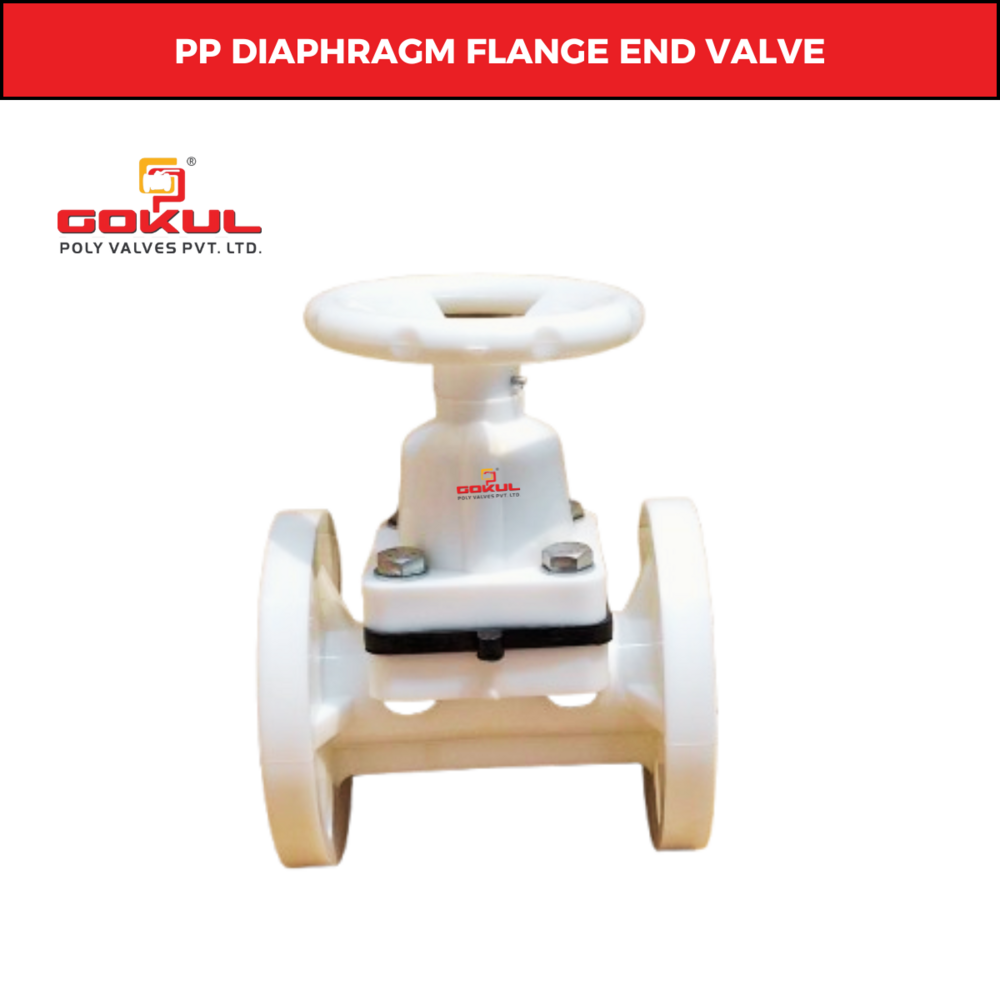

Gokul Polypropylene Diaphragm Valve Flange End 6"

21800 INR/Number
Get a Price/Quote

Product Details:

  • Structure Ball
  • Pressure Medium Pressure
  • Size 6"-150MM
  • Product Type PP Diaphragm Valve Flange End
  • Color White
  • Connection Flanged
  • Usage Industrial & Water Application
  • Click to view more
Request To Call Back Send Inquiry
X

Gokul Polypropylene Diaphragm Valve Flange End 6" Price And Quantity

  • 21800 INR/Number
  • 10 Number

Gokul Polypropylene Diaphragm Valve Flange End 6" Product Specifications

  • industrial and water application
  • Gokul Poly Valves Pvt Ltd
  • Intentional & Domestic Market
  • 150 class
  • Industrial & Water Application
  • Plastic
  • Flanged
  • 6"150MM
  • White
  • PP Diaphragm Valve Flange End
  • 80 Celsius (oC)
  • 6"-150MM
  • Ball
  • Water
  • Polypropylene (PP)
  • Medium Pressure

Gokul Polypropylene Diaphragm Valve Flange End 6" Trade Information

  • Ahmedabad
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • 10 Number Per Day
  • 1 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Box Packing
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • All India
  • ISO & Material Test Certificate

Product Description

Technical Specification Material Of Construction PP (Polypropylene) Construction weir type design,Soft seated, raising stem Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 15MM to 150MM Test pressure 6 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Body Polypropylene 1 2) Bonnet Polypropylene 1 3) Hand wheel Polypropylene 1 4) Diaphragm Neoprene Rubber 1 5) Compressor PP 1 6) Stem / Spindel M.S. /Brass 1 7) Nut M.S./ S.S. 1 8) Pin M.S./ S.S. 1 9) Bolt, Nut, Washer M.S./ S.S. REQ 10) Cap Polypropylene 1

FAQs of Gokul Polypropylene Diaphragm Valve Flange End 6":


Q: What is the material used for the Gokul Polypropylene Diaphragm Valve Flange End 6"?

A: The valve is made from Polypropylene (PP), which is a durable plastic material.

Q: What type of connection does the valve utilize?

A: The valve uses a flanged connection for secure installation.

Q: What is the temperature limit of the media applicable for this valve?

A: The valve can handle media temperatures up to 80C.

Q: What are the primary applications of this valve?

A: The valve is designed for industrial and water applications.

Q: What is the port size for the Gokul Polypropylene Diaphragm Valve Flange End?

A: The valve has a port size of 6 inches or 150mm.

Q: Which pressure rating does this valve conform to?

A: The valve is suitable for medium pressure applications.

Q: What is the flange class for this valve?

A: The valve features a flange class of 150.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

Other Products in 'Ball Products' category

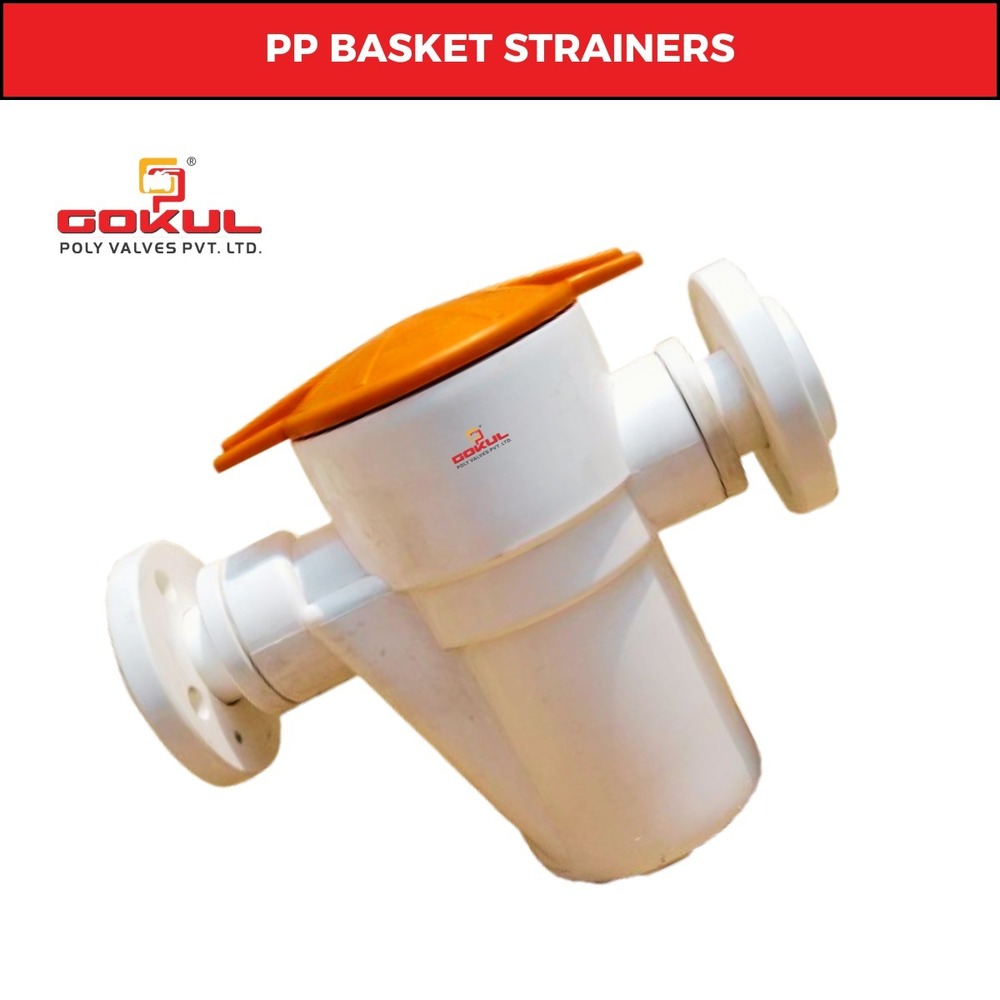

Gokul Polypropylene Fabricated Basket Strainer
