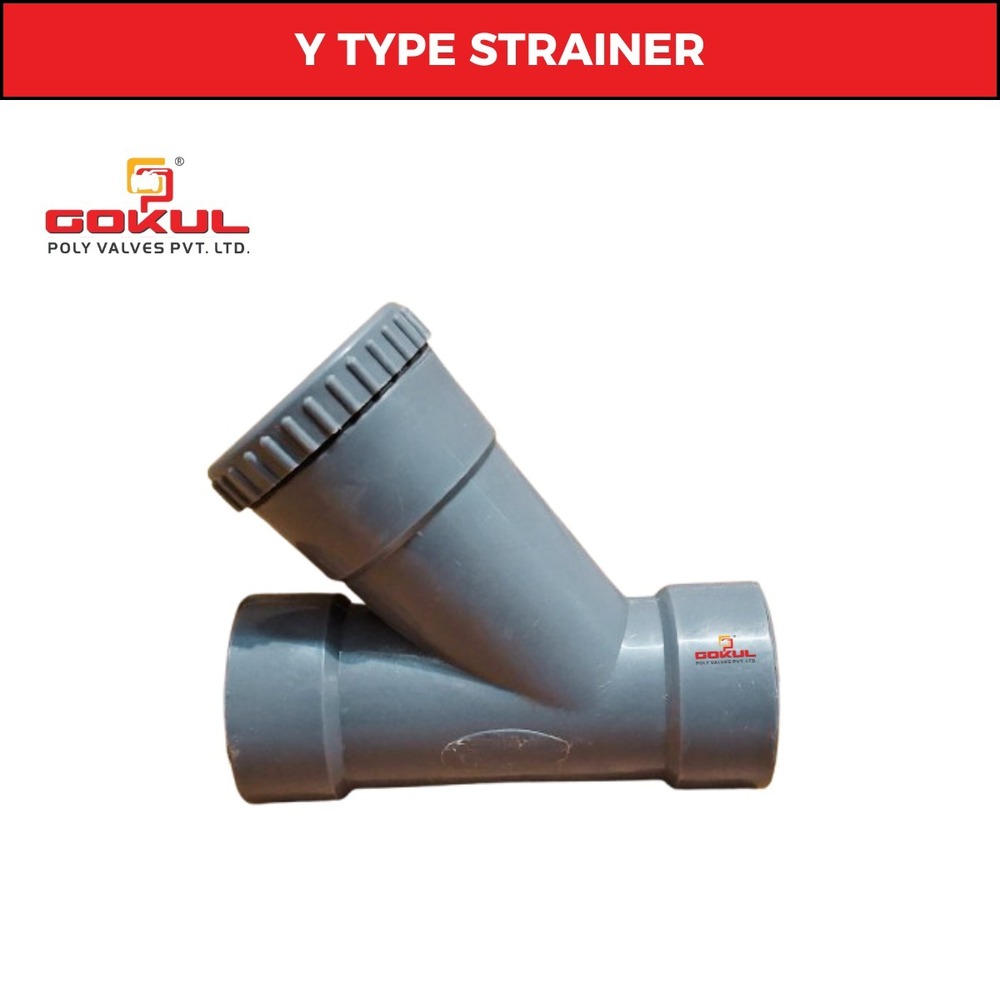

Flange End PP Y Strainer
Flange End PP Y Strainer
Flange End PP Y Strainer
Flange End PP Y Strainer
Flange End PP Y Strainer
Flange End PP Y Strainer
Flange End PP Y Strainer
Flange End PP Y Strainer
Flange End PP Y Strainer
Flange End PP Y Strainer
Flange End PP Y Strainer
Flange End PP Y Strainer

Flange End PP Y Strainer

Price 381 INR/ Number

Flange End PP Y Strainer Specification

  • Usage
  • Industrial & Water Application
  • Size
  • 1/2" to 6"
  • Product Type
  • PP Y Type Strainer Flange End
  • Color
  • Grey


Flange End PP Y Strainer Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Flange End PP Y Strainer

Technical Specification Material Of Construction PP (Polypropylene) We will also provide on request - screen 20,40,60,80, 100 &120 Mesh Design Single piece body Test pressure 8kg Max working temp 50 c (consistently) Size Range 15MM TO 4-100MM Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Body Polypropylene 1 2) Screen 60 Mesh pp Screen 1 3) Cover Polypropylene 1 4) Cover Gasket Neoprene Rubber 1 5) Side Piece Polypropylene 2 6) Flanges Polypropylene 2

FAQs of Flange End PP Y Strainer:


Q: What is the material used for the Flange End PP Y Strainer?

A: The Flange End PP Y Strainer is made of plastic, specifically Polypropylene (PP).

Q: What is the pressure rating for the Flange End PP Y Strainer?

A: The Flange End PP Y Strainer is designed for medium-pressure applications.

Q: What is the maximum temperature of media the Flange End PP Y Strainer can handle?

A: The Flange End PP Y Strainer can handle media temperatures up to 80C.

Q: What is the size range available for the Flange End PP Y Strainer?

A: The Flange End PP Y Strainer is available in sizes ranging from 1/2" to 6".

Q: What type of connection does the Flange End PP Y Strainer utilize?

A: The Flange End PP Y Strainer uses a flanged connection with a 150 class flange.
