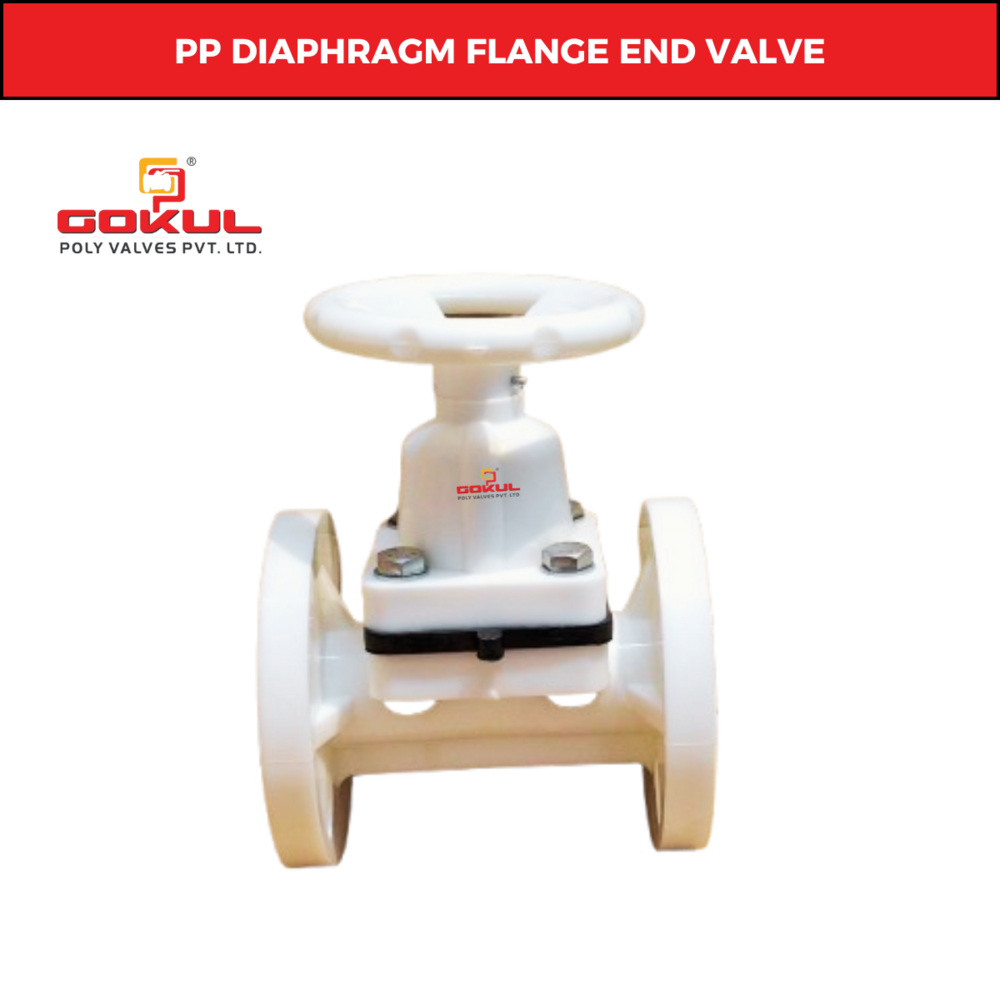

Polypropylene Diaphragm valve Flange End 6"

Price 21800 INR/ Number

Get a Price/Quote

Polypropylene Diaphragm valve Flange End 6" Specification

Usage
Industrial & Water Application

Size
6"-150MM

Product Type
PP Diaphragm Valve Flange End

Color
White

Polypropylene Diaphragm valve Flange End 6" Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About Polypropylene Diaphragm valve Flange End 6"

Technical Specification Material Of Construction PP (Polypropylene) Construction weir type design,Soft seated, raising stem Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 15MM to 150MM Test pressure 6 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Body Polypropylene 1 2) Bonnet Polypropylene 1 3) Hand wheel Polypropylene 1 4) Diaphragm Neoprene Rubber 1 5) Compressor PP 1 6) Stem / Spindel M.S. /Brass 1 7) Nut M.S./ S.S. 1 8) Pin M.S./ S.S. 1 9) Bolt, Nut, Washer M.S./ S.S. REQ 10) Cap Polypropylene 1

FAQs of Polypropylene Diaphragm valve Flange End 6":

Q: What is the size and port connection type of the Polypropylene Diaphragm Valve Flange End 6"?

A: The size of the valve is 6"-150MM, and the port connection type is flanged.

Q: What is the maximum temperature range the valve can handle for media?

A: The Polypropylene Diaphragm Valve Flange End 6" is suitable for media temperatures up to 80C.

Q: What material is used in the construction of this valve?

A: The valve is made from high-quality polypropylene (PP) plastic.

Q: What type of applications can this valve be used for?

A: This valve is designed for industrial and water applications.

Q: What pressure rating is suitable for this valve?

A: The valve works effectively under medium pressure conditions.

Q: What is the finish and color of this valve?

A: The valve has a polypropylene (PP) finish and comes in white color.

Q: What markets is this valve intended for?

A: The valve is designed for both intentional and domestic markets.
