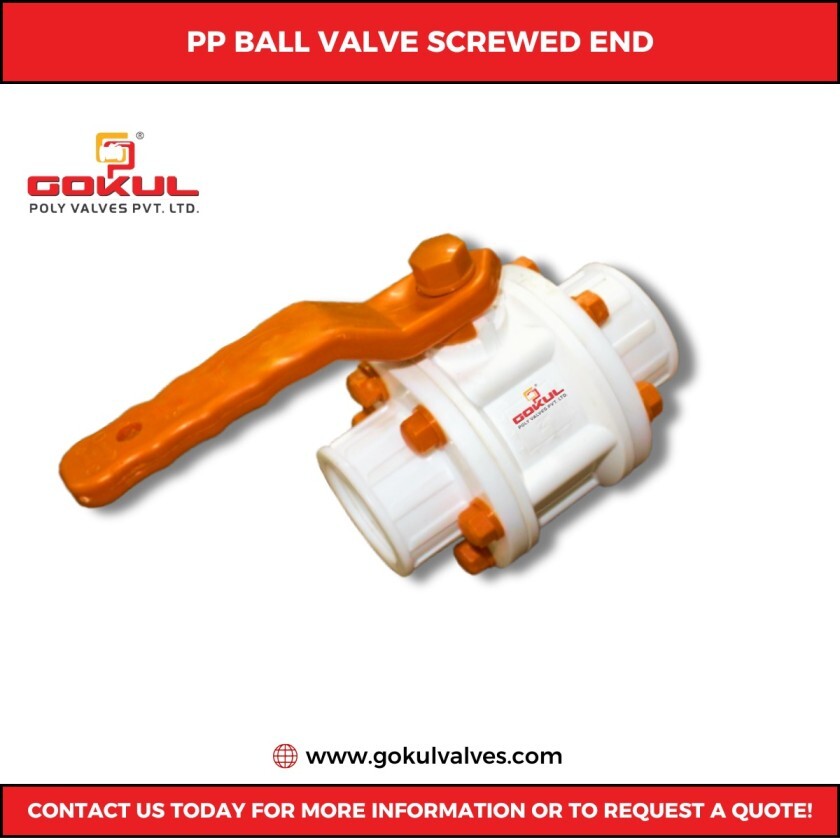

Gokul Polypropylene Ball Valve Screwed End

Price 290 INR/ Number

Get a Price/Quote

Gokul Polypropylene Ball Valve Screwed End Specification

Caliber
Gokul Poly Valves Pvt Ltd

Channels
Intentional & Domestic Market

Pressure
Medium Pressure

Connection
Screw End (BSP Threaded)

Structure
Ball

Material
Plastic

Usage
Industrial & Water Application

Media
Water

Size
1/2" To 4"

Temperature of Media
80 Celsius (oC)

Product Type
PP Screw End Ball Valve

Port Size
1/2" To 4"

Color
White

Flange
BSP Threaded

Finish
Polypropylene (PP)

Application
industrial and water application

Gokul Polypropylene Ball Valve Screwed End Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About Gokul Polypropylene Ball Valve Screwed End

Technical Specification Material Of Construction PP (Polypropylene) Construction 3 piece design, 1 piece stem (spindle), full bore, Tef lon seated Design 3 piece design Test pressure 08 kg./cm2 Max working temp 70 c (consistently) Size Range 15MM TO 100MM- 4 Connection End Screw end (BSP thread) Standard As per manufacturer Material Specification NO. DESCRIPTION QTY. MATERIAL 1) Flanged end 2 Polypropylene 2) Body 1 Polypropylene 3) Ball 1 Polypropylene 4) Stem/Spindal 1 Polypropylene With M.S. /S.S 5) Seat Ring 2 PTFE (TEF LON) 6) Body"O"Ring 2 Neoprene 7) Stem Seal Ring 1 PTFE (TEF LON) 8) Stem "O" Ring 1 Neoprene 9) Stud, Nut & Washer REQ M.S. Zinc Plated/S.S 10) Nut Cap REQ Polypropylene. 11) Handle 1 M.S. PP Coated. 12) Handle Hex. Pin 1 M.S./ S.S. 13) Handle Cap 1 Polypropylene.
