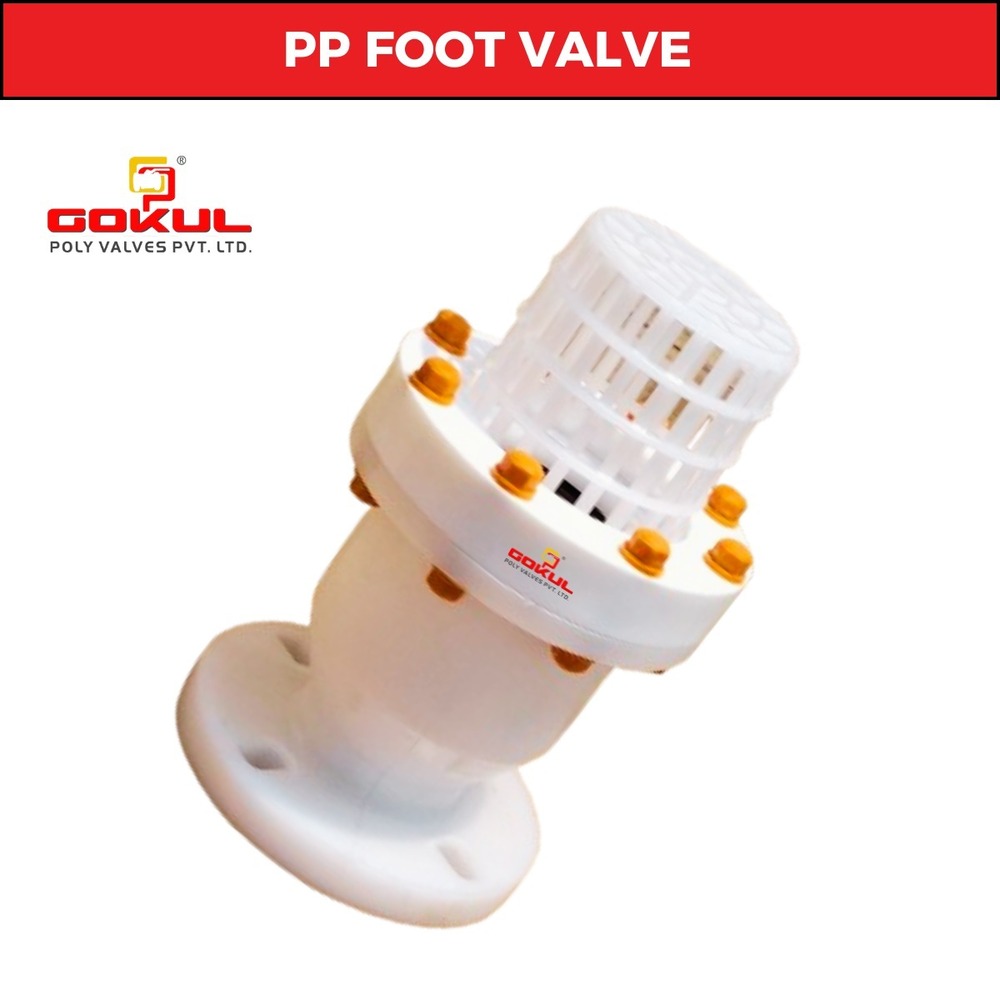

Gokul PP Foot Valve Flange Type
Gokul PP Foot Valve Flange Type
Gokul PP Foot Valve Flange Type
Gokul PP Foot Valve Flange Type
Gokul PP Foot Valve Flange Type
Gokul PP Foot Valve Flange Type
Gokul PP Foot Valve Flange Type
Gokul PP Foot Valve Flange Type
Gokul PP Foot Valve Flange Type
Gokul PP Foot Valve Flange Type
Gokul PP Foot Valve Flange Type
Gokul PP Foot Valve Flange Type
images Send Inquiry
Request To Call Back

Gokul PP Foot Valve Flange Type

Price 670 INR/ Number

Get a Price/Quote

Gokul PP Foot Valve Flange Type Specification

  • Pressure
  • Medium Pressure
  • Connection
  • Flanged
  • Channels
  • Intentional & Domestic Market
  • Structure
  • Ball
  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Material
  • Plastic
  • Usage
  • Industrial & Water Application
  • Size
  • 1" To 12"
  • Media
  • Water
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Foot Valve Flange End
  • Port Size
  • 1" To 12"
  • Flange
  • 150 class
  • Color
  • White
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Gokul PP Foot Valve Flange Type Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Gokul PP Foot Valve Flange Type

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION QTY MATERIAL 1) Top Body 1 Polypropylene 2) Bottam Body 1 Polypropylene 3) Screen 1 Polypropylene 4) Ball 1 Polypropylene 5) Ball Ring 1 Polypropylene 6) Seat Ring 1 Neoprene Rubber 7) Stud, Nut & Washer Req. SS

FAQs of Gokul PP Foot Valve Flange Type:


Q: What is the pressure rating for the Gokul PP Foot Valve Flange Type?

A: The Gokul PP Foot Valve Flange Type is rated for medium pressure applications.

Q: What is the maximum temperature of media the valve can handle?

A: The valve can handle media with a maximum temperature of up to 80C.

Q: What is the material used to manufacture the Gokul PP Foot Valve Flange Type?

A: The valve is made of polypropylene (PP) plastic material.

Q: What are the size options available for the Gokul PP Foot Valve Flange Type?

A: The valve is available in port sizes ranging from 1 inch to 12 inches.

Q: For what type of applications can this valve be used?

A: The valve is suitable for industrial and water applications.

Q: What type of connection is used in the Gokul PP Foot Valve Flange Type?

A: The valve comes with a flanged connection for easy installation.

Q: Which markets are served by this valve?

A: The valve is designed for both intentional and domestic markets.
