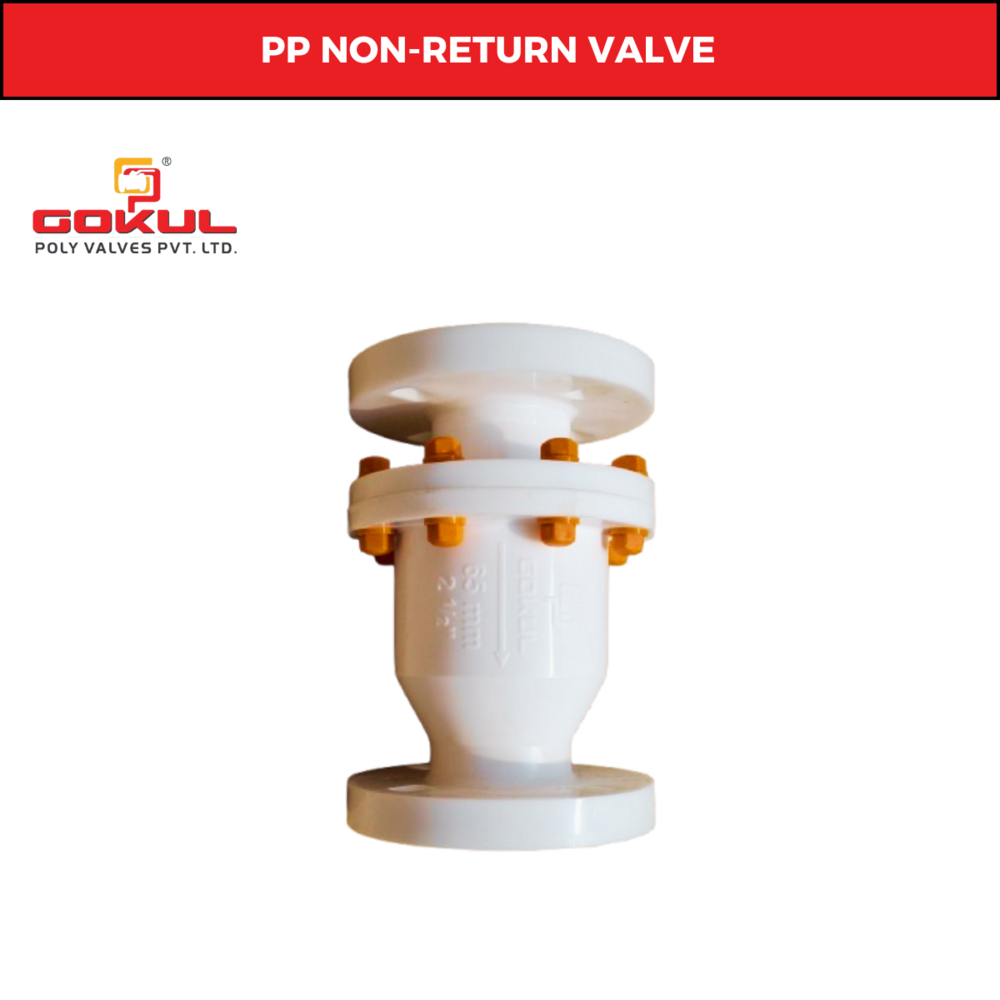

Gokul Screwed PP Non Return valve

Price 1340 INR/ Number

Get a Price/Quote

Gokul Screwed PP Non Return valve Specification

  • Structure
  • Ball
  • Pressure
  • Medium Pressure
  • Channels
  • Intentional & Domestic Market
  • Connection
  • Screw End (BSP Threaded)
  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Usage
  • Industrial & Water Application
  • Material
  • Plastic
  • Media
  • Water
  • Size
  • 1" To 4"
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Non Return Valve Screw End
  • Port Size
  • 1" To 4"
  • Color
  • White
  • Flange
  • BSP Threaded
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Gokul Screwed PP Non Return valve Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Gokul Screwed PP Non Return valve

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY 1) Top Body Polypropylene 1 2) Bottam Body Polypropylene 1 3) Ball Polypropylene 1 4) Ball Ring Polypropylene 1 5) Seat Ring Neoprene Rubber 1 6) Stud, Nut & Washer SS Req

FAQs of Gokul Screwed PP Non Return valve:


Q: What applications is the Gokul Screwed PP Non Return Valve suitable for?

A: The Gokul Screwed PP Non Return Valve is suitable for industrial and water applications.

Q: What is the connection type of the Gokul Screwed PP Non Return Valve?

A: The valve features a screw-end connection with BSP threaded flanges.

Q: What is the operating temperature of the media for this valve?

A: The valve operates with media at temperatures up to 80C.

Q: What is the structure of the valve?

A: The Gokul Screwed PP Non Return Valve has a ball structure.

Q: What is the size range of port availability for this valve?

A: The valve is available in port sizes ranging from 1" to 4".

Q: What material is used to construct the Gokul Screwed PP Non Return Valve?

A: The valve is constructed from polypropylene (PP) plastic.

Q: What pressure conditions can this valve handle?

A: The valve is designed to handle medium pressure conditions.

Gokul Screwed PP Non Return valve
Gokul Screwed PP Non Return valve
Gokul Screwed PP Non Return valve
Gokul Screwed PP Non Return valve
Gokul Screwed PP Non Return valve
Gokul Screwed PP Non Return valve
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Ball Products Category

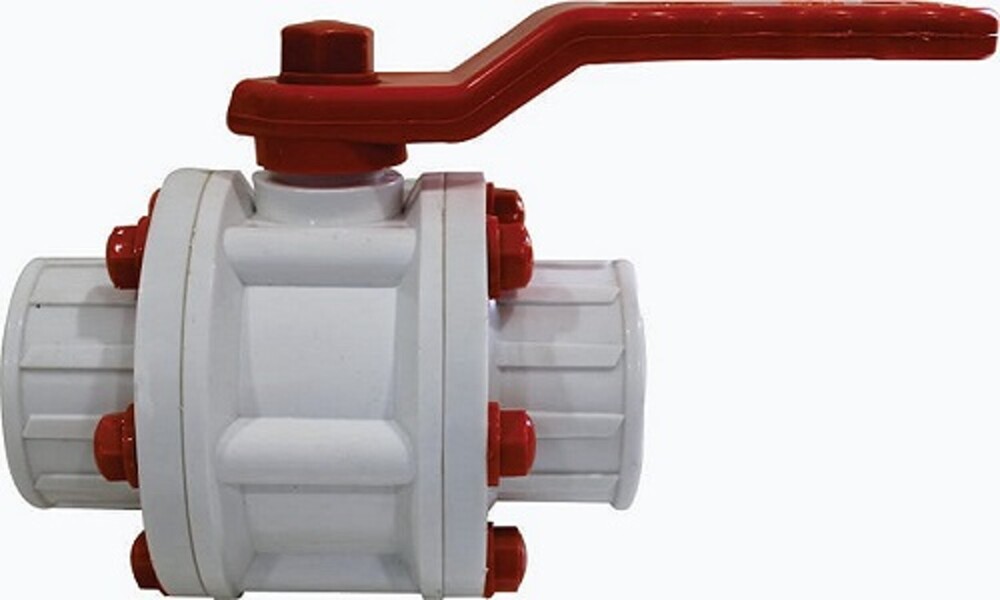

Polypropylene Ball Valve Screwed End

Polypropylene Ball Valve Screwed End

Price 360 INR / Number

Minimum Order Quantity : 20

Temperature of Media : 80 Celsius (oC)

Port Size : 1/2" To 4"

Application : industrial and water application

Material : Plastic

Get a Price/Quote

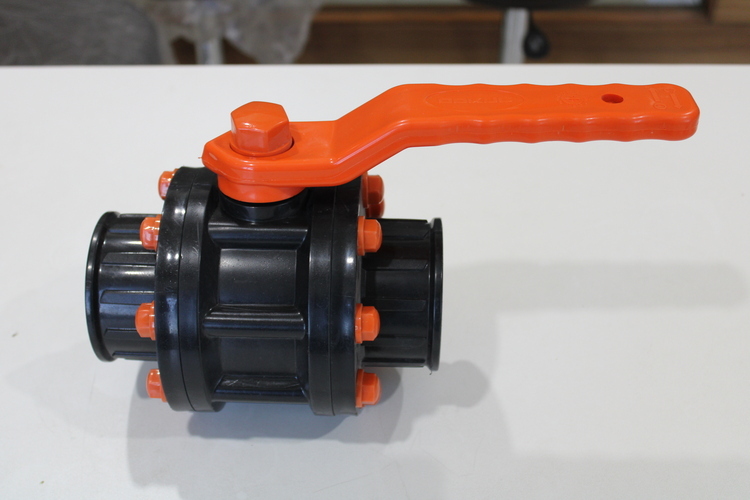

Gokul Polypropylene Three Piece Screwed End Ball Valve
