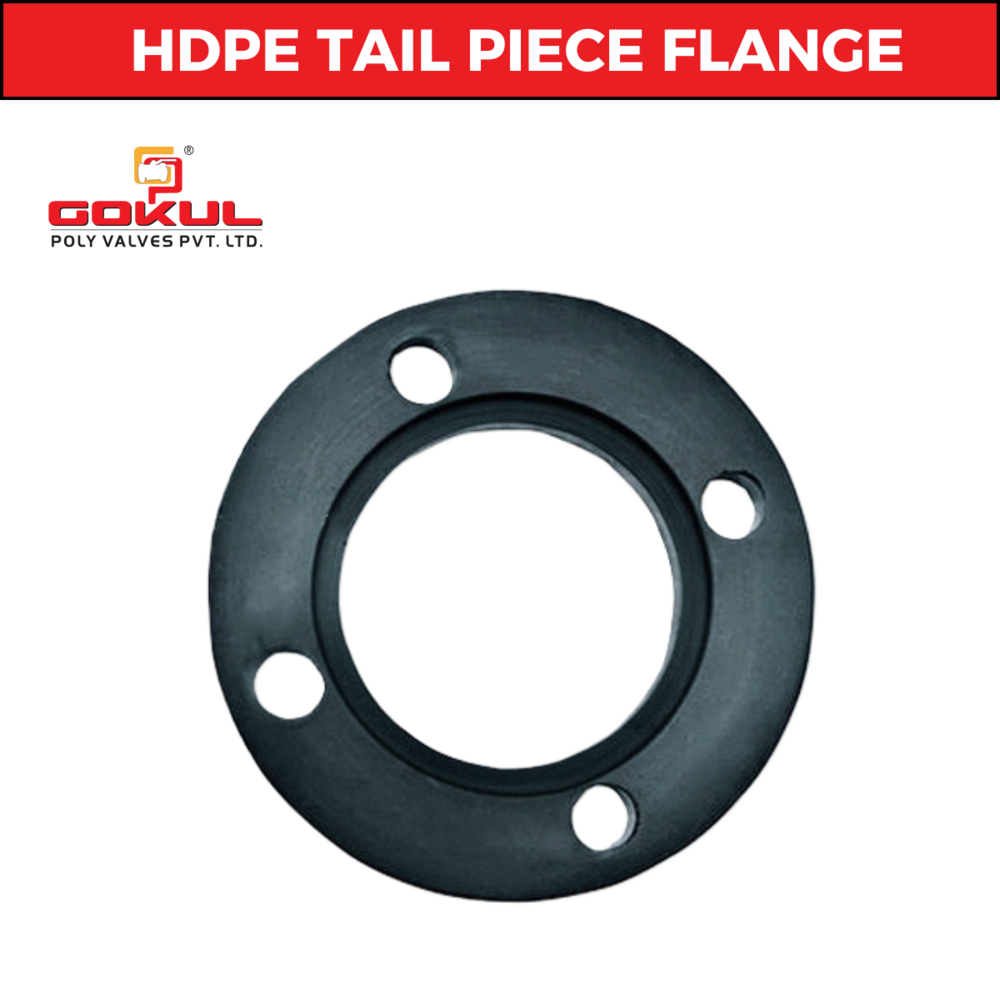

HDPE Flanges

Price 26 INR/ Piece

Get a Price/Quote
MOQ : 100 Pieces

HDPE Flanges Specification

  • Product Type
  • HDPE Flange
  • Material
  • HDPE
  • Connection
  • Bolted
  • Thickness
  • As per requirement
  • Standard
  • ANSI
  • Technics
  • Other
  • Surface Treatment
  • Other
  • Length
  • Customizable
  • Wall Thickness
  • As per specification
  • Nominal Pressure
  • 10 KG. kilometer/hr (KPH)
  • Color
  • BLACK
  • Size Range
  • 20 mm to 630 mm
  • Corrosion Resistance
  • Excellent
  • Bolt Hole Number
  • As per ANSI Standard
  • UV Resistance
  • High
  • Shape
  • Round
  • Tensile Strength
  • 23 MPa
  • Temperature Range
  • -40C to +80C
  • Application
  • Pipe Fittings, Water Supply, Chemical Industries
  • Manufacturing Process
  • Injection Moulded / Fabricated
  • Flange Pressure Class
  • PN10 / PN16
  • Density
  • 0.94 g/cm3



About HDPE Flanges

PP / HDPE Slip On Flange is manufactured using superior quality HDPE and can also be availed in a variety of sizes, designs and other specifications. This flange array is considered best for the applications where flow direction proceeds from smaller size to bigger size owing to its salient features like high strength, leakage proof, rust resistant, fine finish and sturdy design.


Specifications:

  • Size : 20MM OD to 630MM OD
  • Material : HDPE / PP / PPH
  • Brand : GOKUL
  • Type : FLANGE
  • Flange Type : HDPE SILIFON FLANGE
  • Rated Pressure :10 KG.
  • Material Standard : ANSI B16.5
  • Color : BLACK


Durability and Corrosion Resistance

HDPE Flanges are engineered to deliver outstanding durability and corrosion resistance, making them ideal for challenging industrial and water supply environments. The high-density polyethylene construction provides resilience against harsh chemicals, moisture, and ultraviolet exposure, ensuring longevity and reducing maintenance costs. Its excellent mechanical properties, including a tensile strength of 23 MPa, enable reliable performance under pressure.


Precision Manufacturing for Reliable Connections

Produced using advanced injection moulding and fabrication techniques, HDPE Flanges offer excellent dimensional stability and precise bolt hole alignment as per ANSI standards. These processes ensure each flange meets rigorous quality specifications and pressure ratings (PN10/PN16), facilitating secure and leak-proof bolted connections for pipes. Customizable thickness and length allow seamless integration with existing piping systems.


Versatile Applications in Industry

With customizable size options ranging from 20 mm to 630 mm and a round shape, HDPE Flanges are adaptable for diverse pipeline projects in water supply and chemical industries. Their ability to withstand varying temperature ranges from -40C to +80C and exposure to ultraviolet light enhances their suitability for outdoor and underground installations.

FAQs of HDPE Flanges:


Q: How are HDPE Flanges utilized in water supply and chemical industry pipelines?

A: HDPE Flanges serve as secure connection points between pipes, enabling easy assembly and disassembly for maintenance or system expansion in water supply and chemical industry pipelines. Their excellent corrosion and chemical resistance make them particularly suitable for transporting liquids in environments where metallic fittings may degrade.

Q: What benefits do HDPE Flanges offer over traditional metal flanges?

A: Unlike traditional metal flanges, HDPE Flanges are highly resistant to corrosion, have a lower weight, and provide superior chemical and UV resistance. These advantages result in longer service life, reduced maintenance costs, and enhanced suitability for outdoor and aggressive industrial environments.

Q: When should injection moulded or fabricated HDPE Flanges be selected?

A: Injection moulded HDPE Flanges are typically chosen for small to medium sizes requiring tight dimensional control, while fabricated flanges are ideal for larger diameters or custom specifications. Selection depends on the required size, application, and desired mechanical properties.

Q: Where can HDPE Flanges be installed?

A: These flanges are applicable in various settings, including water distribution plants, chemical processing units, irrigation networks, and industrial facilities. Their high UV resistance and customizable dimensions allow for both above-ground and underground installation.

Q: What is the process for installing HDPE Flanges in a pipeline system?

A: Installation involves aligning the flange with the pipe ends, inserting bolts through the ANSI-standard bolt holes, and tightening to the specified torque. This bolted connection creates a secure, leak-free joint that accommodates pressure classes PN10 or PN16 according to the project requirements.

Q: How does the temperature range affect the performance of HDPE Flanges?

A: HDPE Flanges function effectively within a temperature range of -40C to +80C, maintaining structural integrity under thermal stress. This broad range allows for use in cold climates as well as industrial processes involving heated fluids.

HDPE Flanges
HDPE Flanges
HDPE Flanges
HDPE Flanges
HDPE Flanges
HDPE Flanges
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Valve Products Category

HDPE Butt Weld Fittings

HDPE Butt Weld Fittings

Price 28 INR / Piece

Minimum Order Quantity : 100 Pieces

Color : Black

Port Size : 1/2" to 12"

Pressure Ratings : 10 / 6 KG

Diameter : 1/2" to 12" Inch (in)

Get a Price/Quote
Pp Black Service Saddle

Pp Black Service Saddle

Price 31 INR / Number

Minimum Order Quantity : 100

Color : Black

Port Size : 1/2" to 12"

Pressure Ratings : 10KG

Diameter : 1/2" to 12" Inch (in)

Get a Price/Quote
Gokul Hdpe Fabricated Four Way

Gokul Hdpe Fabricated Four Way

Price 750 INR / Number

Minimum Order Quantity : 100

Color : Black

Port Size : 1/2" to 12"

Pressure Ratings : 10 / 6 KG

Diameter : 1/2" to 12" Inch (in)

Get a Price/Quote

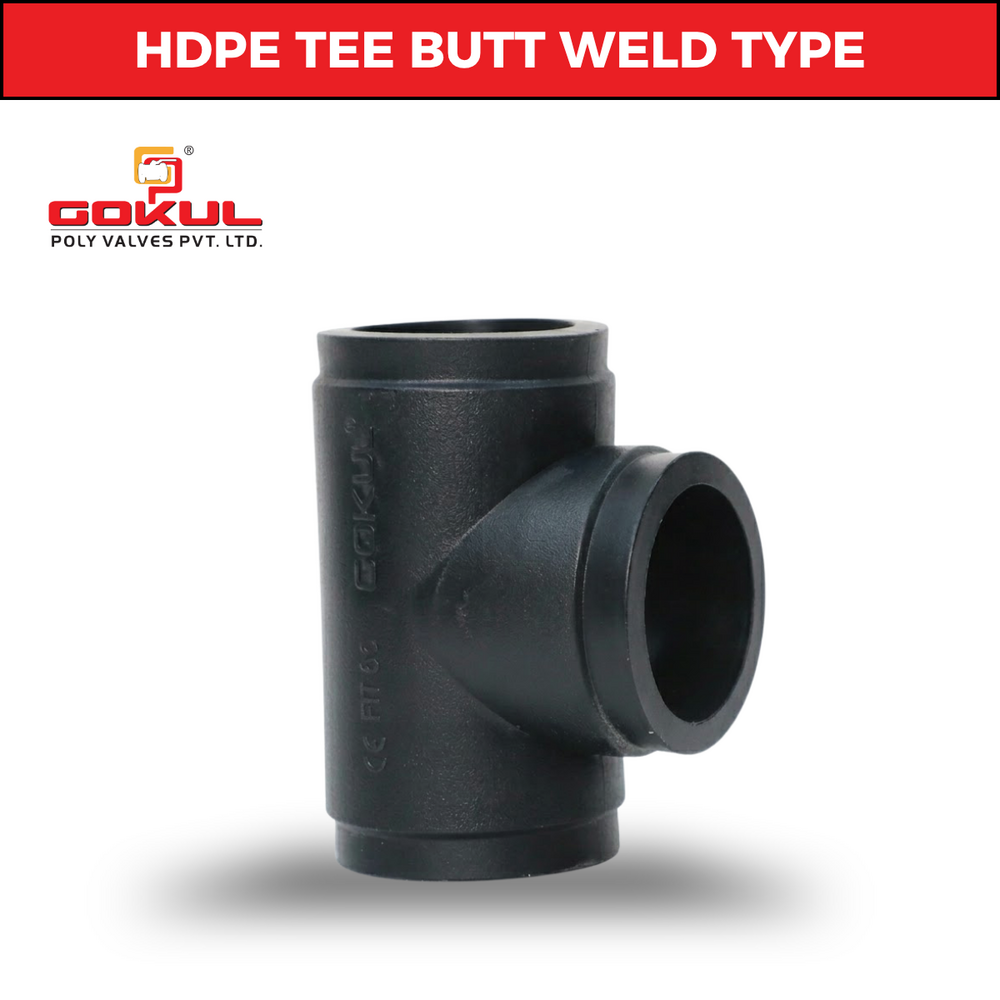

PE SPIGOT TEE
