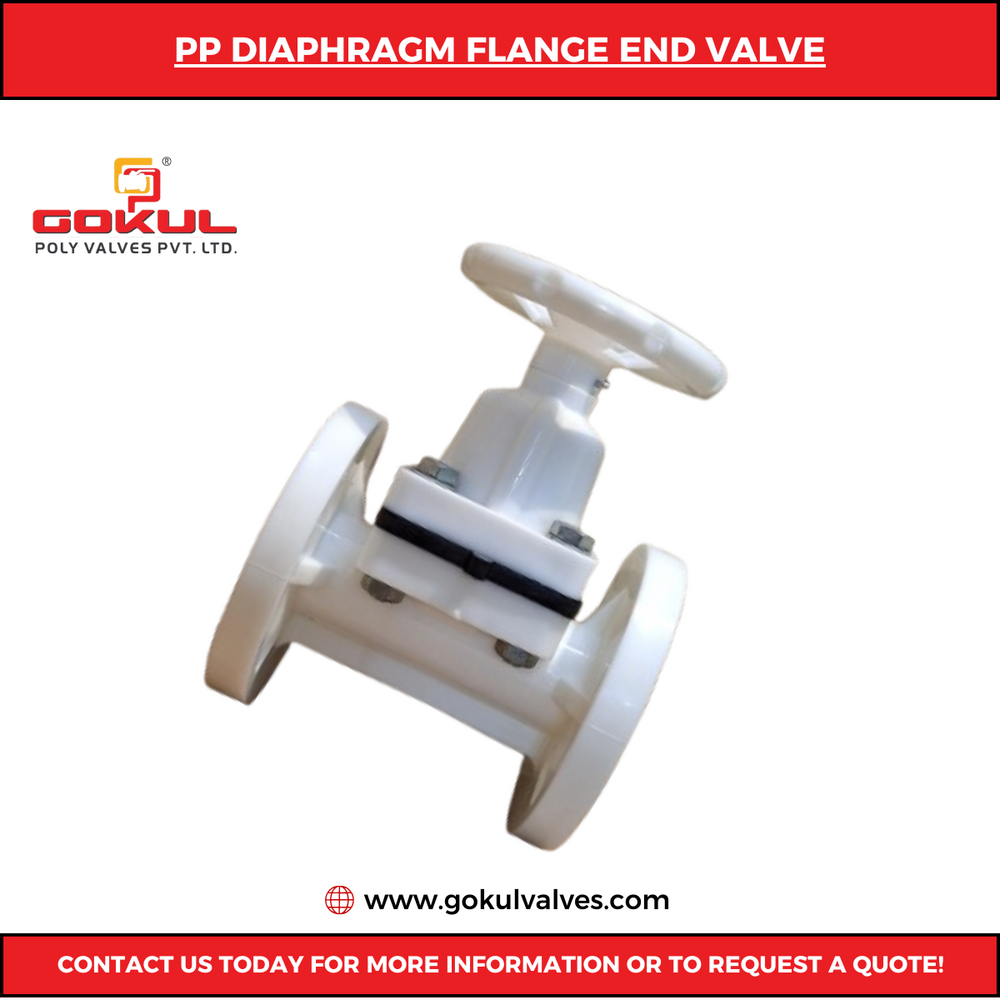

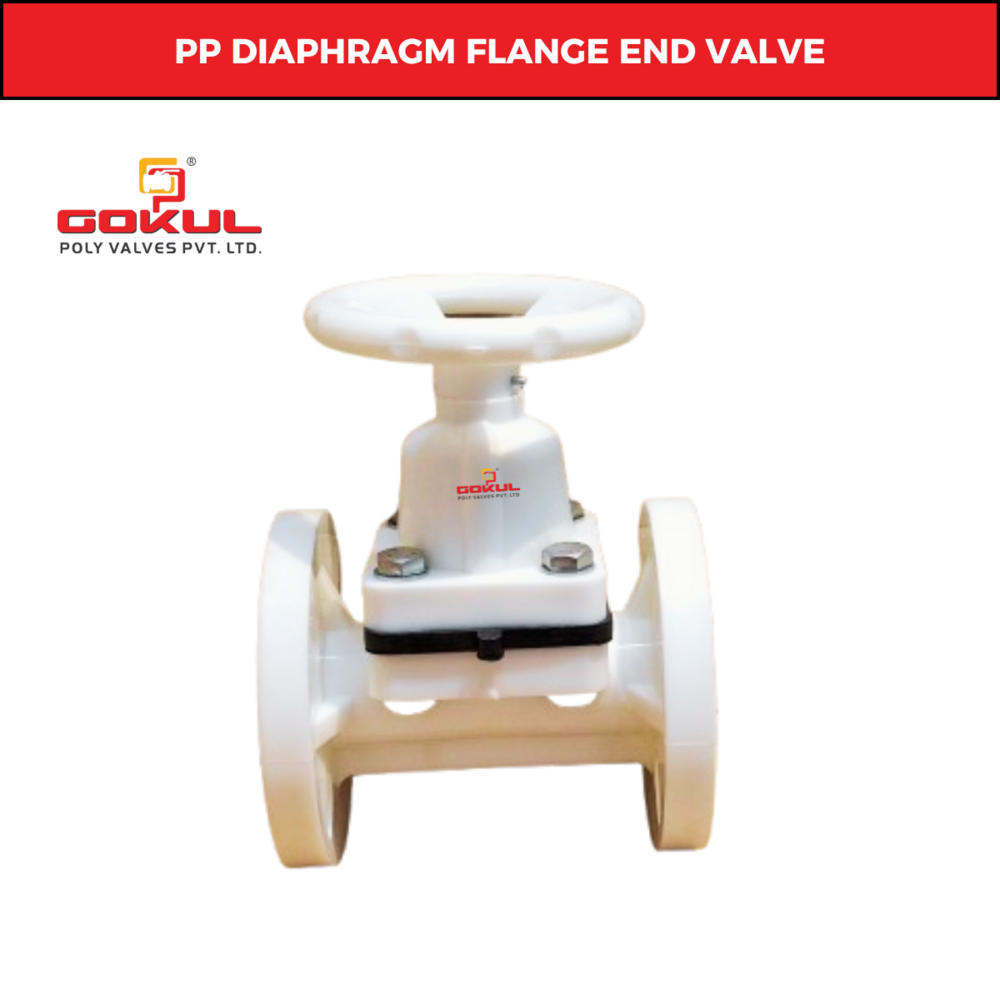

Polypropylene Diaphragm valve Flange End 3/4"

About Polypropylene Diaphragm valve Flange End 3/4"

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	weir type design,Soft seated, raising stem
Design	2 Piece Design	Connection End	Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range	15MM to 150MM	Test pressure	6 kg./cm2
Max working temp	70 c (consistently)	Standard	As per manufacturer

Material Specification

No.	DESCRIPTION	MATERIAL	QTY.
1)	Body	Polypropylene	1
2)	Bonnet	Polypropylene	1
3)	Hand wheel	Polypropylene	1
4)	Diaphragm	Neoprene Rubber	1
5)	Compressor	PP	1
6)	Stem / Spindel	M.S. /Brass	1
7)	Nut	M.S./ S.S.	1
8)	Pin	M.S./ S.S.	1
9)	Bolt, Nut, Washer	M.S./ S.S.	REQ
10)	Cap	Polypropylene	1

Durable Polypropylene Construction

Constructed exclusively from polypropylene (PP), this diaphragm valve stands up to harsh water and industrial environments. The materials chemical resistance and longevity make it an exceptional choice for installations requiring consistent performance and low maintenance.


Precision Engineering for Water Control

With a ball structure and precise 3/4" (20MM) port size, the valve effectively regulates water flow. Its flanged end and 150 class rating provide a secure fit for various industrial piping systems, ensuring leak-free operation and optimal pressure control.


Versatile Applications and Reliable Performance

Suitable for both industrial and domestic water management, this valve meets the demands of a wide range of environments. Manufactured by Gokul Poly Valves Pvt Ltd and available for export, it demonstrates reliability for service providers and suppliers across India and beyond.
