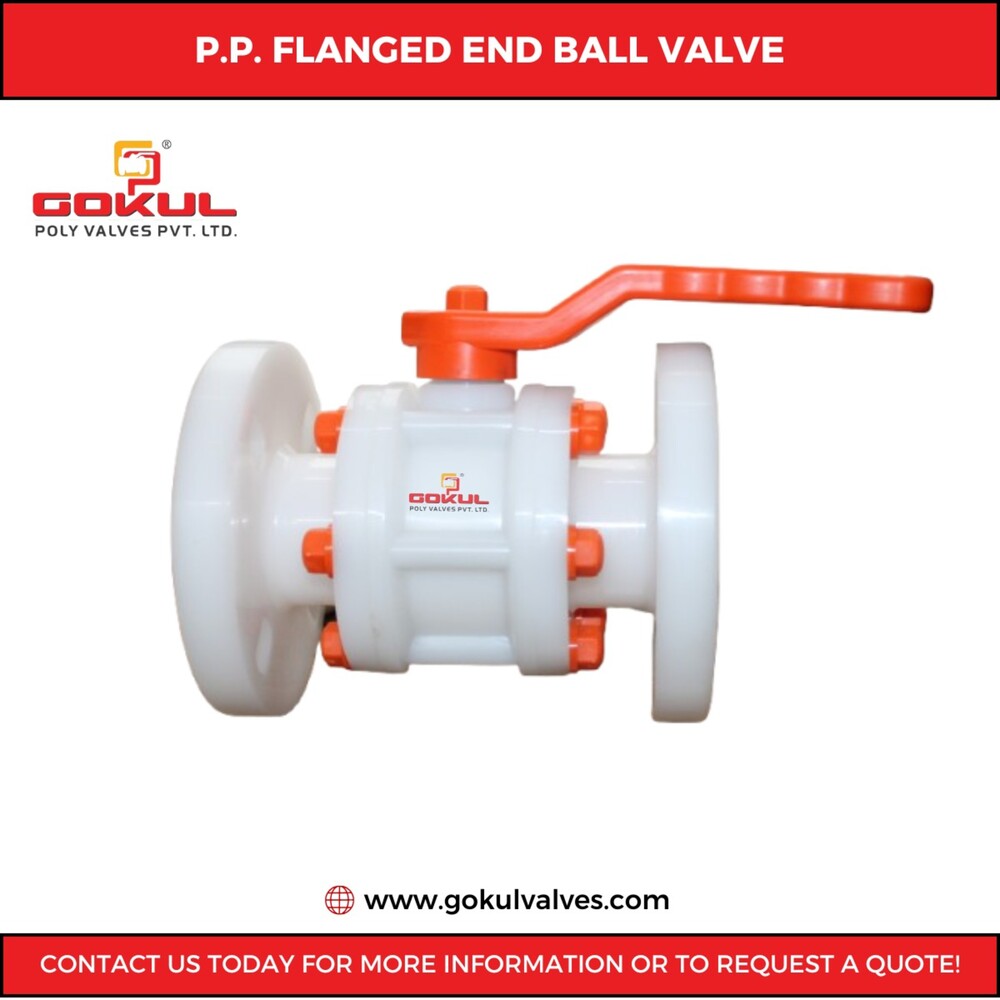

pp 3 piece Flange End Ball Valve

About pp 3 piece Flange End Ball Valve

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12ïï-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Corrosion-Resistant Polypropylene Build

Crafted from high-grade polypropylene, this ball valve offers exceptional resistance to rust and chemical corrosion, making it indispensable for water and industrial fluid management. Its durable build provides longevity, reducing maintenance and replacement costs in demanding environments.


User-Friendly Flanged Installation

Featuring a standardized 150 class flanged end, installation of the PP ball valve is hassle-free and secure. This design enables quick integration into existing systems, supporting operational efficiency in industrial and water treatment setups.


Versatile Performance Across Pressure and Temperature

Withstanding medium pressure and temperatures up to 80C, the valve adapts to diverse applications, including processing plants and municipal water supplies. Users benefit from stable performance, whether for intentional or domestic purposes.
