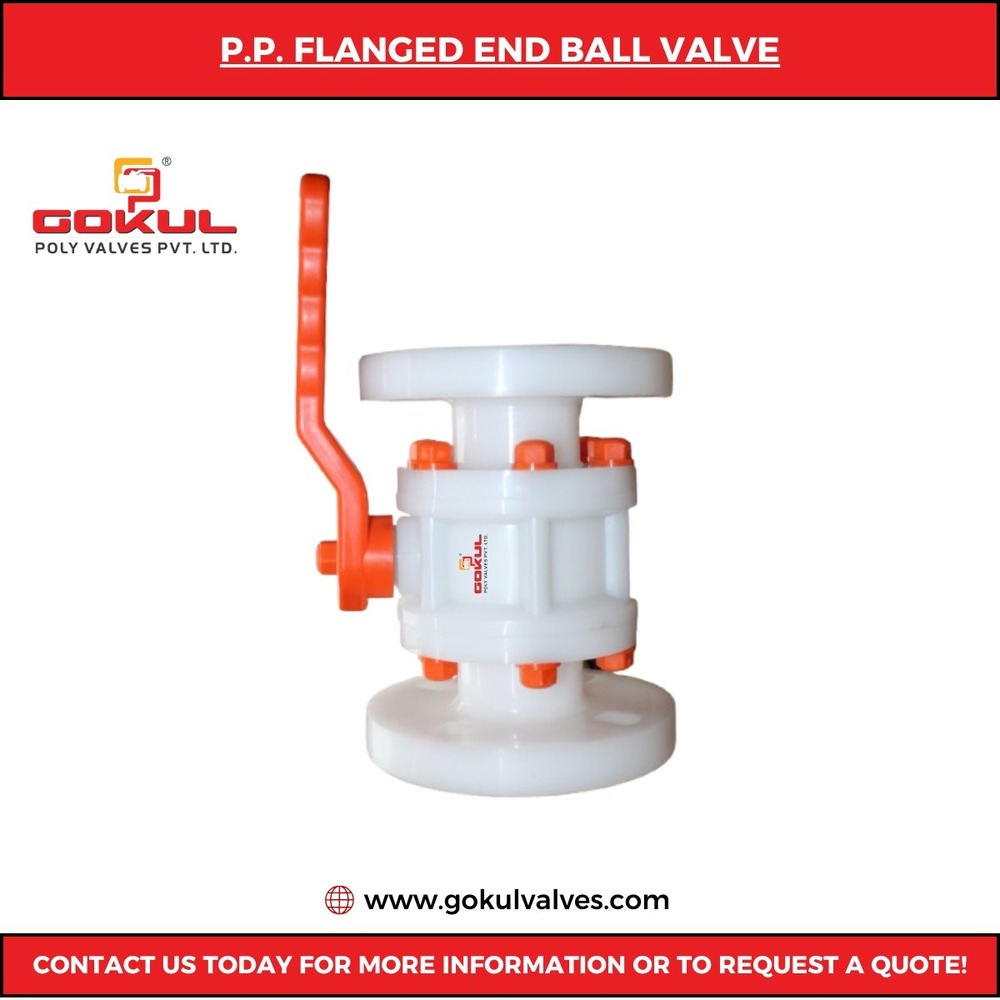

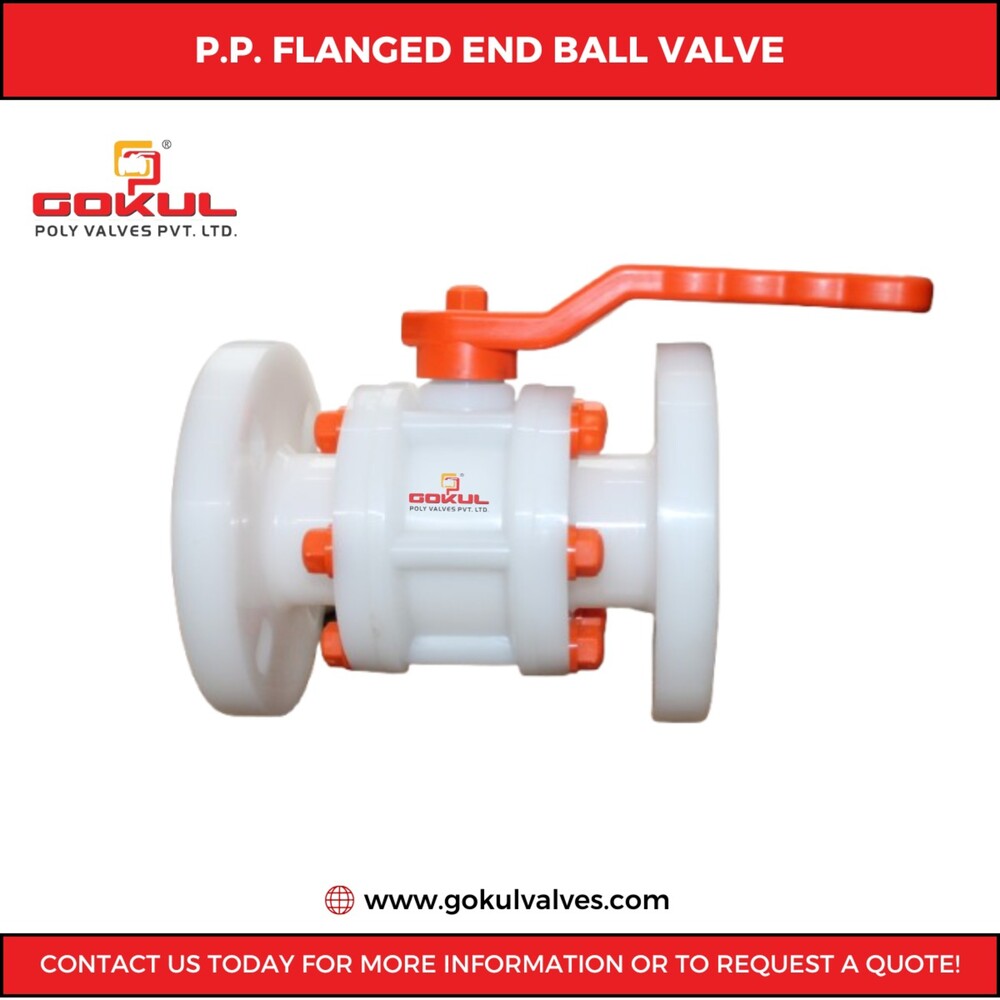

pp ball valve 1.5"

635 INR/Number

Get a Price/Quote

Product Details:

Usage Industrial & Water Application
Channels Intentional & Domestic Market
Connection Flanged
Size 1.5"-40mm
Caliber Gokul Poly Valves Pvt Ltd
Color White
Product Type PP Ball Valve
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

pp ball valve 1.5" Price And Quantity

Price Range 635.00 - 635.00 INR/Number
Price 635 INR/Number
Minimum Order Quantity 30 Number

pp ball valve 1.5" Product Specifications

Flange 150 class
Material Plastic
Port Size 1.5"-40mm
Structure Ball
Pressure Medium Pressure
Size 1.5"-40mm
Finish Polypropylene (PP)
Caliber Gokul Poly Valves Pvt Ltd
Color White
Product Type PP Ball Valve
Channels Intentional & Domestic Market
Connection Flanged
Temperature of Media 80 Celsius (oC)
Application industrial and water application
Media Water
Usage Industrial & Water Application

pp ball valve 1.5" Trade Information

FOB Port Ahmedabad
Payment Terms Cash Advance (CA) Cash in Advance (CID) Cheque
Supply Ability 10 Number Per Day
Delivery Time 1 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details BOX PACKING
Main Export Market(s) Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
Main Domestic Market All India
Certifications ISO & Material Test Certificate

Product Description

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Teflon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12™™-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEFLON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEFLON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.
