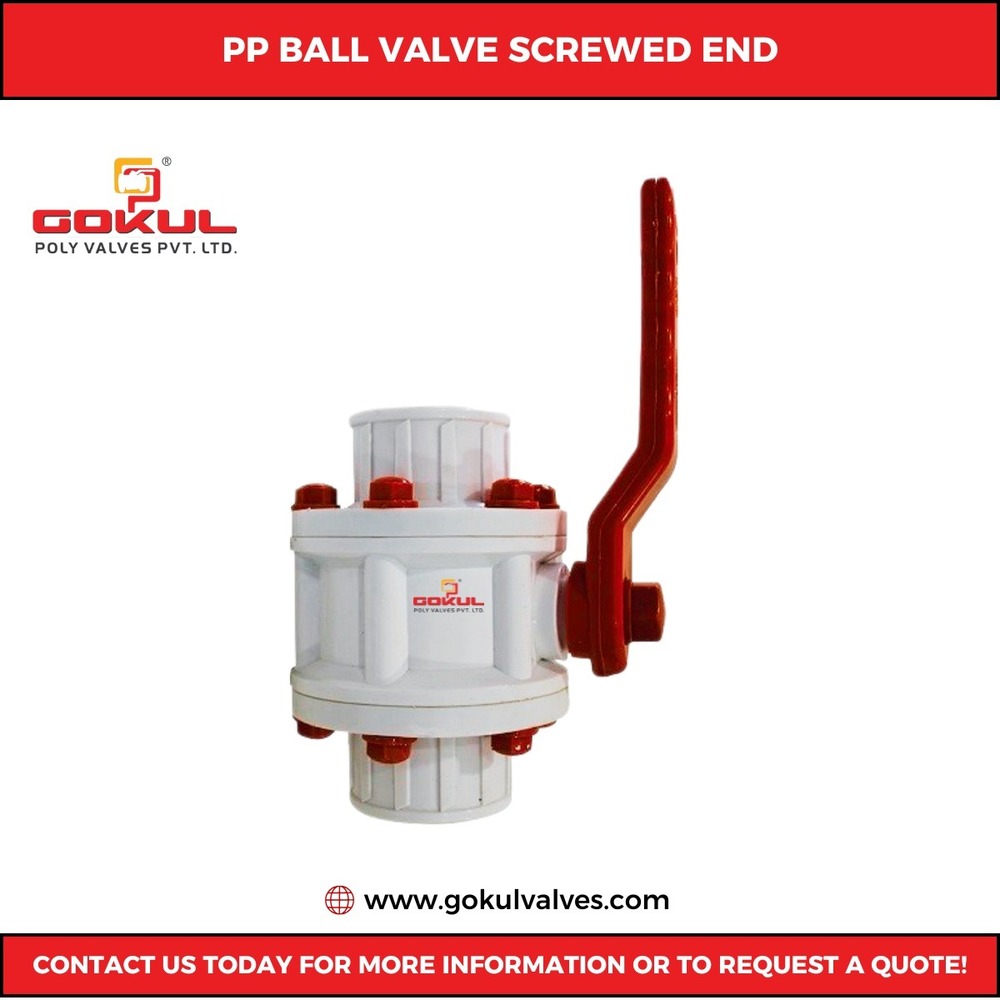

PP Screw End Ball Valve.

1450 INR/Number

Get a Price/Quote

Product Details:

Color White
Channels Intentional & Domestic Market
Caliber Gokul Poly Valves Pvt Ltd
Product Type PP Screw End Ball Valve
Structure Ball
Connection Screw End (BSP Threaded)
Size 1/2" To 4"
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

PP Screw End Ball Valve. Price And Quantity

Minimum Order Quantity 10 Number
Price Range 1450.00 - 1450.00 INR/Number
Price 1450 INR/Number

PP Screw End Ball Valve. Product Specifications

Size 1/2" To 4"
Connection Screw End (BSP Threaded)
Temperature of Media 80 Celsius (oC)
Pressure Medium Pressure
Usage Industrial & Water Application
Product Type PP Screw End Ball Valve
Media Water
Structure Ball
Material Plastic
Caliber Gokul Poly Valves Pvt Ltd
Port Size 1/2" To 4"
Application industrial and water application
Finish Polypropylene (PP)
Channels Intentional & Domestic Market
Color White
Flange BSP Threaded

PP Screw End Ball Valve. Trade Information

FOB Port Ahmedabad
Payment Terms Cash Advance (CA) Cash in Advance (CID) Cheque
Supply Ability 20 Number Per Day
Delivery Time 1 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Box Packing
Main Export Market(s) Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
Main Domestic Market All India
Certifications ISO & Material Test Certificate

Product Description

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	3 piece design, 1 piece stem (spindle), full bore, Teflon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	"- 15MM TO 100MM- 4ï
Connection End	Screw end (BSP thread)	Standard	As per manufacturer

Material Specification

NO.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	Polypropylene
2)	Body	1	Polypropylene
3)	Ball	1	Polypropylene
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEFLON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEFLON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.
