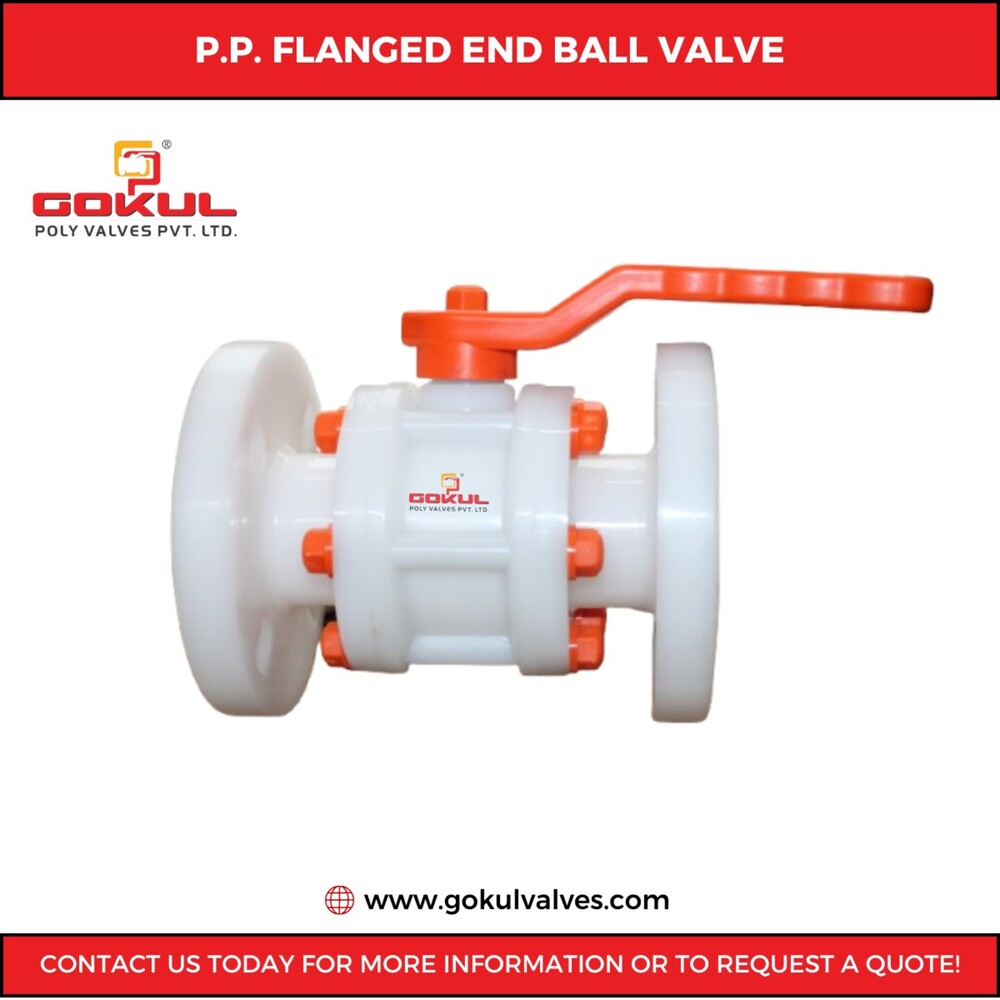

pp ball valve 8"

Price 14150 INR/ Number

Get a Price/Quote


pp ball valve 8" Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About pp ball valve 8"

Technical Specification

Material Of Construction PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride) Construction 3 piece design, 1 piece stem (spindle), full bore, Teflon seated
Design 3 piece design Test pressure 08 kg./cm2
Max working temp 70 c (consistently) Size Range " 15MM TO 12™™-315MM
Connection End Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD. Standard As per manufacturers

Material Specification

No. DESCRIPTION QTY. MATERIAL
1) Flanged end 2 PP / HDPE & PVDF
2) Body 1 PP / HDPE & PVDF
3) Ball 1 PP & PVDF
4) Stem/Spindal 1 Polypropylene With M.S. /S.S
5) Seat Ring 2 PTFE (TEFLON)
6) Body"O"Ring 2 Neoprene
7) Stem Seal Ring 1 PTFE (TEFLON)
8) Stem "O" Ring 1 Neoprene
9) Stud, Nut & Washer REQ M.S. Zinc Plated/S.S
10) Nut Cap REQ Polypropylene.
11) Handle 1 M.S. PP Coated.
12) Handle Hex. Pin 1 M.S./ S.S.
13) Handle Cap 1 Polypropylene.
pp ball valve 8
pp ball valve 8
pp ball valve 8
pp ball valve 8
pp ball valve 8
pp ball valve 8
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Pp Nut Bolt Category

Gokul Pp Washer

Gokul Pp Washer

Price 13 INR / Number

Minimum Order Quantity : 1 Number

Material : PP

Usage : Industrial & Water line

Color : Grey

Product Type : Other

Get a Price/Quote

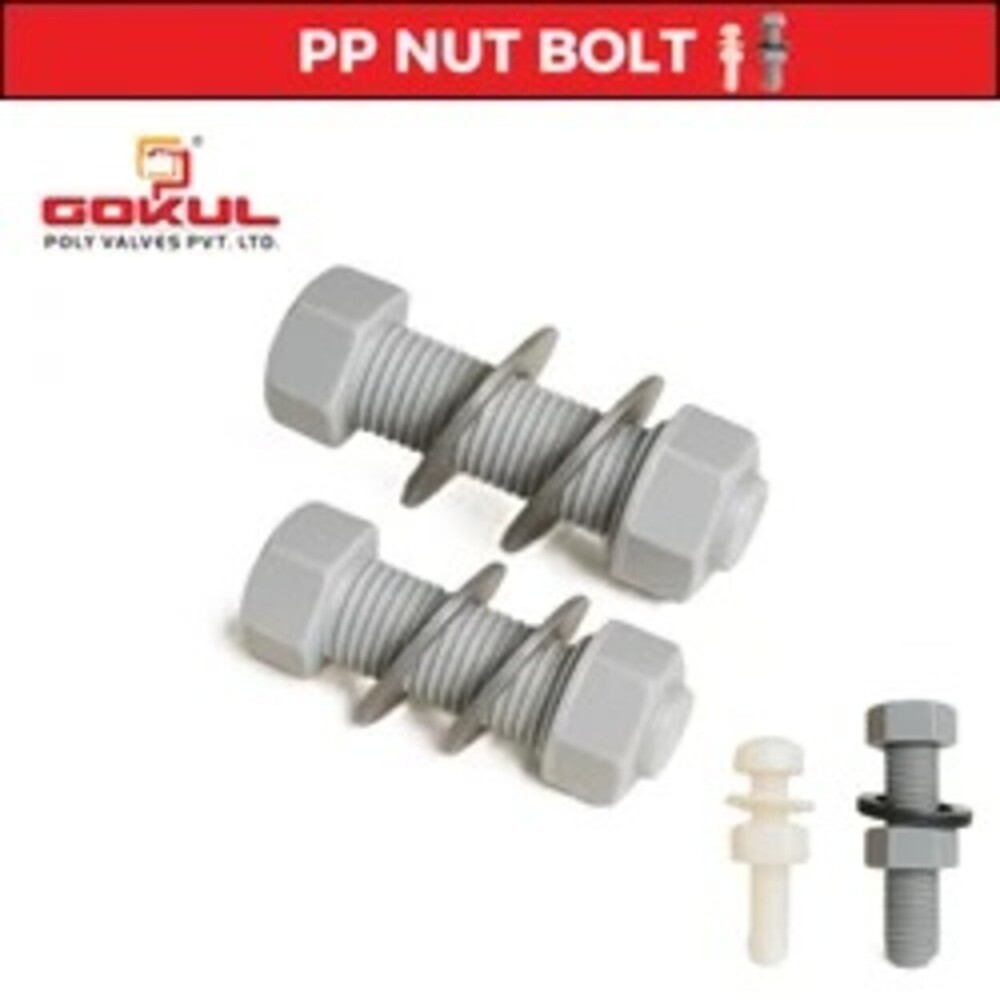

Gokul Pp Nut Bolt
