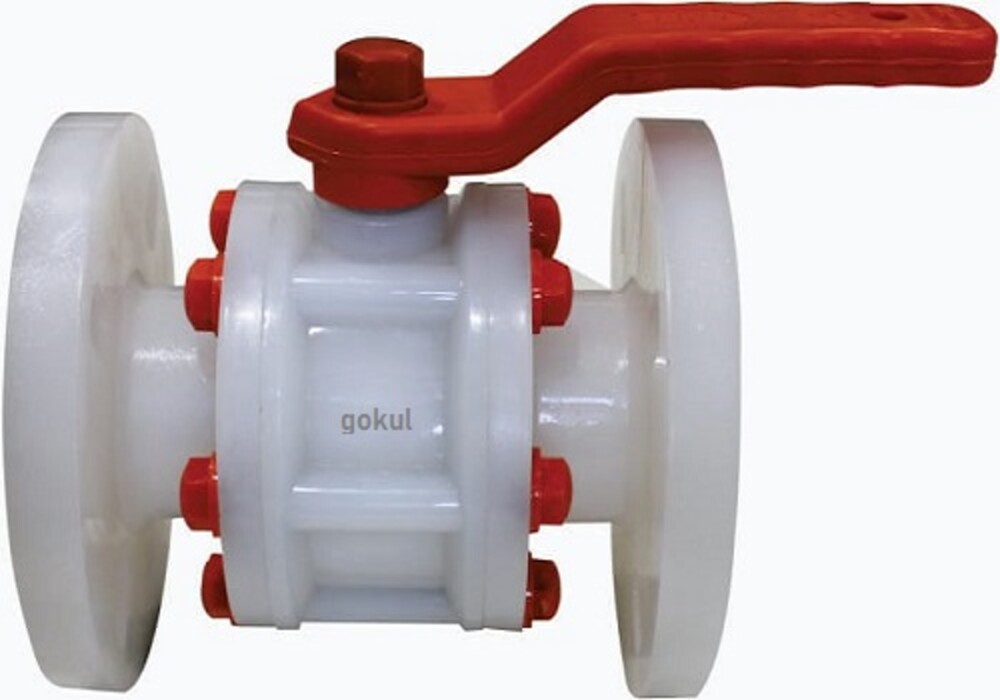

Pp Ball Valve Flange End 1.5"

About Pp Ball Valve Flange End 1.5"

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12ïï-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Robust Material and Flanged Design

Constructed from polypropylene, this ball valve ensures resilience against corrosive acids and temperature fluctuations. The 150 class flanged end facilitates seamless integration into industrial pipelines, providing strong mechanical support and leak-proof operation. Such features maximize reliability and reduce downtime for facility maintenance.


Versatile Application and Media Compatibility

This valve handles both industrial process fluids and water, making it suitable for diverse sectors such as chemical processing and water treatment plants. Its compatibility with acidic media at temperatures up to 80C makes it a preferred choice for facilities seeking cost-effective and durable flow control mechanisms.


Efficient Shutoff and Operational Safety

The precision-engineered ball structure delivers fast shutoff capabilities while maintaining flow regulation. Operators benefit from efficient control of process media, minimizing the risk of leaks or accidental releases. The PP finish enhances chemical resistance, reassuring users of safety and longevity.
