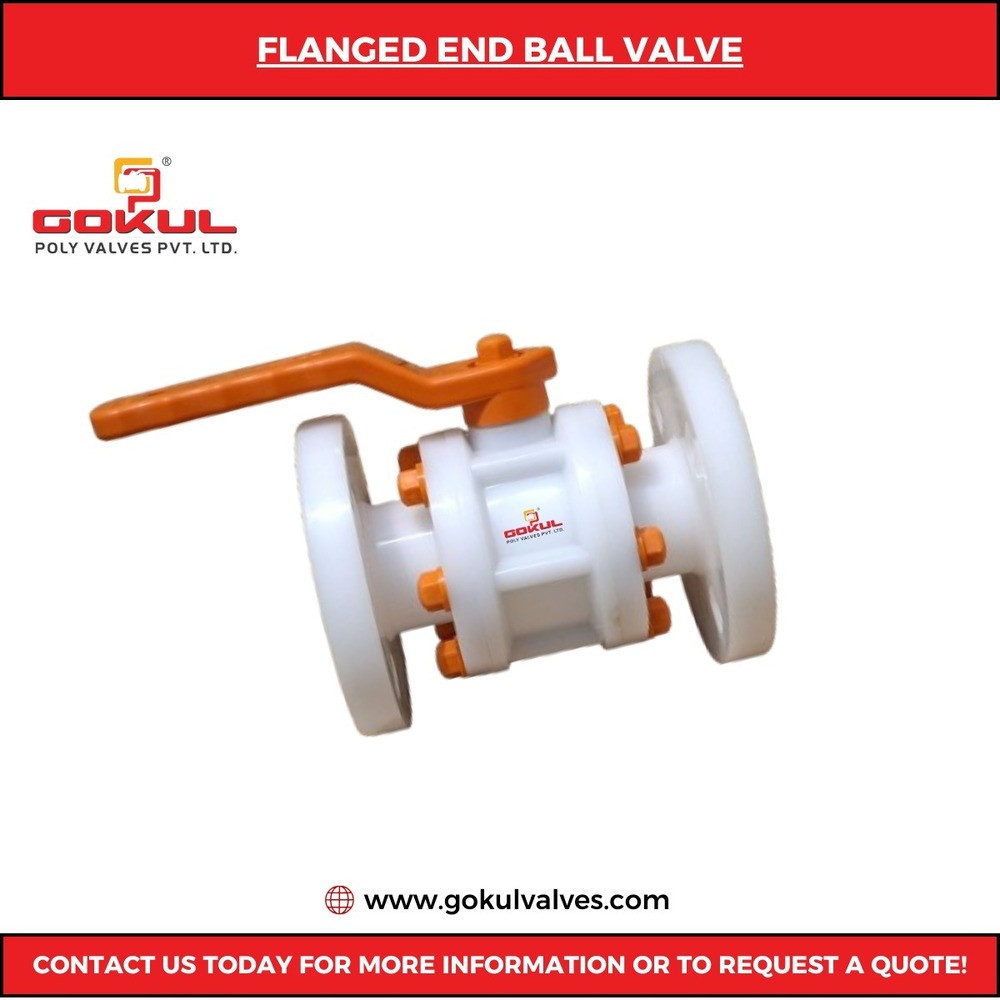

Pp Ball Valve Flange End 12"

Price 41150 INR/ Number

Get a Price/Quote

Pp Ball Valve Flange End 12" Specification

Pressure
Medium Pressure

Caliber
Gokul Poly Valves Pvt Ltd

Channels
Intentional & Domestic Market

Structure
Ball

Connection
Flanged

Material
Plastic

Usage
Industrial & Water Application

Media
Water

Size
12"-315MM

Temperature of Media
80 Celsius (oC)

Product Type
PP Ball Valve Flange End

Port Size
12"-315MM

Color
White

Flange
150 class

Finish
Polypropylene (PP)

Application
industrial and water application

Pp Ball Valve Flange End 12" Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About Pp Ball Valve Flange End 12"

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12ïï-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Reliable Performance in Demanding Applications

This PP ball valve is designed to excel in both industrial and water application environments. It combines a strong polypropylene construction with a high-quality flange end, offering resistance to corrosive agents and ideal performance in medium pressure settings. The 150 class flange and 12" port size ensure compatibility with a wide range of standardized piping systems.

Enduring Materials and Straightforward Installation

Constructed from polypropylene, this valve is built to handle temperatures up to 80C, making it an optimal choice for transporting water and various industrial liquids. The flanged connection simplifies the installation process, enabling secure attachment that minimizes leakage and ensures system safety. Its user-friendly design supports routine maintenance and long-term durability.

FAQs of Pp Ball Valve Flange End 12":

Q: How is the Pp Ball Valve Flange End 12" commonly used in industrial and water applications?

A: This valve is typically used to control the flow of water or other compatible liquids in industrial systems as well as in municipal or commercial water supply lines. Its design allows for secure shut-off, regulation, and diversion of flow, ensuring efficient system operation.

Q: What materials and finishes does this ball valve feature, and how do they benefit performance?

A: Made from polypropylene (PP) and finished in white, this valve offers excellent corrosion resistance, chemical durability, and low maintenance requirements. The material is suitable for water and most industrial liquids, enhancing longevity and reliability even in demanding environments.

Q: When should a flange end valve with a 150 class rating be chosen?

A: A flange end valve with a 150 class rating should be selected when your application demands robust sealing under medium pressure (as typically found in many industrial solutions) and compatibility with commonly used pipelines. Its suitable for installations where periodic removal or maintenance is expected.

Q: Where can the Pp Ball Valve Flange End 12" be installed?

A: This valve can be installed in a variety of settings, including industrial plants, municipal water treatment facilities, commercial plumbing systems, and agricultural irrigation networks. Its corrosion-resistant build makes it suitable for both indoor and outdoor environments.

Q: What is the process for installing the 12" PP ball valve with flanged ends?

A: Installation involves aligning the valves flanged ends with the corresponding pipe flanges, inserting a gasket for sealing, and securing the connection with bolts. This allows for a leak-proof fit and simplified future removal or servicing when necessary.

Q: What are the main advantages of using a polypropylene ball valve in medium pressure applications?

A: Polypropylene ball valves provide excellent resistance to corrosion and many chemicals, making them ideal for transferring aggressive fluids. They are lightweight, easy to handle, and cost-effective, while maintaining consistent performance across a wide temperature range.
