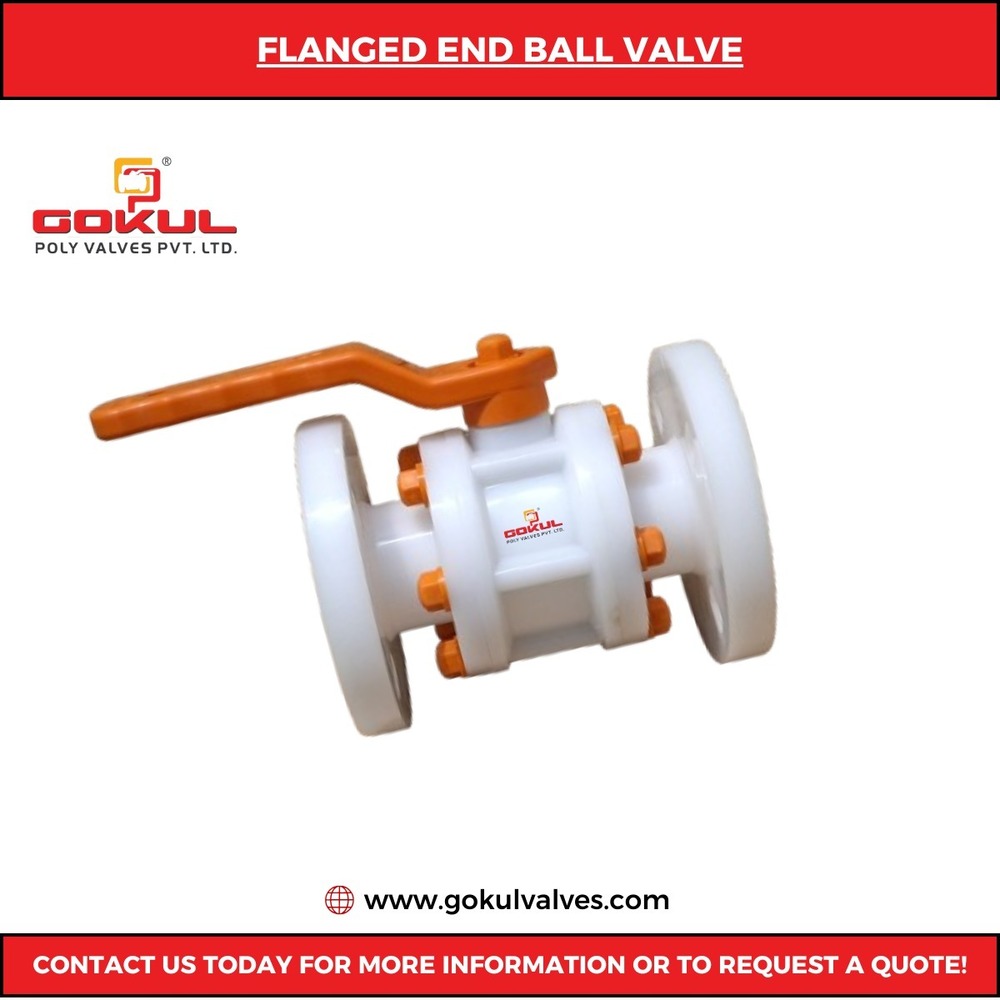

Pp Ball Valve Flange End 2.5"

About Pp Ball Valve Flange End 2.5"

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12ïï-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Precision Design for Industrial and Water Systems

Engineered for efficient fluid control, the 2.5-inch PP Ball Valve Flange End offers precise shut-off capabilities in demanding environments. With a polypropylene construction and a sturdy flange connection, it withstands harsh media and challenging water flow conditions. Its performance is trusted for both domestic and global industrial applications.


Optimal Performance and Reliability

Operating at medium pressures and withstanding temperatures up to 80C, this valve provides reliable regulation of water flow without compromising on safety or durability. Its robust structure ensures minimal leakage and consistent operation, making it a preferred choice for manufacturers, exporters, and service providers in the water and industrial sectors.
