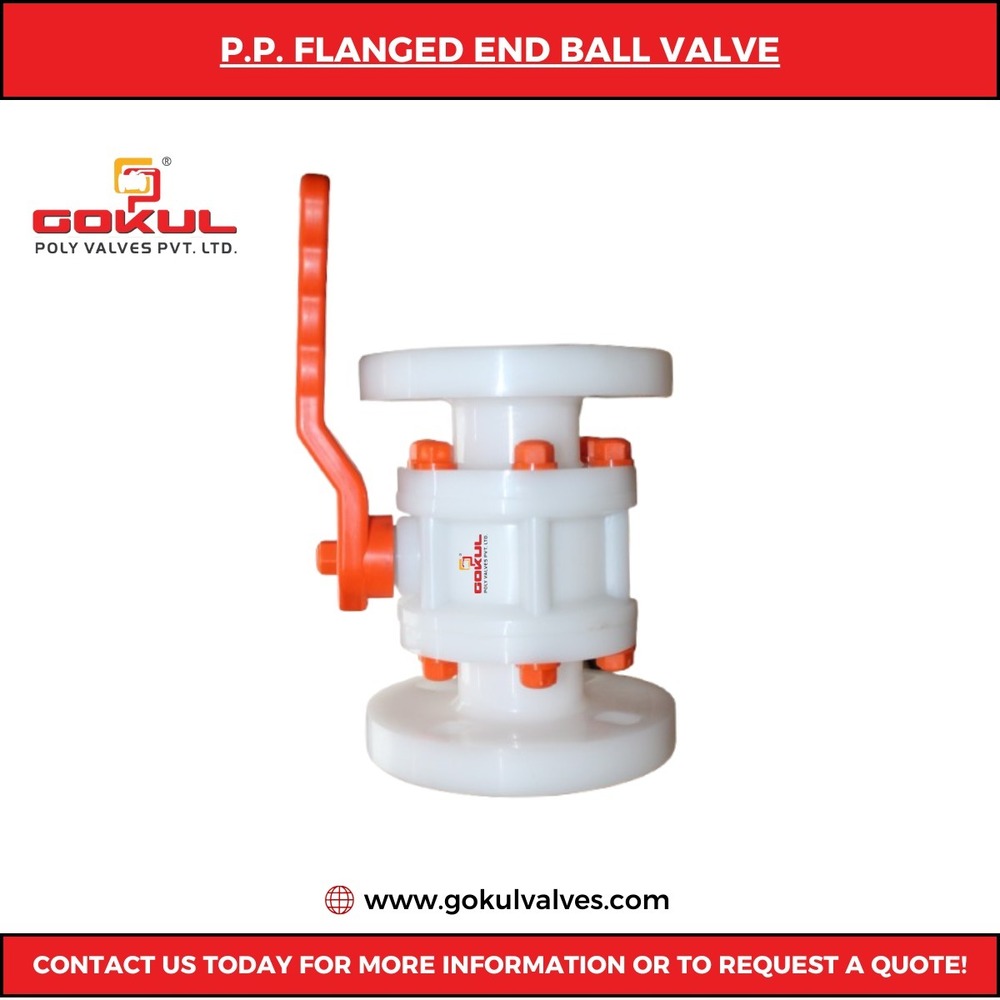

Pp Ball Valve Flange End 4"

About Pp Ball Valve Flange End 4"

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12ïï-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Advanced Polypropylene Construction

This ball valve is crafted from high-quality polypropylene (PP), making it exceptionally resistant to corrosion and chemical damage. Its plastic material ensures long-term durability and minimal maintenance, particularly ideal for harsh industrial environments and water management systems.


Optimal Flange End Design

Utilizing a standardized 150 class flanged connection, the valve provides secure and reliable installation in piping setups. The flange end facilitates easy integration, allowing for streamlined assembly, maintenance, or replacement without extensive downtime.


Versatile Usage Across Industries

Designed for both industrial and water applications, the PP ball valve is suitable for a wide array of operations requiring dependable flow control. Its medium pressure capacity and high temperature tolerance make it versatile for use in manufacturing, water treatment, and utility supply systems.
