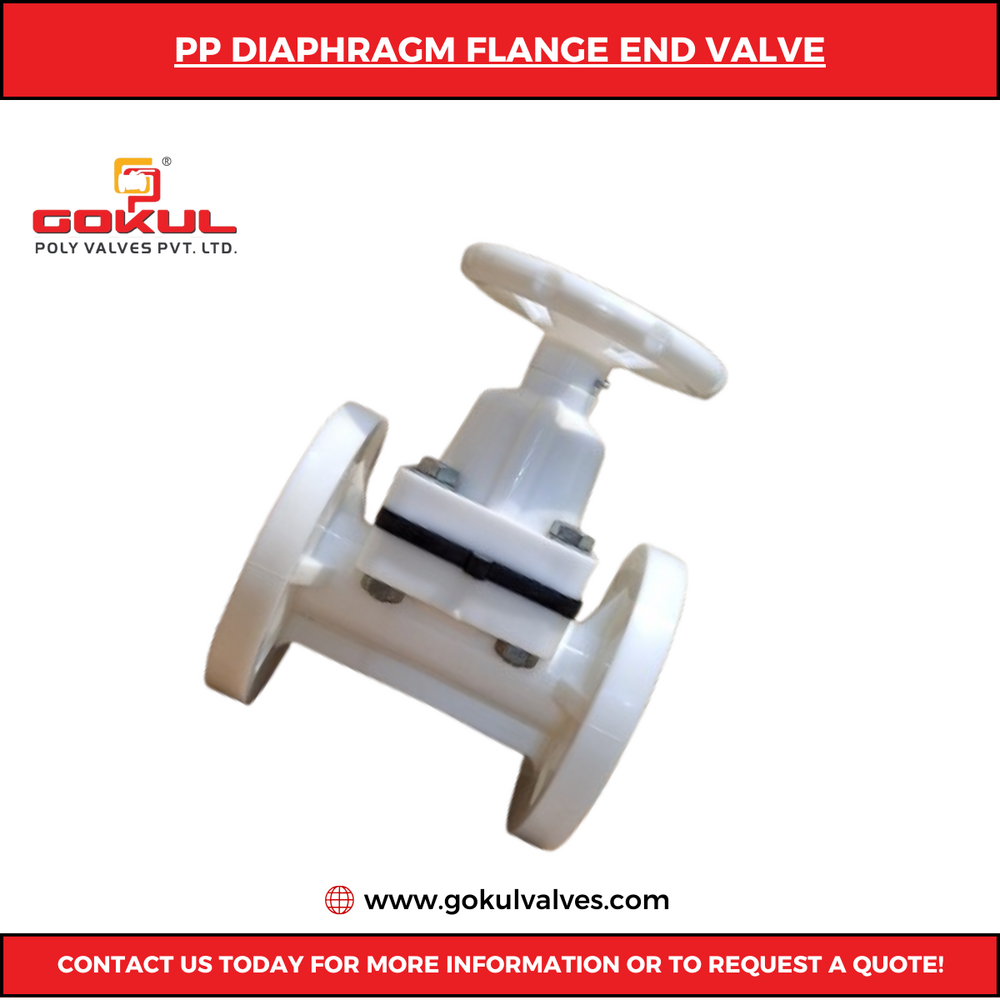

Flange End Polypropylene Diaphragm Valve 4"

About Flange End Polypropylene Diaphragm Valve 4"

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	weir type design,Soft seated, raising stem
Design	2 Piece Design	Connection End	Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range	15MM to 150MM	Test pressure	6 kg./cm2
Max working temp	70 c (consistently)	Standard	As per manufacturer

Material Specification

No.	DESCRIPTION	MATERIAL	QTY.
1)	Body	Polypropylene	1
2)	Bonnet	Polypropylene	1
3)	Hand wheel	Polypropylene	1
4)	Diaphragm	Neoprene Rubber	1
5)	Compressor	PP	1
6)	Stem / Spindel	M.S. /Brass	1
7)	Nut	M.S./ S.S.	1
8)	Pin	M.S./ S.S.	1
9)	Bolt, Nut, Washer	M.S./ S.S.	REQ
10)	Cap	Polypropylene	1

Reliable Performance for Industrial & Water Systems

Gokul Poly Valves Pvt Ltd delivers dependable flow control with their Flange End Polypropylene Diaphragm Valve, designed for medium pressure scenarios. The valves sturdy polypropylene body resists corrosive substances, making it a solid choice for water treatment plants and various industrial processes. Its flanged connections simplify installation and maintenance.


Advanced Material for Extended Longevity

Crafted from high-quality polypropylene, this valve holds up against harsh environmental factors and frequent usage. The non-metallic construction minimizes the risk of rust or chemical degradation, ensuring lasting performance in industrial and water applications that demand reliability.
