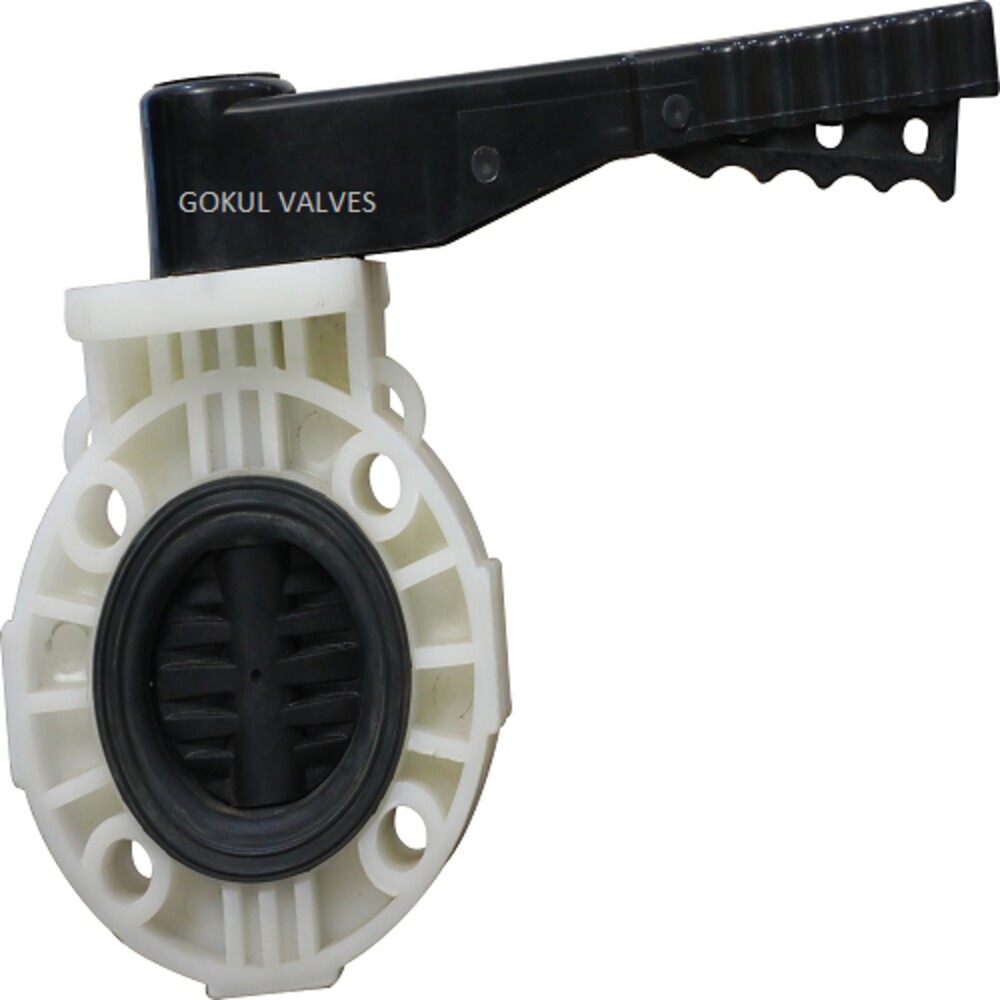

Pp Butterfly Valve

Price 2180 INR/ Number

Get a Price/Quote

Pp Butterfly Valve Specification

Structure
Butterfly

Channels
i

Pressure
Medium Pressure

Connection
Hand Lever & Gear Operated

Caliber
Gokul Poly Valves Pvt Ltd

Usage
Industrial & Water Application

Material
Plastic

Size
2" To 12"

Temperature of Media
80 Celsius (oC)

Product Type
PP Butterfly Valve

Port Size
2" To 12"

Color
White

Finish
Polypropylene (PP)

Application
industrial and water application

Pp Butterfly Valve Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About Pp Butterfly Valve

Technical Specification Material Of Construction PP (Polypropylene) Construction One piece body Design Waffer dise design Test pressure 10kg upto 4 6kg above 4 Max working temp 70 c (consistently) Size Range 2-50MM TO 12-315MM Connection End Flanged as per ANSI B 16.5 (150#) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Body Polypropylene 1 2) Disk Polypropylene 1 3) Stem "O" Ring. Neoprene Rubber 2 4) Stem S.S. 1 5) Hinge pin S.S. 1 6) Cap S.S. 1 7) Hundle Polypropylene 1 8) Spring S.S. 1 9) Hundle pin S.S. 1 10) Positioner lever S.S. 1 11) Handle cap Polypropylene 1 12) Positioner plater S.S. 1

FAQs of Gokul Pp Butterfly Valve:

Q: What is the size range available for the Gokul PP Butterfly Valve?

A: The Gokul PP Butterfly Valve is available in sizes ranging from 2 inches to 12 inches.

Q: What connection types are available for this butterfly valve?

A: The Gokul PP Butterfly Valve is available in hand lever and gear-operated connections.

Q: What is the maximum temperature of media that the valve can handle?

A: The valve can handle media temperatures up to 80 degrees Celsius (oC).

Q: What are the primary applications of the Gokul PP Butterfly Valve?

A: The valve is primarily used in industrial and water applications.

Q: What material is the Gokul PP Butterfly Valve made of?

A: The valve is made of polypropylene (PP), a type of durable plastic.
