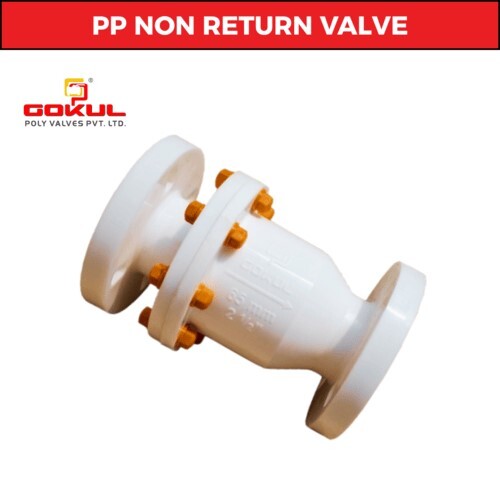

PP Flange NRV

Price 27600 INR/ Number

Get a Price/Quote

PP Flange NRV Specification

Channels
Intentional & Domestic Market

Structure
Ball

Connection
Flanged

Pressure
Medium Pressure

Caliber
Gokul Poly Valves Pvt Ltd

Usage
Industrial & Water Application

Material
Plastic

Size
1" To 12"

Media
Water

Temperature of Media
80 Celsius (oC)

Product Type
PP Non Return Valve Flanged

Port Size
1" To 12"

Color
White

Flange
150 class

Finish
Polypropylene (PP)

Application
industrial and water application

PP Flange NRV Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cheque

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About PP Flange NRV

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Top Body Polypropylene 1 2) Bottom body Polypropylene 1 3) Ball Polypropylene 1 4) Ball Ring Polypropylene 1 5) Seat Ring Neoprene Rubber 1 6) Stud, Nut & Washer SS Req.

FAQs of PP Flange NRV:

Q: What is the port size range available for the PP Flange NRV?

A: The PP Flange NRV is available in port sizes ranging from 1" to 12".

Q: What is the maximum temperature the PP Flange NRV can handle?

A: The PP Flange NRV can handle a maximum temperature of 80C.

Q: What type of applications is the PP Flange NRV suitable for?

A: The PP Flange NRV is suitable for industrial and water applications.

Q: What is the pressure rating for the PP Flange NRV?

A: The PP Flange NRV is designed for medium pressure applications.

Q: What is the material used in the manufacturing of the PP Flange NRV?

A: The PP Flange NRV is made of plastic with a polypropylene (PP) finish.

Q: What is the connection type of the PP Flange NRV?

A: The PP Flange NRV features a flanged connection.

Q: What is the flange class of the PP Flange NRV?

A: The flange class of the PP Flange NRV is 150 class.
