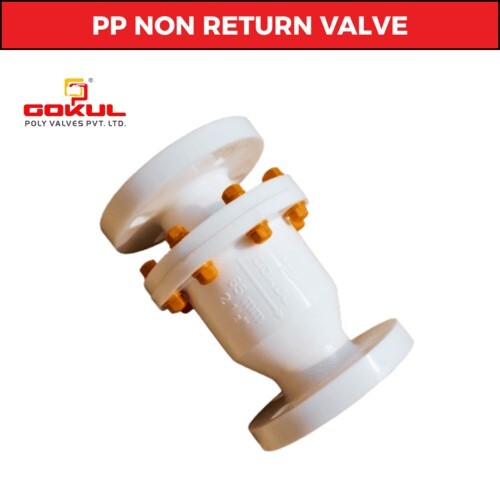

pp Nrv Flanged End

About pp Nrv Flanged End

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	Ball type design, soft seated, 2 Piece Design
Design	2 Piece Design	Connection End	Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range	25MM to 315MM	Test pressure	10 kg./cm2
Max working temp	70 c (consistently)	Standard	As per manufacturer

Material Specification

No.	DESCRIPTION	MATERIAL	QTY.
1)	Top Body	Polypropylene	1
2)	Bottom body	Polypropylene	1
3)	Ball	Polypropylene	1
4)	Ball Ring	Polypropylene	1
5)	Seat Ring	Neoprene Rubber	1
6)	Stud, Nut & Washer	SS	Req.

Premium Quality Material

Crafted from polypropylene, the PP NRV Flanged End resists chemical interactions and maintains its integrity even under demanding conditions. Its plastic composition makes it lightweight yet sturdy, ensuring longevity and reducing maintenance costs over time.


Versatile Industrial and Water Applications

This non-return valve is engineered for diverse environments, including water supply systems and industrial fluid transport processes. Its wide port size range enables flexible installation, addressing both small-scale and large-scale operational requirements.


Reliable Medium Pressure Operation

The valve is designed to handle medium pressure efficiently, making it suitable for routine industrial and domestic water flow management. The 150 class flange and ball structure offer secure connections and optimal sealing for enhanced safety and performance.
