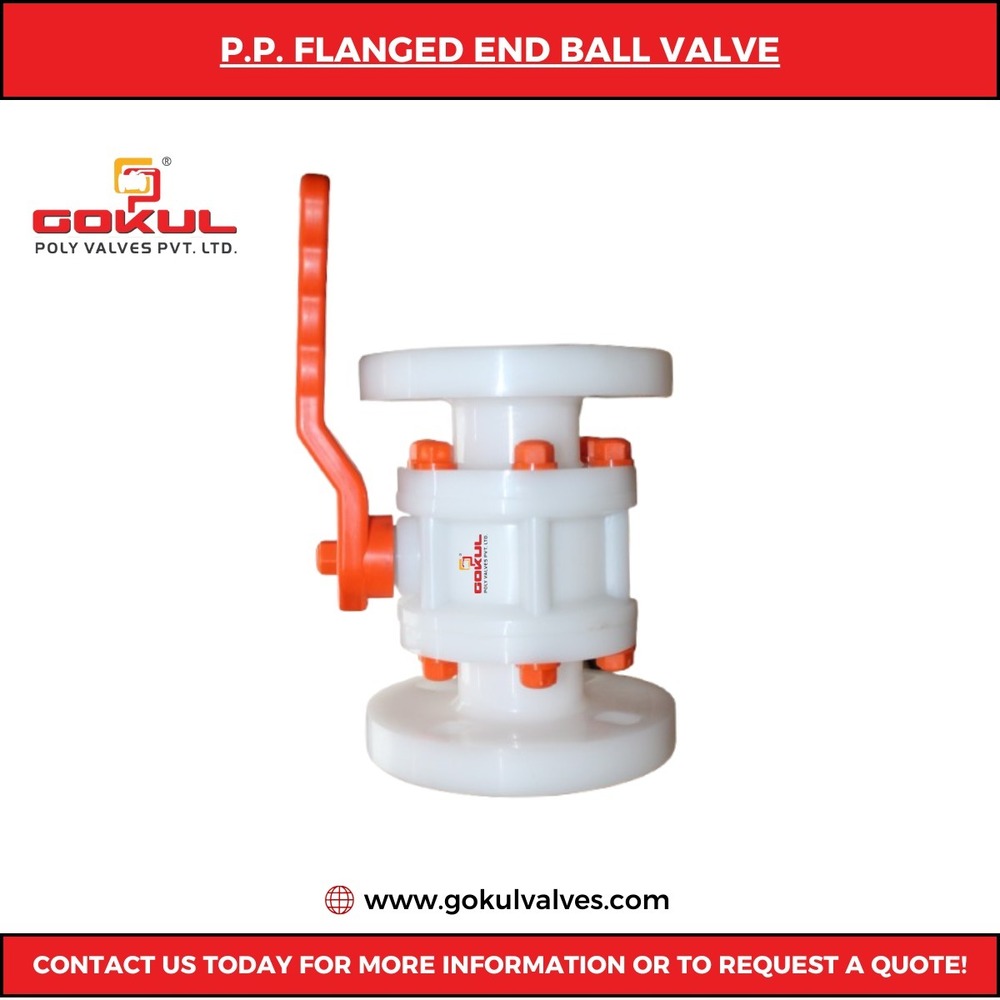

Gokul Flanged PP Ball Valve Gokul Flanged PP Ball Valve Gokul Flanged PP Ball Valve Gokul Flanged PP Ball Valve Gokul Flanged PP Ball Valve Gokul Flanged PP Ball Valve

Gokul Flanged PP Ball Valve

8360 INR/Number

Product Details:

  • Size 1/2" to 12"
  • Usage i
  • Color White
  • Channels Intentional & Domestic Market
  • Product Type PP Ball Valve Flange End
  • Connection Flanged
  • Pressure Medium Pressure
  • Click to view more
X

Gokul Flanged PP Ball Valve Price And Quantity

  • 8360.00 - 8360.00 INR/Number
  • 8360 INR/Number
  • 10 Number

Gokul Flanged PP Ball Valve Product Specifications

  • 80 Celsius (oC)
  • Gokul Poly Valves Pvt Ltd
  • Ball
  • Medium Pressure
  • 1/2" To 12"
  • Plastic
  • 150 class
  • PP Ball Valve Flange End
  • industrial and water application
  • Intentional & Domestic Market
  • Flanged
  • Polypropylene (PP)
  • White
  • i
  • Water
  • 1/2" to 12"

Gokul Flanged PP Ball Valve Trade Information

  • Ahmedabad
  • Cash Advance (CA) Cash in Advance (CID) Cheque
  • 10 Number Per Day
  • 1 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Box Packing
  • Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
  • All India
  • ISO & Material Test Certificate

Product Description

Technical Specification

Material Of Construction PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride) Construction 3 piece design, 1 piece stem (spindle), full bore, Teflon seated
Design 3 piece design Test pressure 08 kg./cm2
Max working temp 70 c (consistently) Size Range " 15MM TO 12ïï-315MM
Connection End Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD. Standard As per manufacturers

Material Specification

No. DESCRIPTION QTY. MATERIAL
1) Flanged end 2 PP / HDPE & PVDF
2) Body 1 PP / HDPE & PVDF
3) Ball 1 PP & PVDF
4) Stem/Spindal 1 Polypropylene With M.S. /S.S
5) Seat Ring 2 PTFE (TEFLON)
6) Body"O"Ring 2 Neoprene
7) Stem Seal Ring 1 PTFE (TEFLON)
8) Stem "O" Ring 1 Neoprene
9) Stud, Nut & Washer REQ M.S. Zinc Plated/S.S
10) Nut Cap REQ Polypropylene.
11) Handle 1 M.S. PP Coated.
12) Handle Hex. Pin 1 M.S./ S.S.
13) Handle Cap 1 Polypropylene.
