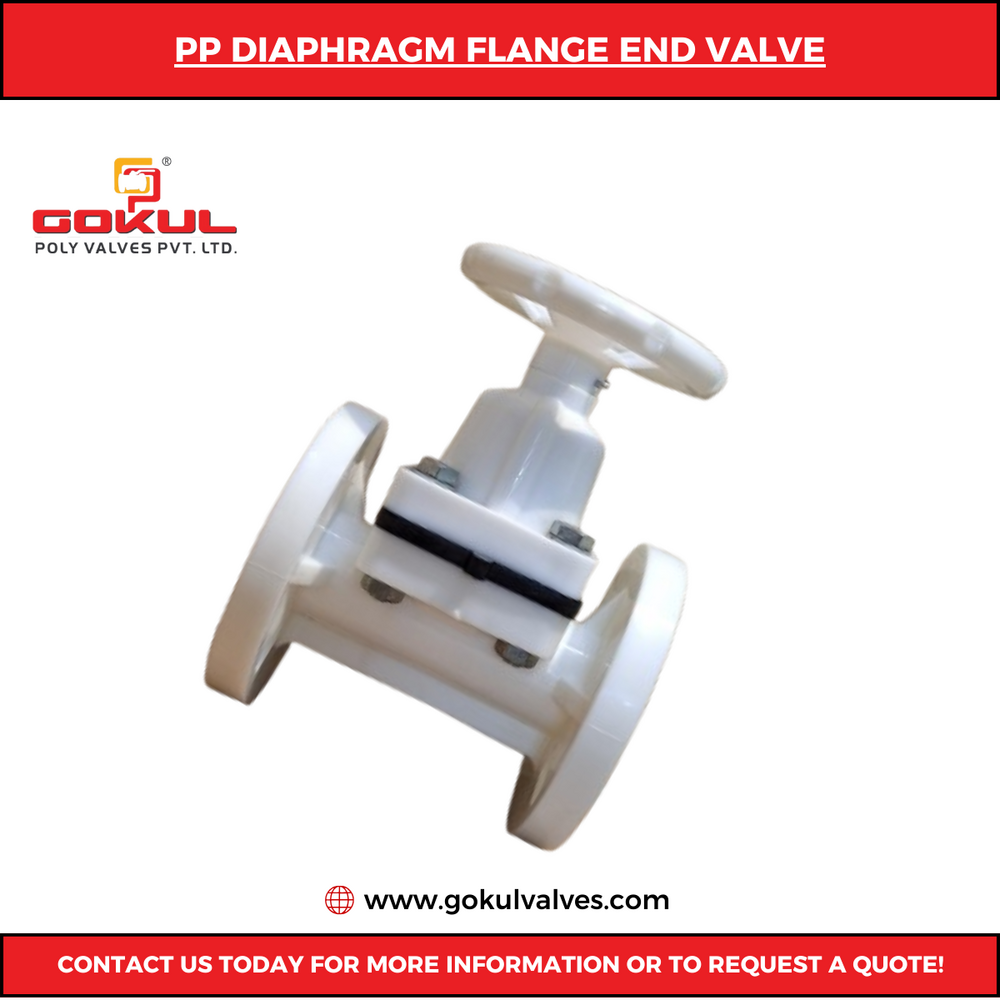

Gokul polypropylene Diaphragm Flange End Valve 1"

Price 461 INR/ Number

Get a Price/Quote

Gokul polypropylene Diaphragm Flange End Valve 1" Specification

Connection
Flanged

Channels
Intentional & Domestic Market

Structure
Ball

Pressure
Medium Pressure

Caliber
Gokul Poly Valves Pvt Ltd

Usage
Industrial & Water Application

Material
Plastic

Size
1"-25MM

Media
Water

Temperature of Media
80 Celsius (oC)

Product Type
PP Diaphragm Valve Flange End

Port Size
1"-25MM

Color
White

Flange
150 class

Finish
Polypropylene (PP)

Application
industrial and water application

Gokul polypropylene Diaphragm Flange End Valve 1" Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About Gokul polypropylene Diaphragm Flange End Valve 1"

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	weir type design,Soft seated, raising stem
Design	2 Piece Design	Connection End	Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range	15MM to 150MM	Test pressure	6 kg./cm2
Max working temp	70 c (consistently)	Standard	As per manufacturer

Material Specification

No.	DESCRIPTION	MATERIAL	QTY.
1)	Body	Polypropylene	1
2)	Bonnet	Polypropylene	1
3)	Hand wheel	Polypropylene	1
4)	Diaphragm	Neoprene Rubber	1
5)	Compressor	PP	1
6)	Stem / Spindel	M.S. /Brass	1
7)	Nut	M.S./ S.S.	1
8)	Pin	M.S./ S.S.	1
9)	Bolt, Nut, Washer	M.S./ S.S.	REQ
10)	Cap	Polypropylene	1

Durable Polypropylene Construction

Engineered from high-quality polypropylene, this valve resists corrosion and chemical damage, ensuring dependable performance in challenging water and industrial environments. The robust design allows the valve to operate consistently under medium pressure, extended temperatures, and frequent use without compromising integrity.

Precision Control for Industrial & Water Applications

The Gokul diaphragm valve provides precise on-off and regulation control of fluid flow. Its ball structure aids efficient movement, while the 150 Class flanged ends make installation straightforward. Ideal for water distribution as well as various industrial processes, this valve offers flexibility and reliability tailored to modern operational needs.

FAQs of Gokul polypropylene Diaphragm Flange End Valve 1":

Q: How does the Gokul polypropylene diaphragm flange end valve function in water and industrial systems?

A: This valve uses a diaphragm and ball mechanism to control the flow of water and industrial fluids effectively. Its polypropylene construction ensures safe operation at temperatures up to 80C and medium pressures, making it suited for rigorous industrial and water supply tasks.

Q: What are the main benefits of using a polypropylene diaphragm valve in corrosive environments?

A: Polypropylene offers exceptional resistance to chemicals and corrosion, minimizing the risk of degradation. This ensures a longer service life and reduced maintenance when compared to traditional metal valves, especially in water treatment and industrial fluid handling.

Q: Where can this valve be installed and what connection does it require?

A: Suitable for both industrial and water application settings, this valve features 1" flanged ends rated at 150 class. It can be installed in pipeline systems that require secure and leak-resistant flanged connections, and is designed for easy integration in diverse operational environments.

Q: When should a diaphragm flange end valve be preferred over other valve types?

A: Choose a diaphragm flange end valve when precise regulation, chemical resistance, and durability are required, particularly in medium-pressure scenarios or where the fluid being handled might cause corrosion or wear to metal valves.

Q: What is the recommended process for installing the Gokul polypropylene valve?

A: Begin by ensuring flange alignment and compatibility with your pipeline system. Position the valve at the designated installation point, secure it with appropriate bolting, and double-check for leak-proof connections. Always follow the manufacturers guidelines for safe installation and startup.

Q: How is this valve beneficial for both domestic and export markets?

A: Its versatile design and compliance with international standards make it suitable for a broad range of applications, from local water supply systems to industrial operations abroad. As a product from a reputed Indian exporter and manufacturer, it ensures reliability across varied market requirements.
