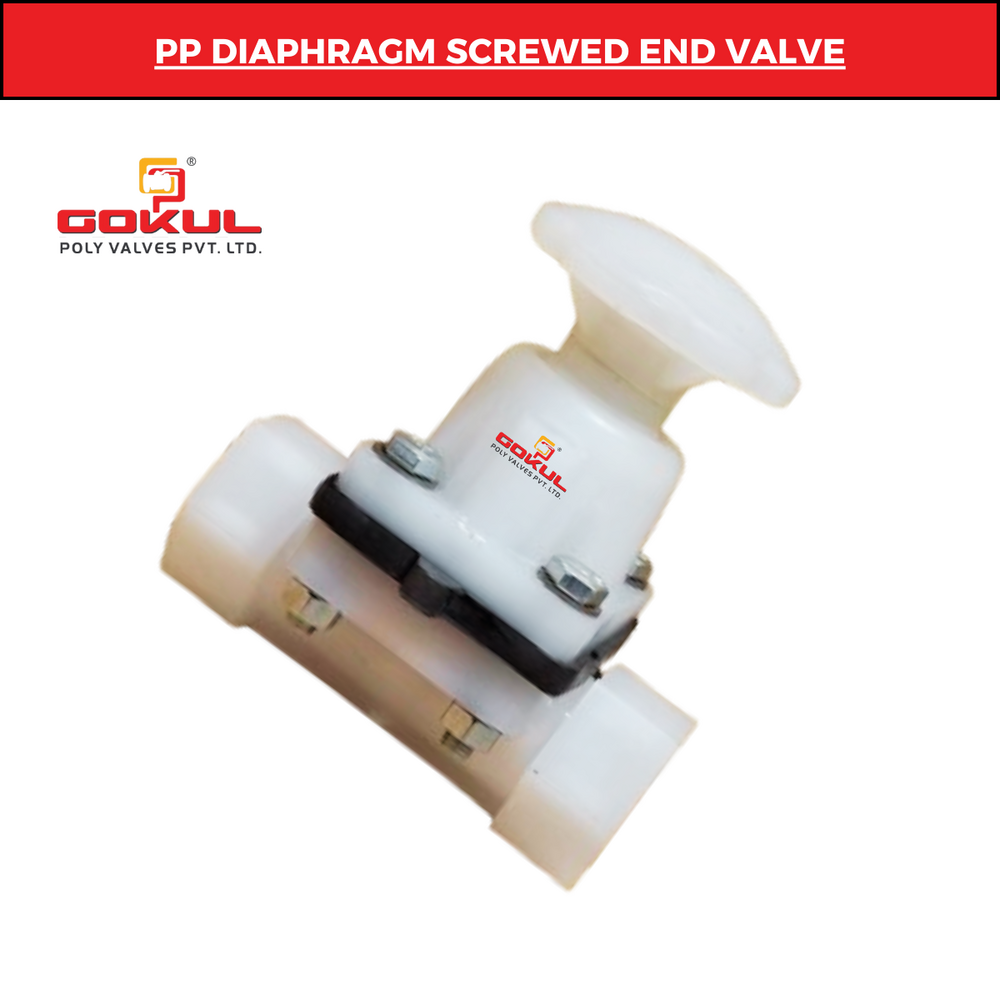

Gokul Polypropylene Diaphragm Threaded Valve

Price 410 INR/ Number

Get a Price/Quote

Gokul Polypropylene Diaphragm Threaded Valve Specification

  • Channels
  • Intentional & Domestic Market
  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Structure
  • Ball
  • Connection
  • Screw End (BSP Threaded)
  • Pressure
  • Medium Pressure
  • Material
  • Plastic
  • Usage
  • Industrial & Water Application
  • Size
  • 1/2" To 1"
  • Media
  • Water
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Diaphragm Valve Screw End
  • Port Size
  • 1/2" To 1"
  • Flange
  • BSP Threaded
  • Color
  • White
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Gokul Polypropylene Diaphragm Threaded Valve Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Gokul Polypropylene Diaphragm Threaded Valve

Technical Specification Material Of Construction PP (Polypropylene) Construction weir type design,Soft seated, raising stem Design 2 Piece Design Connection End Screw end (BSP thread) Size Range 15MM to 150MM Test pressure 6 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Body Polypropylene 1 2) Bonnet Polypropylene 1 3) Hand wheel Polypropylene 1 4) Diaphragm Neoprene Rubber 1 5) Compressor PP 1 6) Stem / Spindel M.S. /Brass 1 7) Nut M.S./ S.S. 1 8) Pin M.S./ S.S. 1 9) Bolt, Nut, Washer M.S./ S.S. REQ 10) Cap Polypropylene 1

FAQs of Gokul Polypropylene Diaphragm Threaded Valve:


Q: What is the port size range for the Gokul Polypropylene Diaphragm Threaded Valve?

A: The Gokul Polypropylene Diaphragm Threaded Valve has a port size range of 1/2" to 1".

Q: What type of connection does this valve use?

A: The valve uses a screw end connection with BSP threading.

Q: What is the maximum temperature of media the valve can handle?

A: The Gokul Polypropylene Diaphragm Threaded Valve can handle media temperatures up to 80C (Celsius).

Q: What material is the valve made of?

A: The valve is made of plastic, specifically polypropylene (PP).

Q: For what applications can this valve be used?

A: The valve is suitable for both industrial and water applications.

Q: What is the pressure rating of the Gokul Polypropylene Diaphragm Threaded Valve?

A: The valve is designed for medium-pressure applications.

Q: What market channels is this valve intended for?

A: The valve is intended for both intentional and domestic markets.

Gokul Polypropylene Diaphragm Threaded Valve
Gokul Polypropylene Diaphragm Threaded Valve
Gokul Polypropylene Diaphragm Threaded Valve
Gokul Polypropylene Diaphragm Threaded Valve
Gokul Polypropylene Diaphragm Threaded Valve
Gokul Polypropylene Diaphragm Threaded Valve
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Ball Products Category

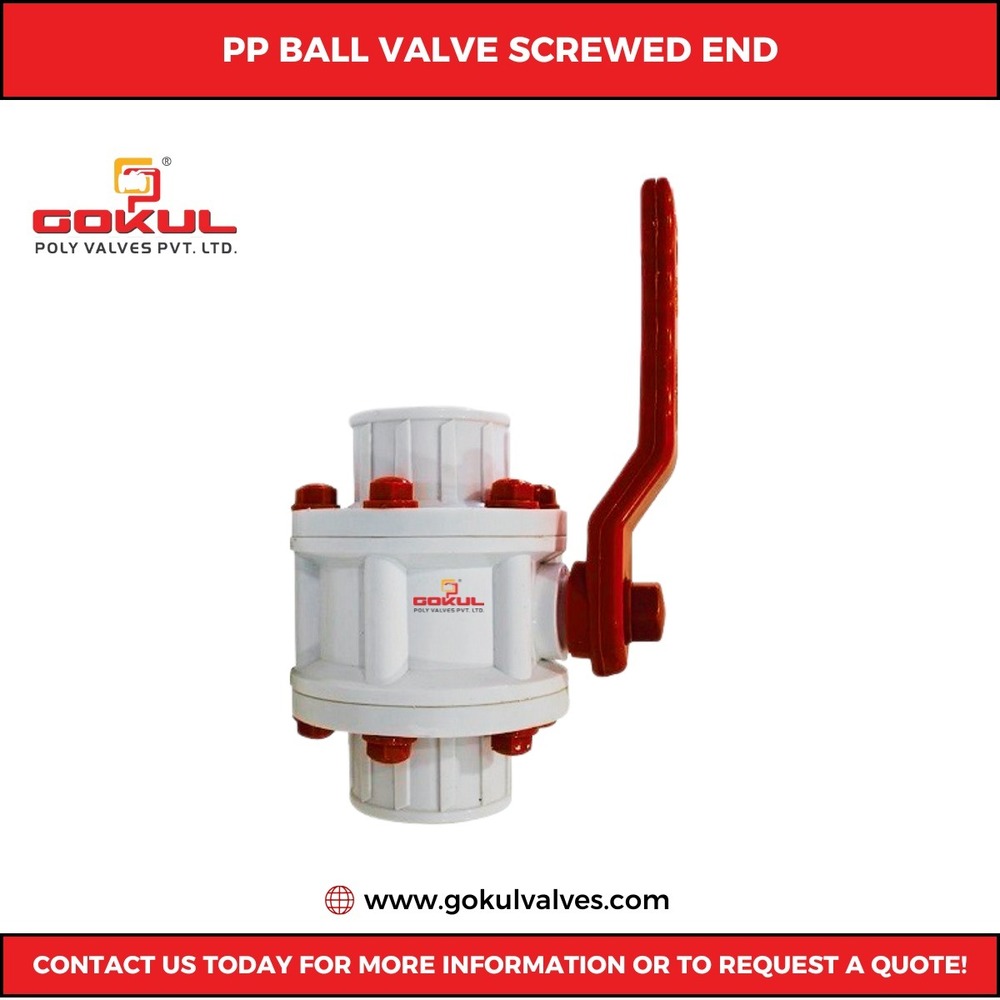

Gokul Screw End PP Ball Valve
